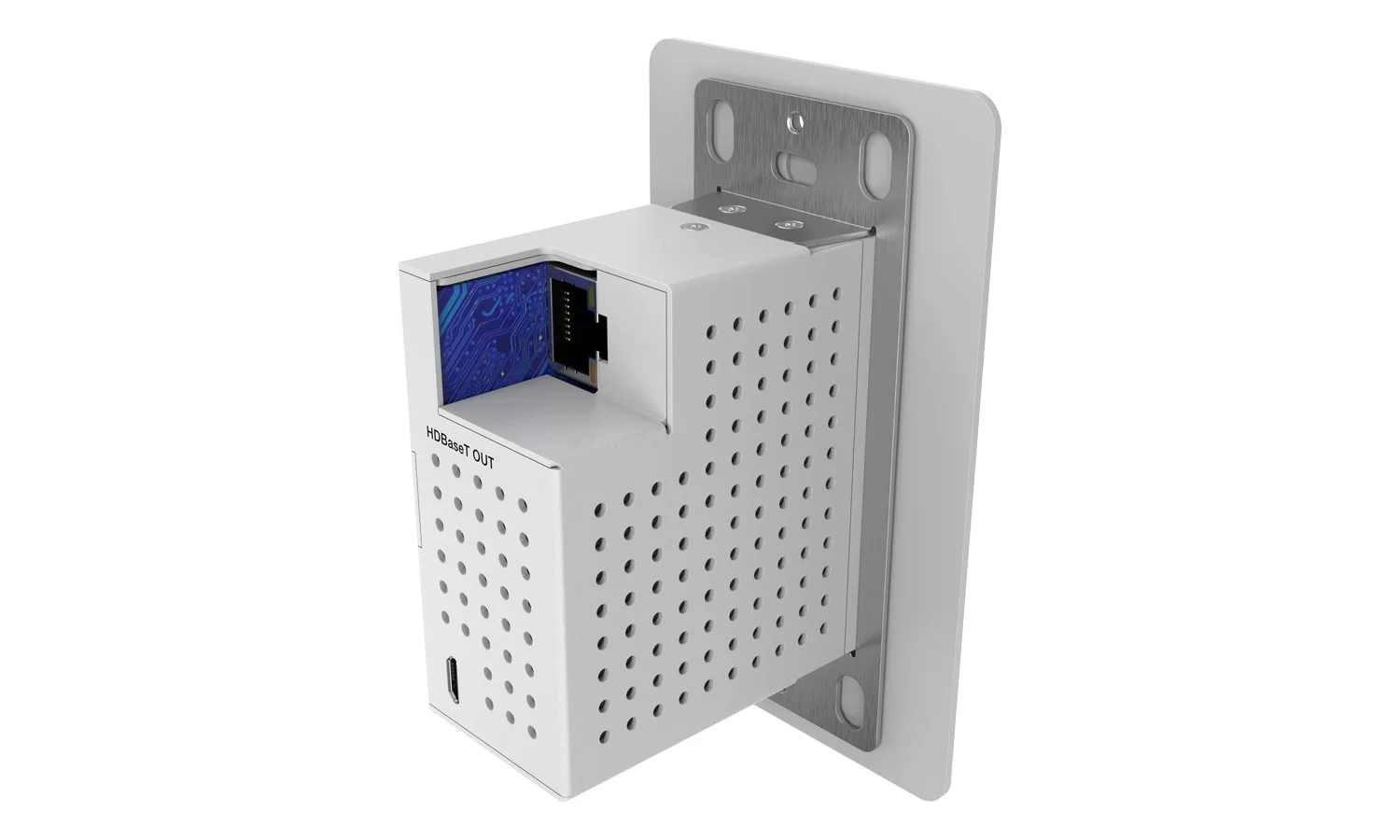

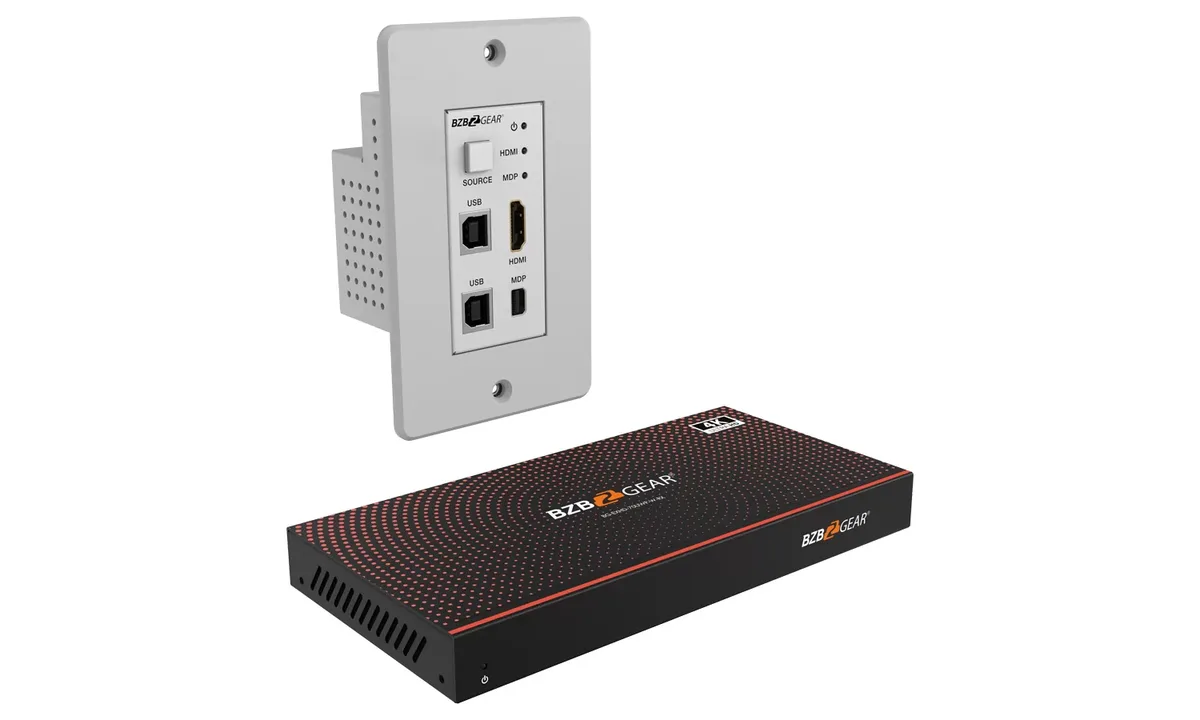

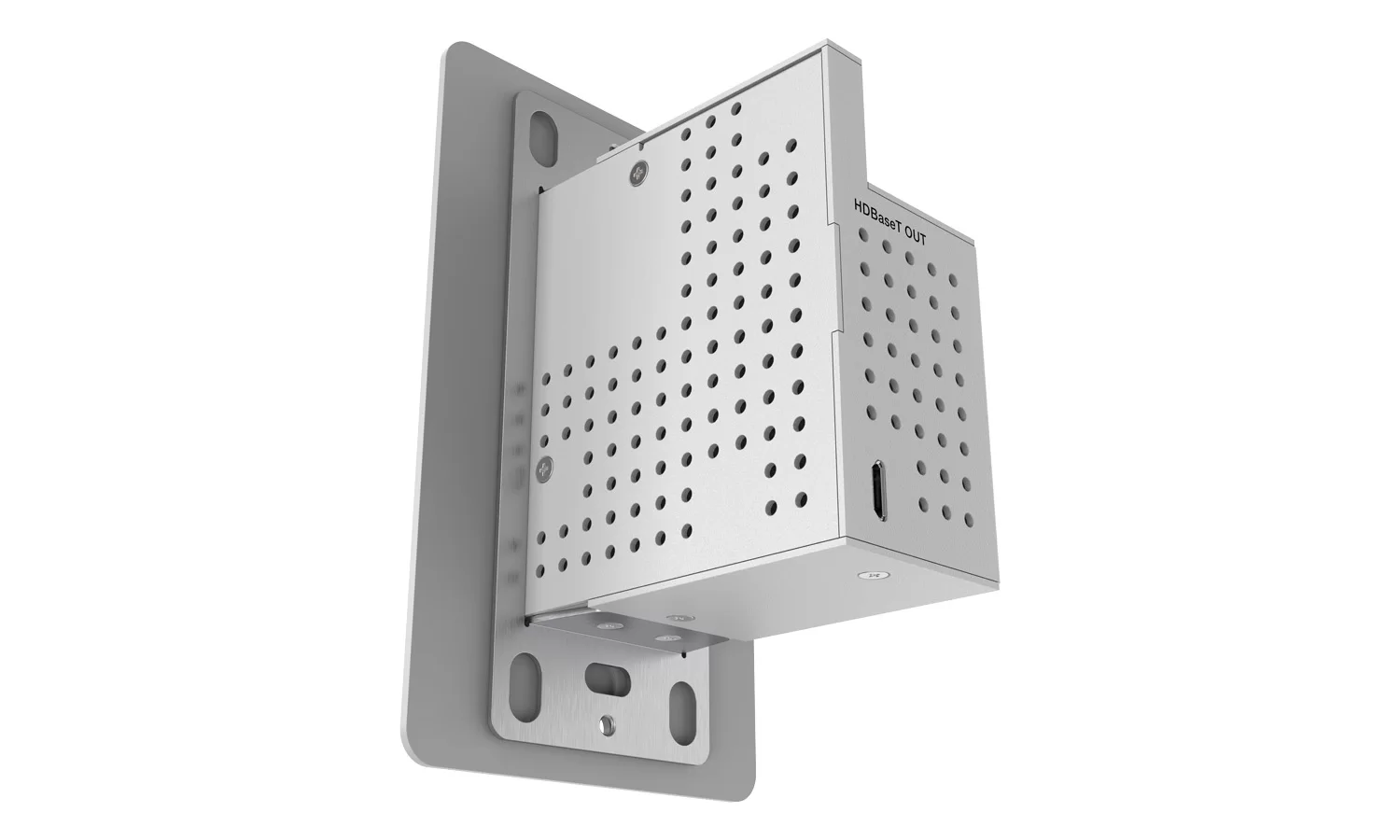

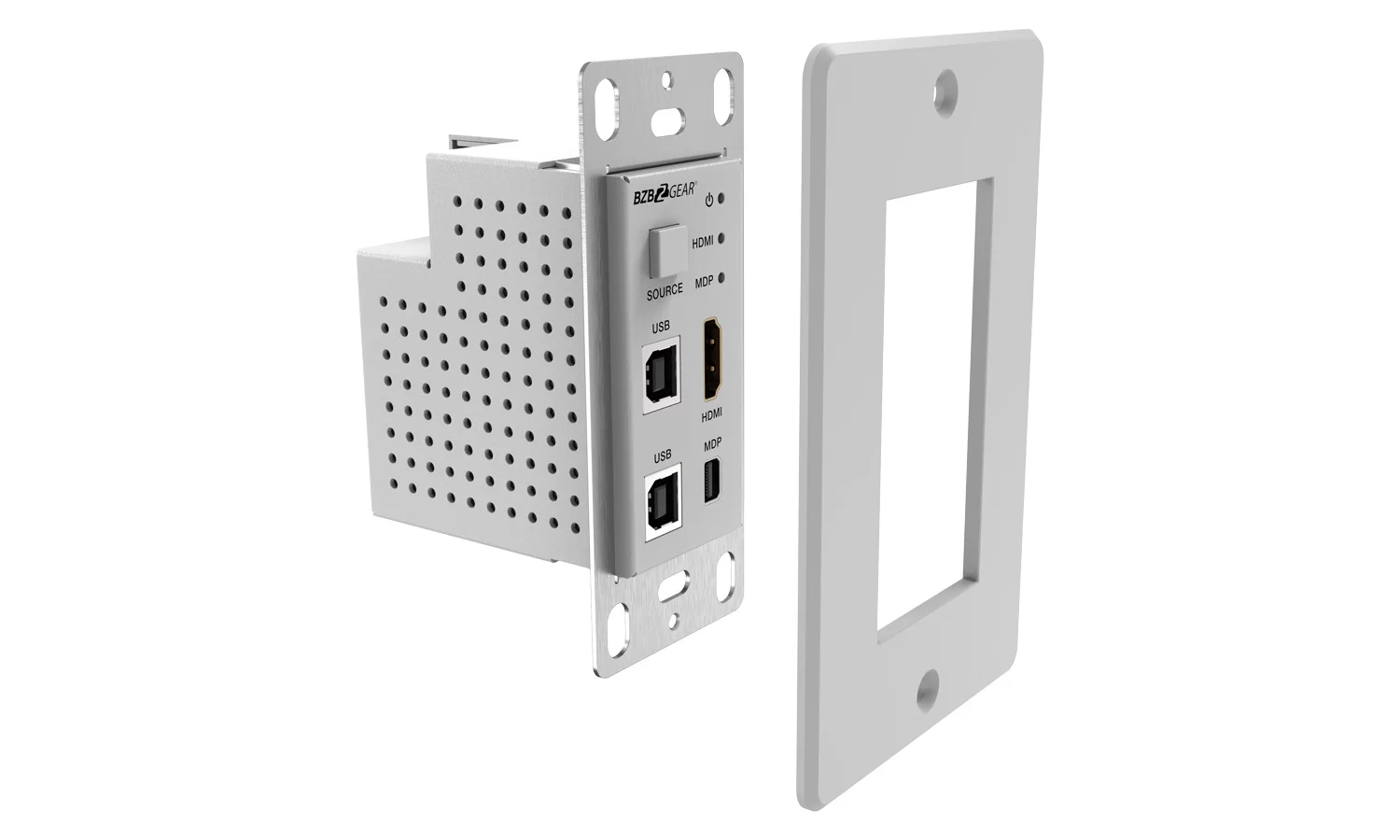

BZBGear BG-EXHD-70UWP-W HDMI, Mini DisplayPort and KVM Wall Plate HDBaseT Kit

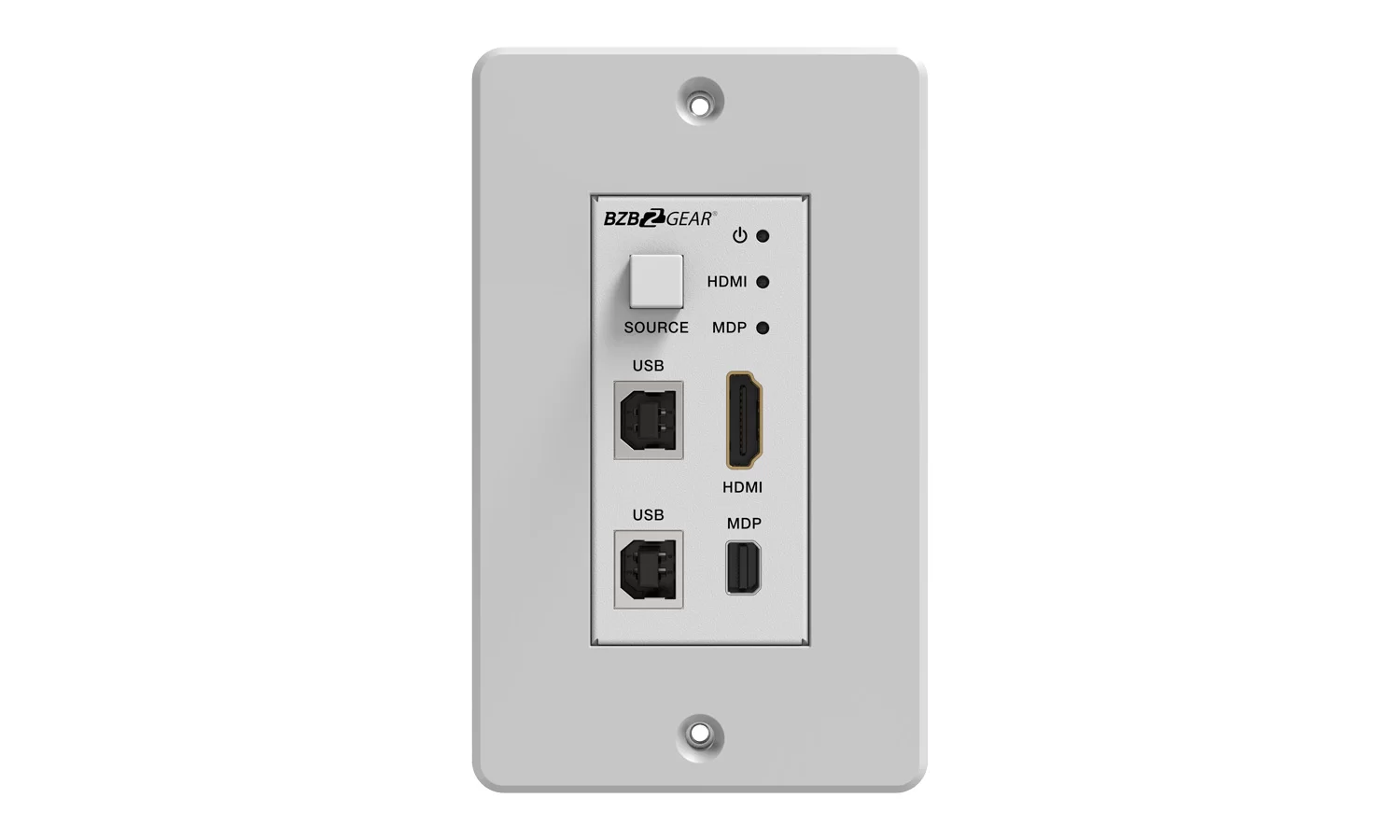

The BG-EXHD-70UWP-W is the KVM version of the mini DisplayPort wall plate kit. Alongside the HDMI and mini DP inputs the plate has two USB-B ports, so a room computer can be operated from a keyboard and mouse plugged in at the receiver end.

Video reaches 70 m at 1080p over Cat6, Cat6a or Cat7 and supports 4096x2160 and 3840x2160 at up to 60 Hz on 18 Gbps, HDCP 2.2. HDR10 and HDR10+ pass through, along with Dolby Atmos, TrueHD and DTS:X. The front plate is white.

HDMI Compliance	HDMI 2.0b, DisplayPort 1.2a
HDCP Compliance	HDCP 2.2
Video Bandwidth	18 Gbps
Video Resolution	4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Transmission Distance	Max distance (1080p) : 230ft / 70m over CAT6/6a/7 Max distance (UHD/4K): 131ft / 40m over CAT6/6a/7
HDMI Audio Formats	Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
