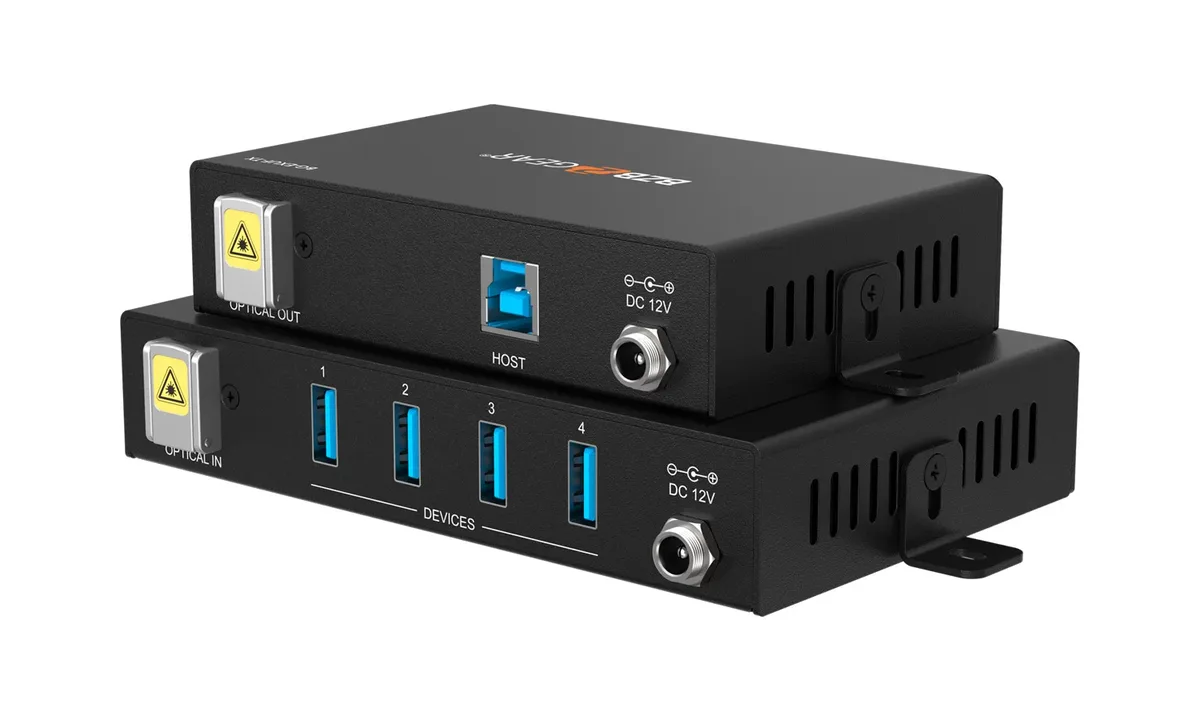

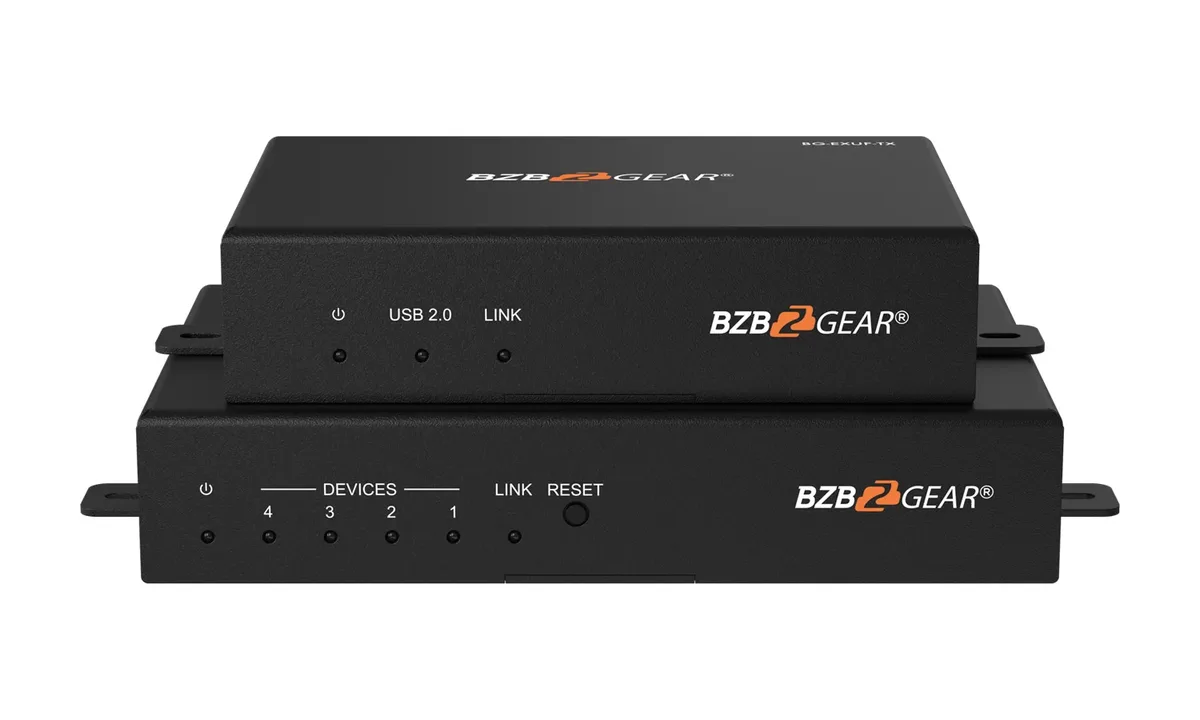

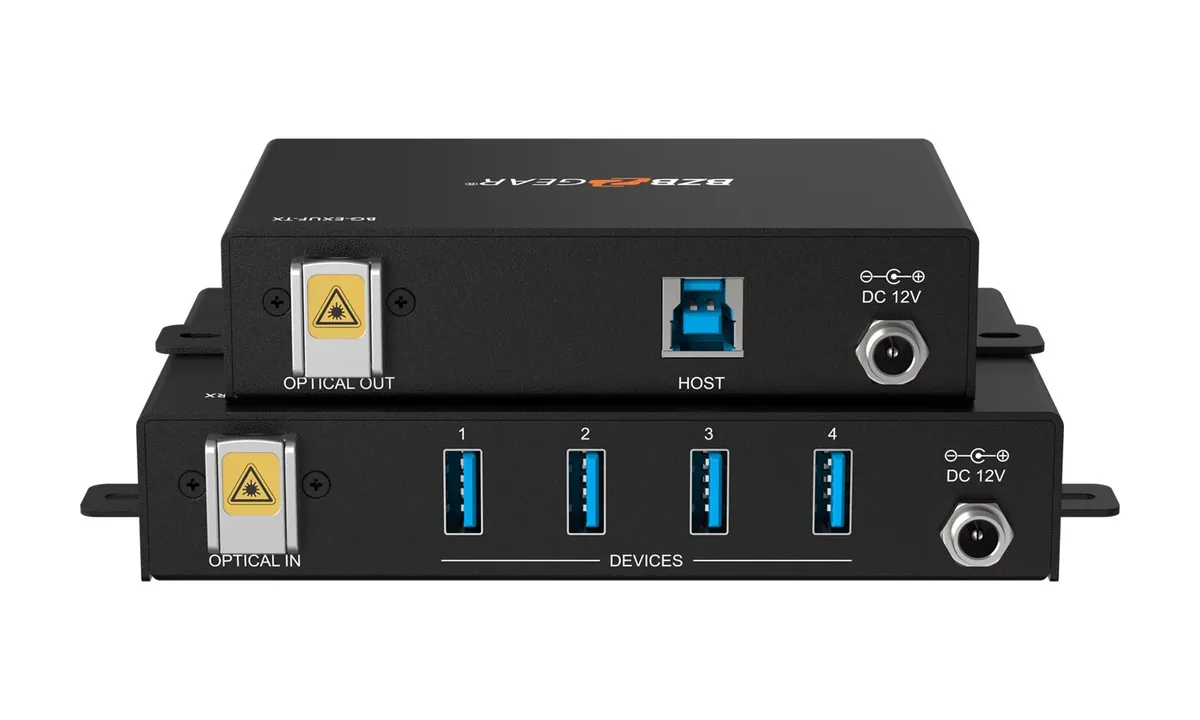

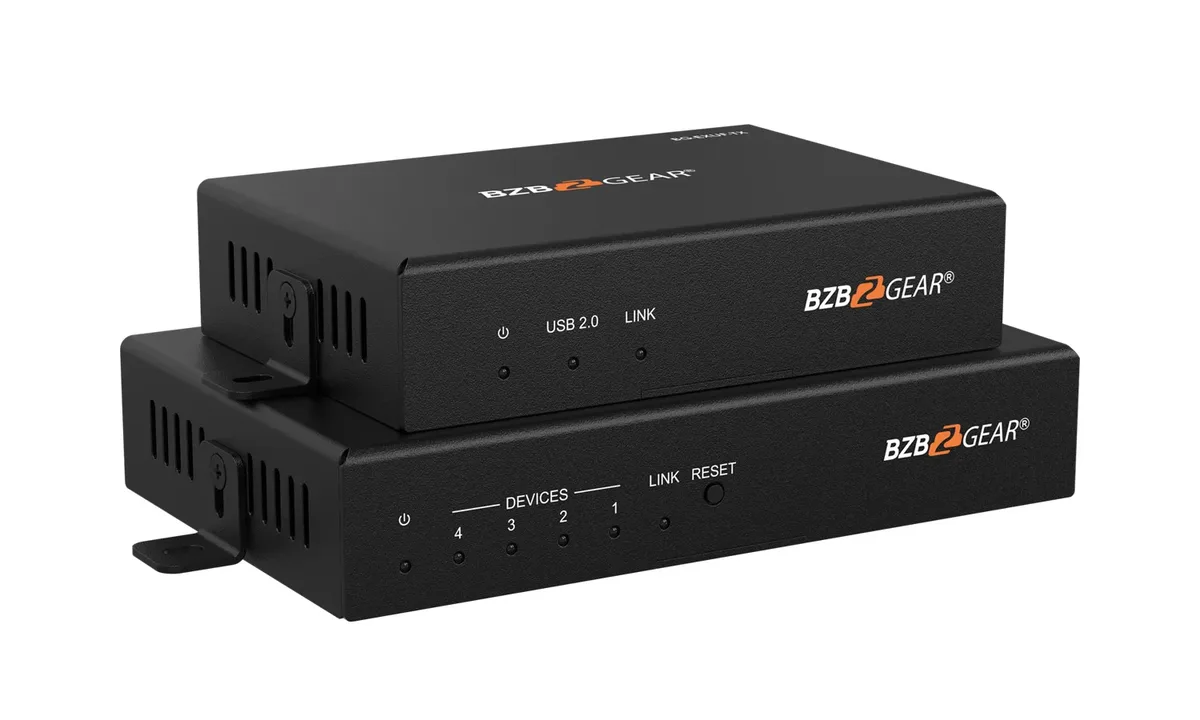

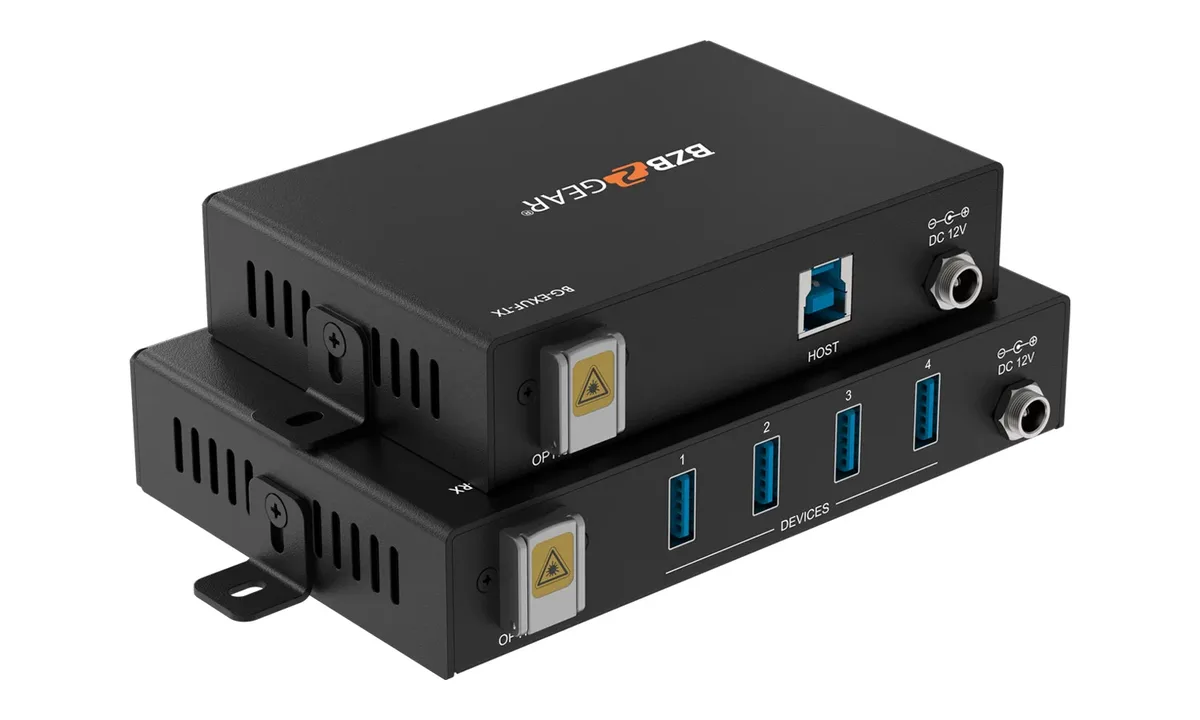

BZBGear BG-EXUF 4-Port USB Extender over Fiber

The BG-EXUF extends USB over single-mode or multi-mode fiber: USB 3.1 Gen 1 at 5 Gbps to 100 m, or USB 2.0 and 1.1 out to 10 km on single-mode. The remote unit is a four-port hub, so four devices go out on one fiber run without a separate hub at the far end.

Fiber removes electromagnetic interference from the equation, which is why this is the extender for a factory floor, a broadcast plant or a hospital rather than a copper solution. No drivers are needed, the power connectors lock so a cable cannot be knocked out, and both chassis are metal with mounting holes for a permanent install.

Power SupplyExternal DC 12V
Dimensions5.3in x 3in x 1in [135mm x 75mm x 26mm]
USB 3.1 Gen1Single-mode fiber or OM3 multi-mode fiber: Non-real-time transmission: 984ft (300m) Real-time transmission: 328ft (100m)
USB 2.0/1.1Single-mode fiber: Non-real-time transmission: 6.2mi (10km) Real-time transmission: 3.7mi (6km) OM3 multi-mode fiber: 1640ft (500m)
USB 2.0480Mbps
USB 1.112Mbps
USB Interface1x USB 3.0 type-B male connector
Fiber Interface1x LC
Go LONG!!! USB 3.1 Fiber Extender with Super Fast Transfer Speeds - BG-EXUF
