BZBGear BG-EXHD-50UWP-W HDMI and Mini DisplayPort Wall Plate Extender Kit

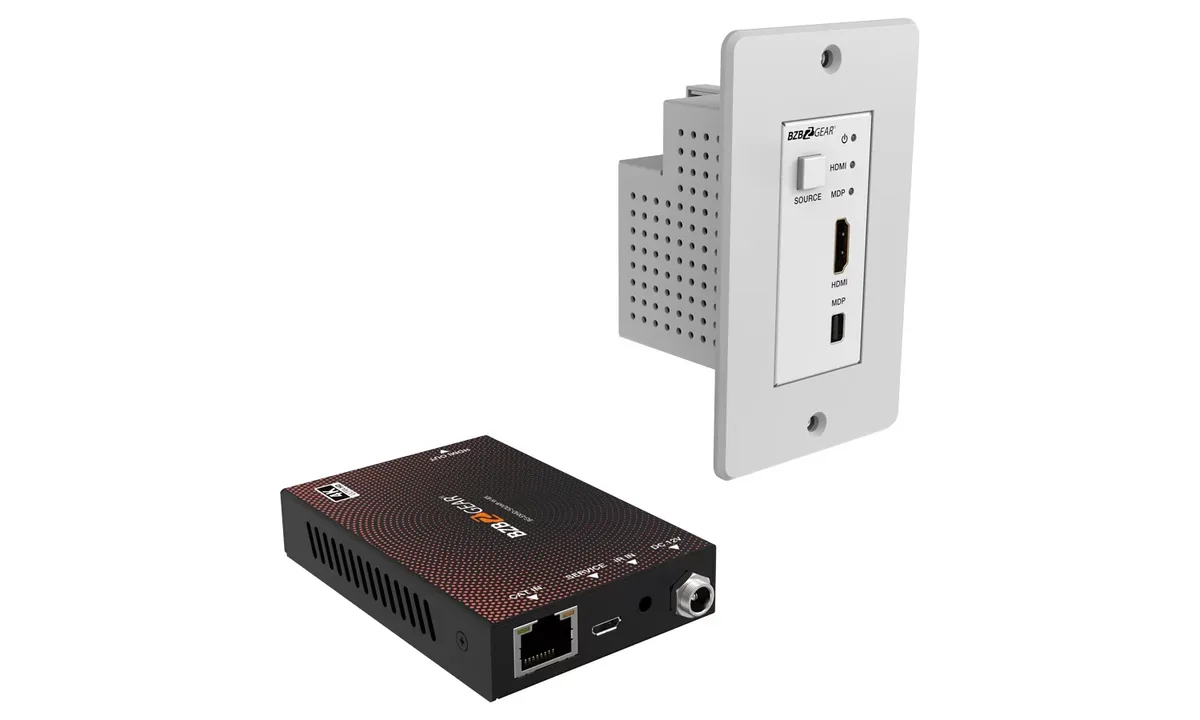

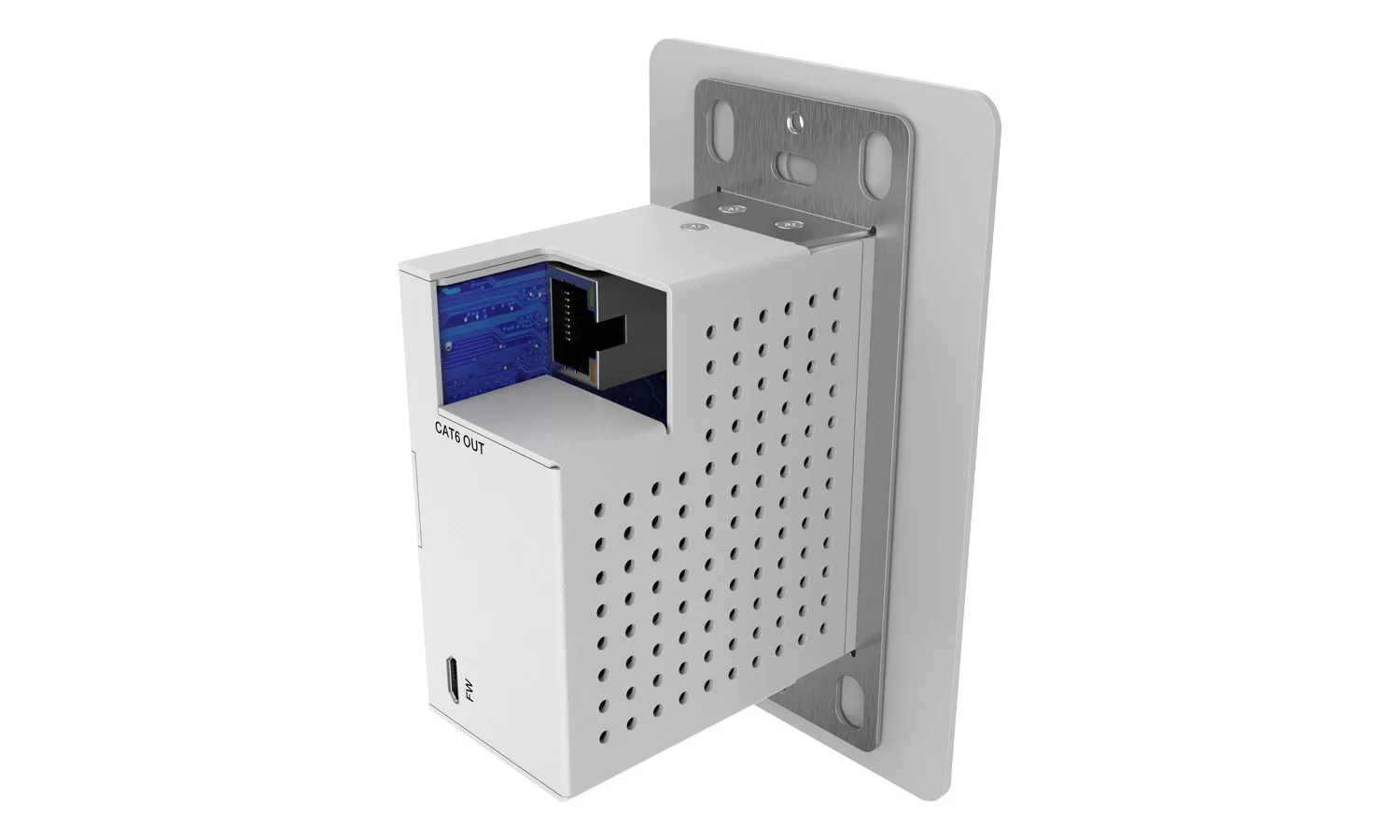

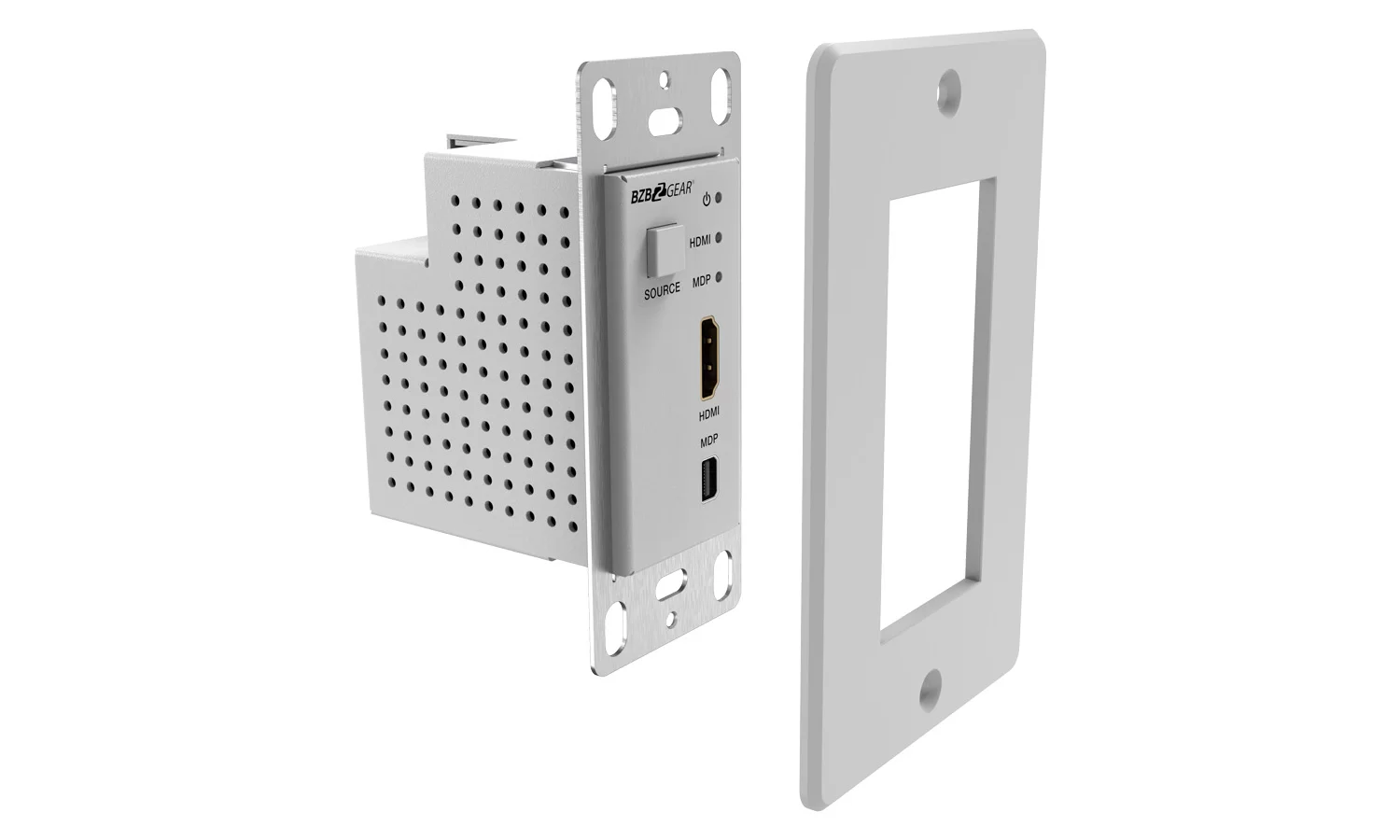

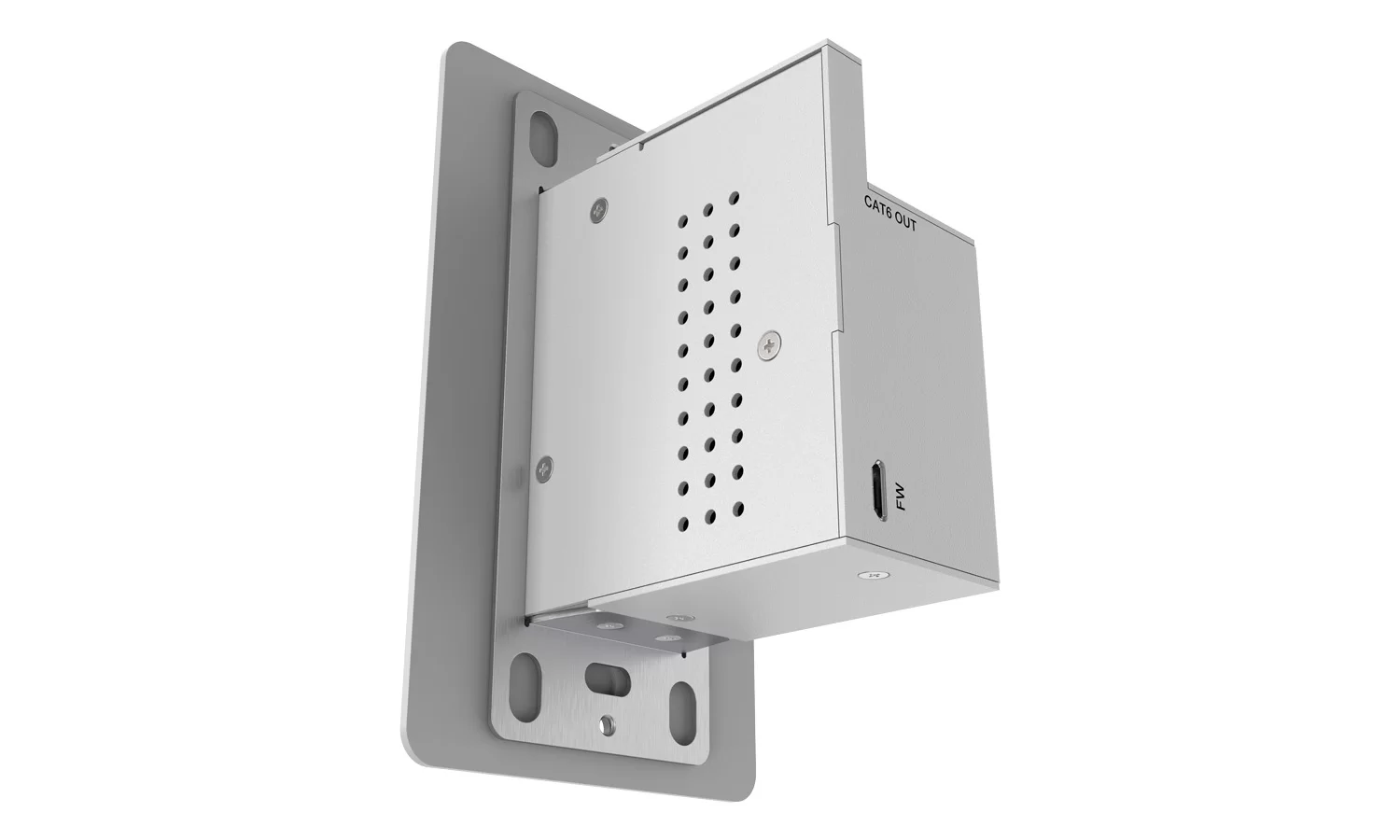

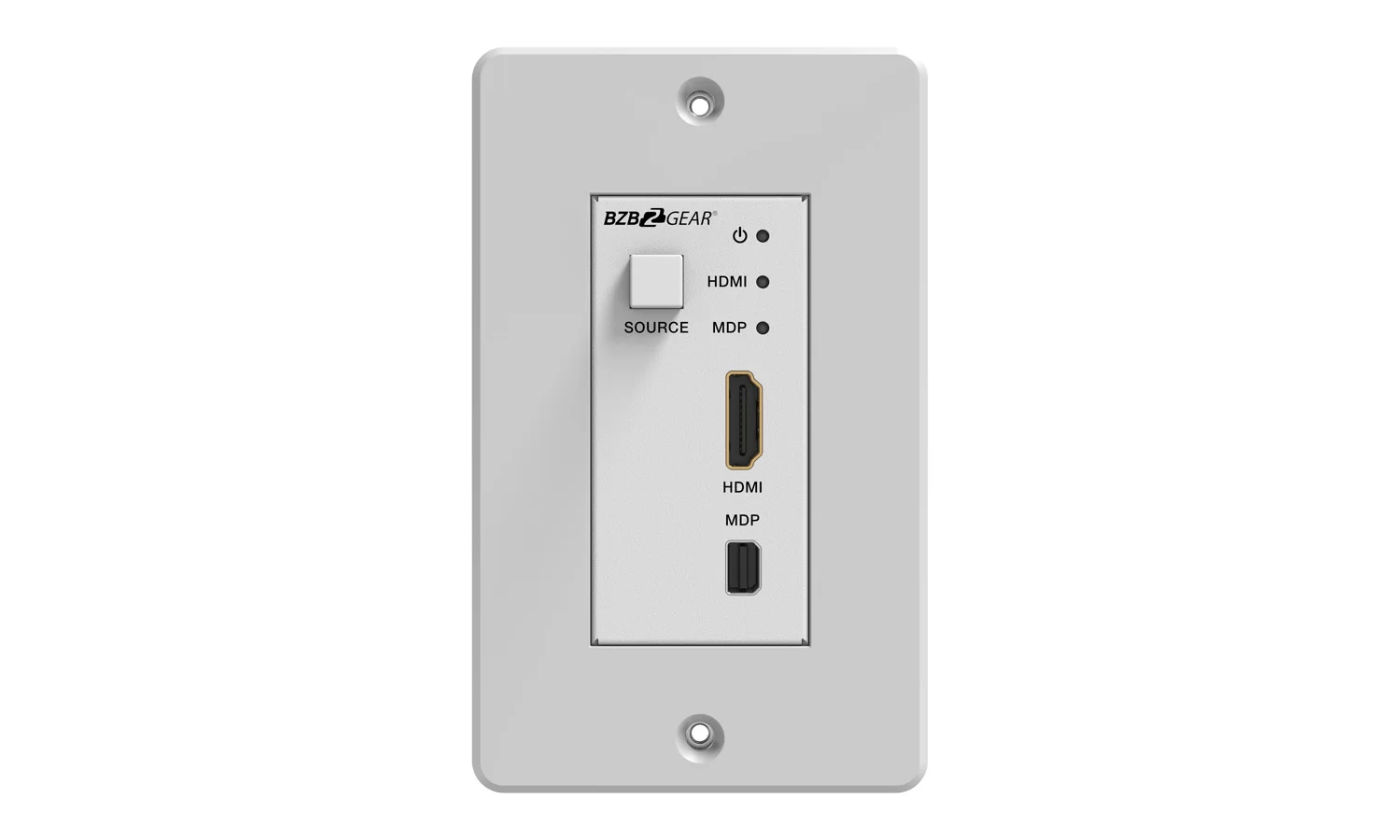

The BG-EXHD-50UWP-W is the mini DisplayPort version of the 50 m wall plate kit. The one-gang Decora-style plate takes an HDMI input and a mini DP 1.2a input, and the included receiver puts HDMI out at the display end over Cat5e or Cat6.

Reach is 50 m at 4K24 and further at lower resolutions, with 18 Gbps on the HDMI side and 5.4 Gbps on DisplayPort. HDR is supported and the HDMI audio formats pass through untouched. Both units are in metal enclosures. It is the kit to specify when the room's laptops are on mini DisplayPort rather than USB-C.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	DP: 5.4 Gbps HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Transmission Distance	Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Depth	8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz)
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
