BZBGear BG-EXHD-70UCWP-W HDMI and Mini DisplayPort Wall Plate HDBaseT Kit with RS-232

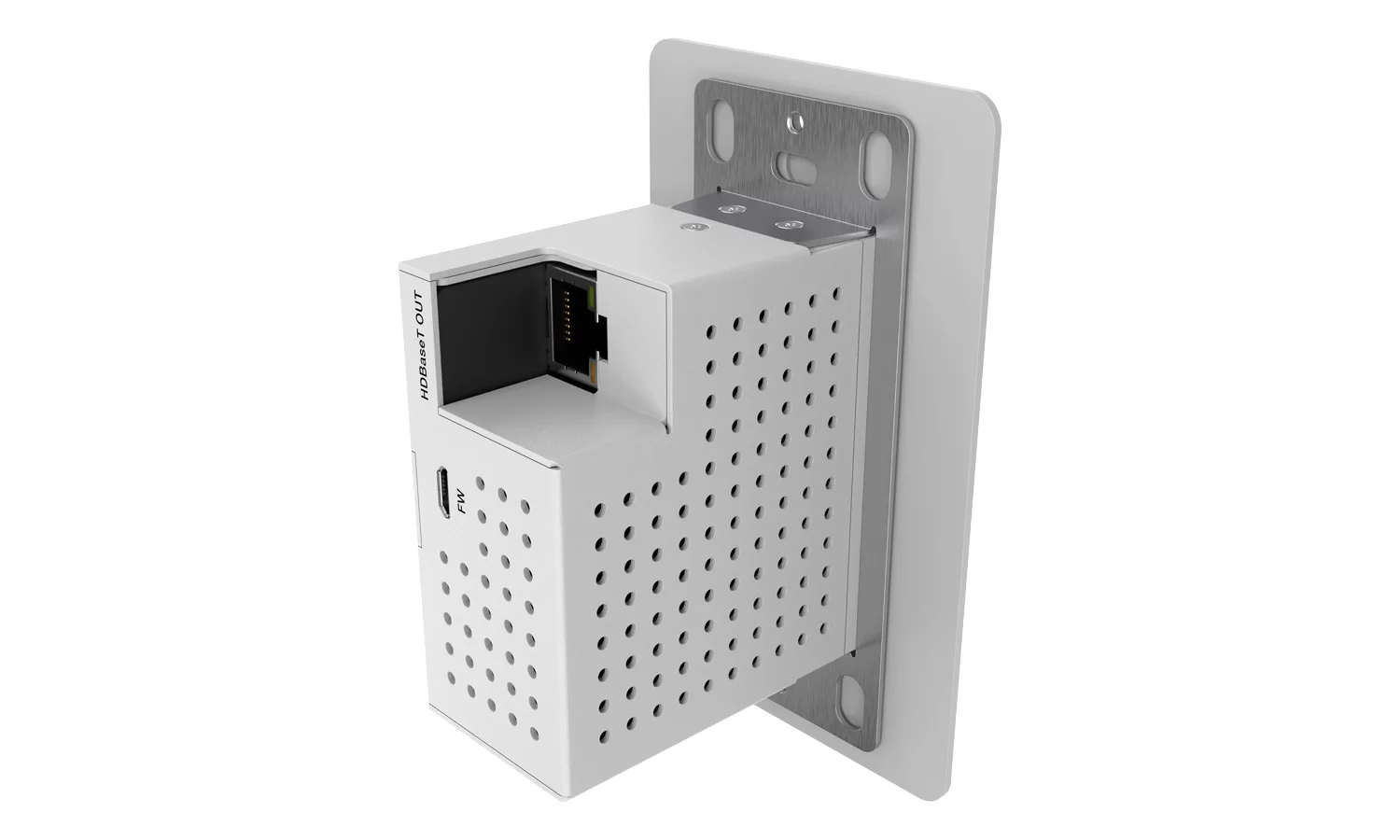

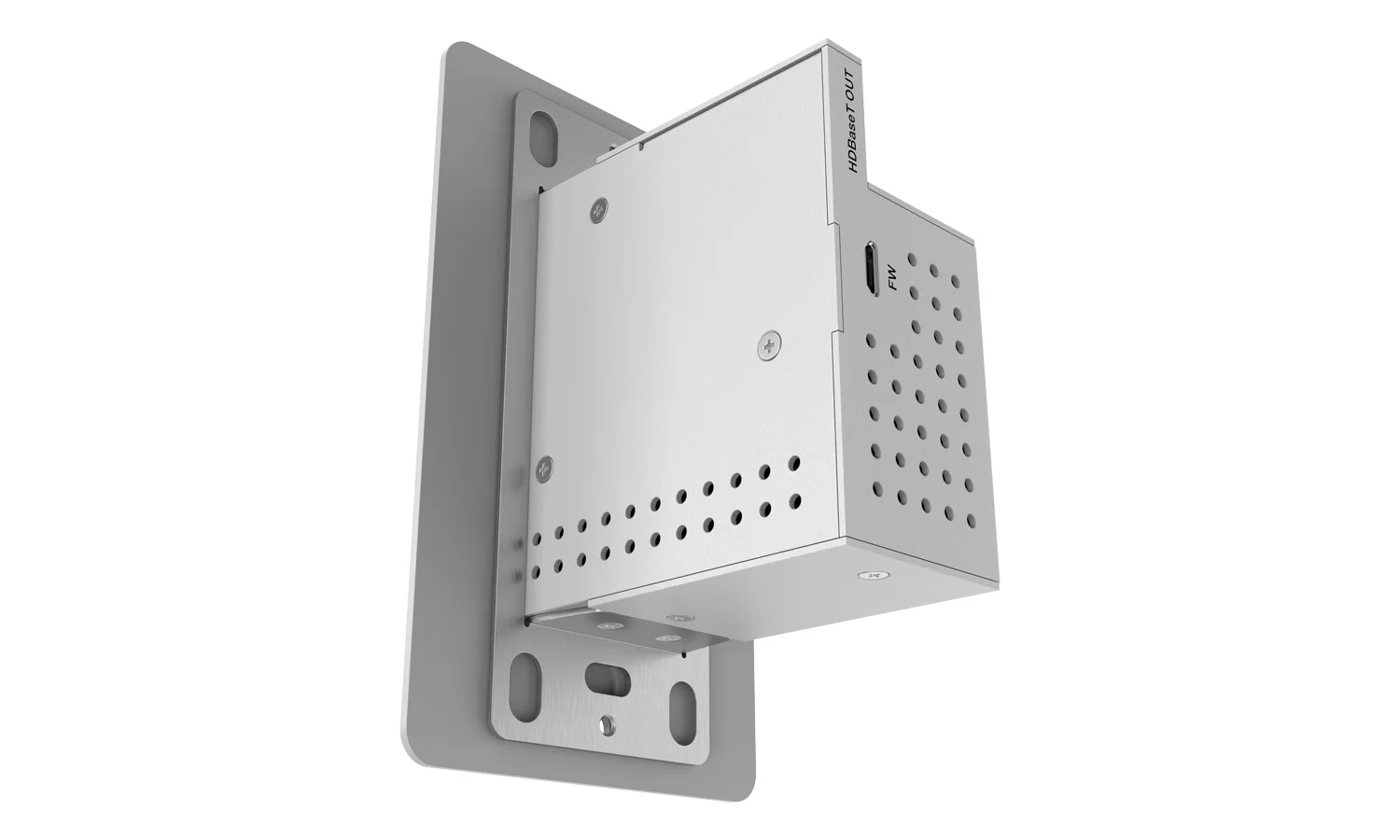

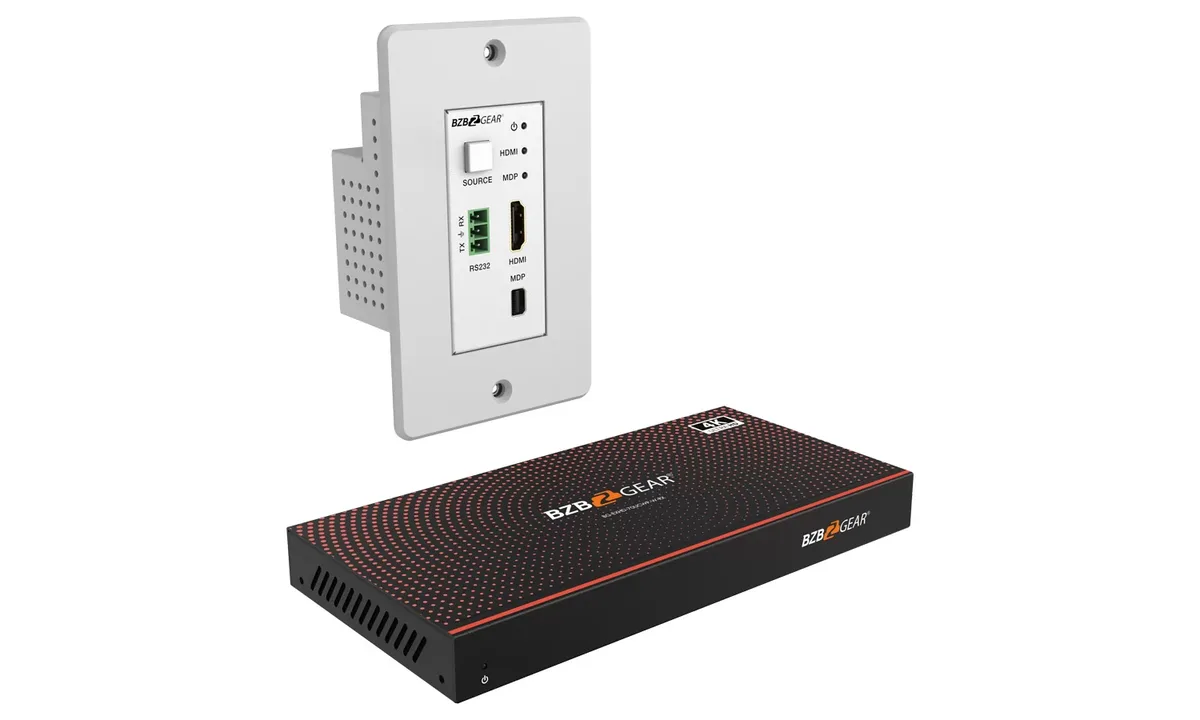

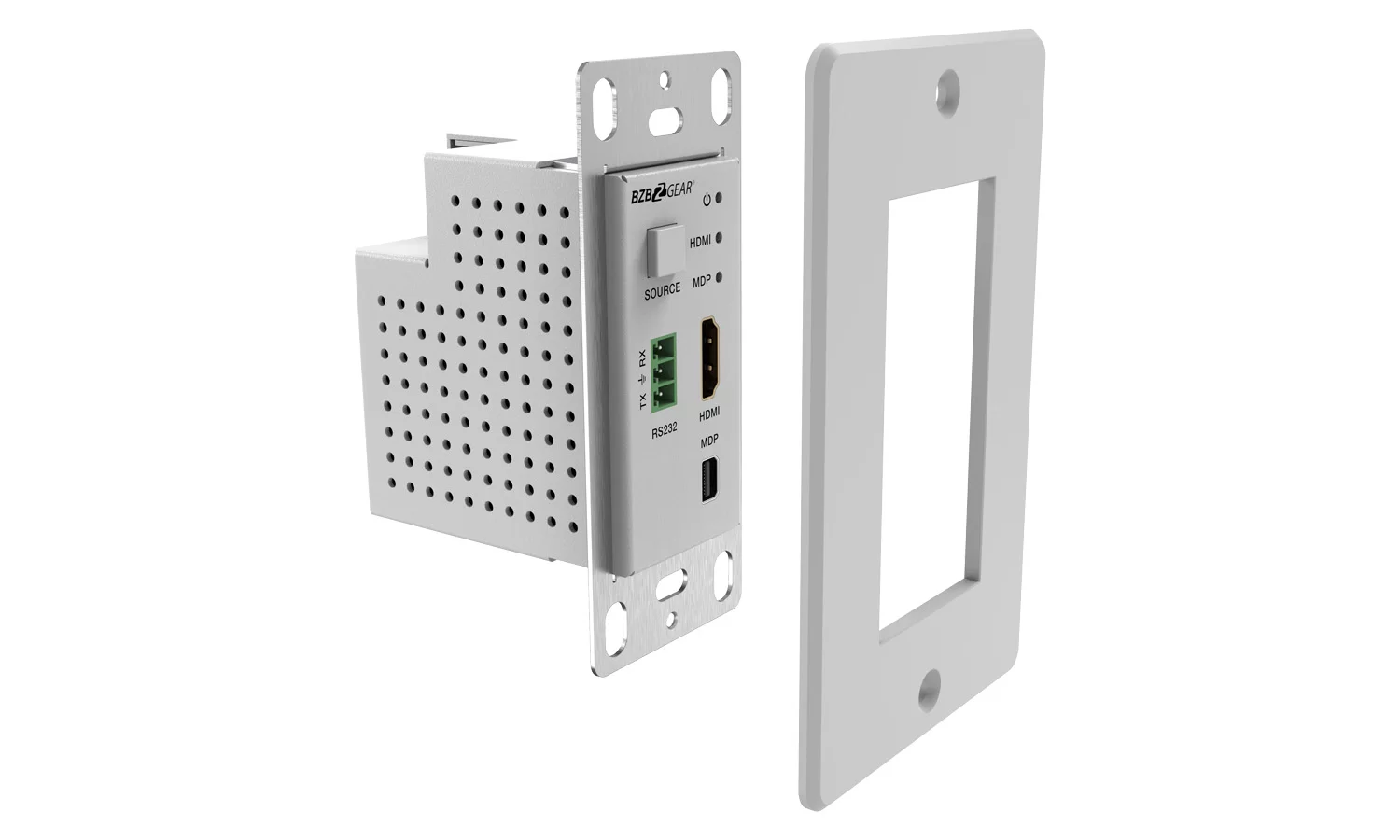

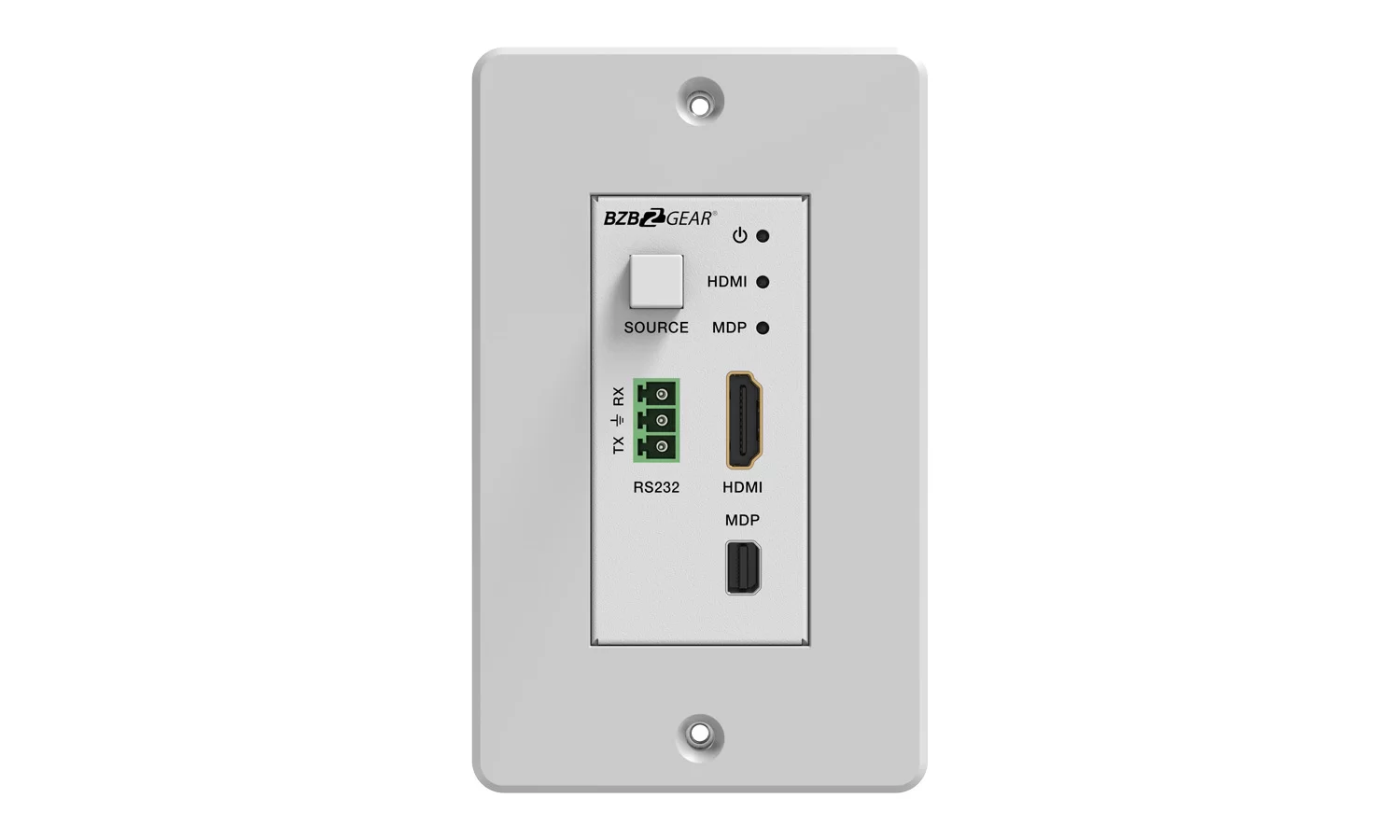

The BG-EXHD-70UCWP-W pairs a Decora-style wall plate carrying HDMI and mini DisplayPort inputs with an HDBaseT receiver, sending 4K up to 70 m over Cat6, Cat6a or Cat7.

Bi-directional RS-232 passes through for up to 40 m so a control system can reach the display, and the plate can take its power from the receiver over the same cable. Video bandwidth is 18 Gbps on HDMI and 5.4 Gbps on DisplayPort 1.2a, with HDR and the full HDMI audio set carried through.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	DP: 5.4 Gbps HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Transmission Distance	Max distance (1080P) : 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Depth	8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz)
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
