BZBGear BG-EXH-50UWP-W HDMI and USB-C Wall Plate Extender Kit

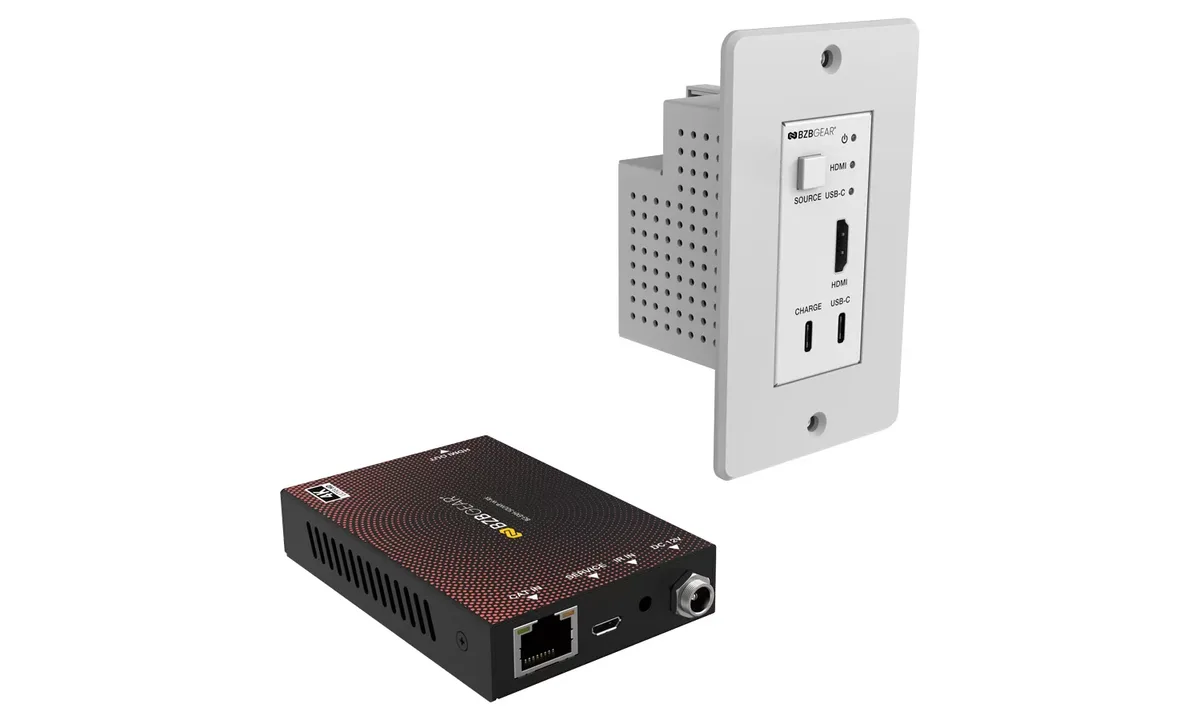

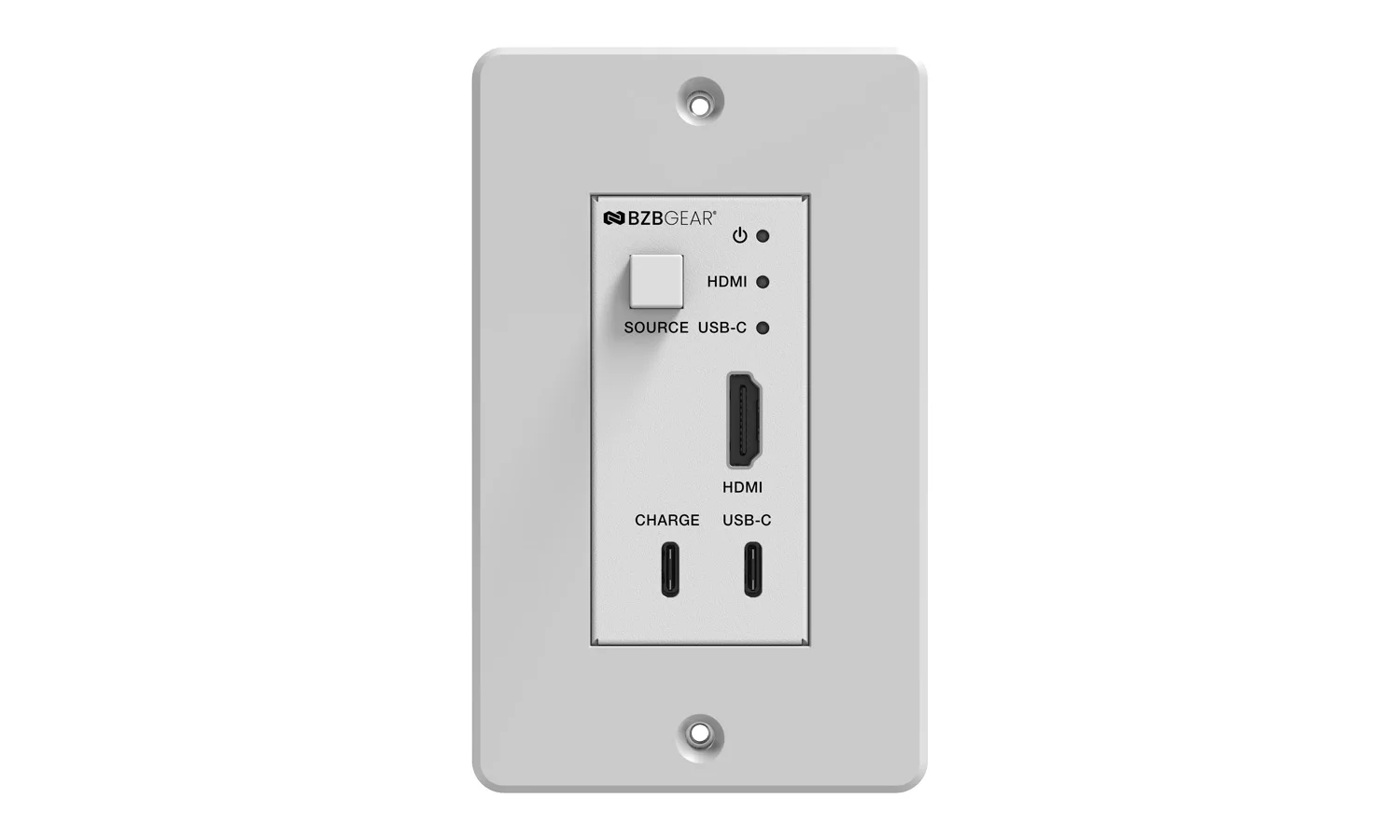

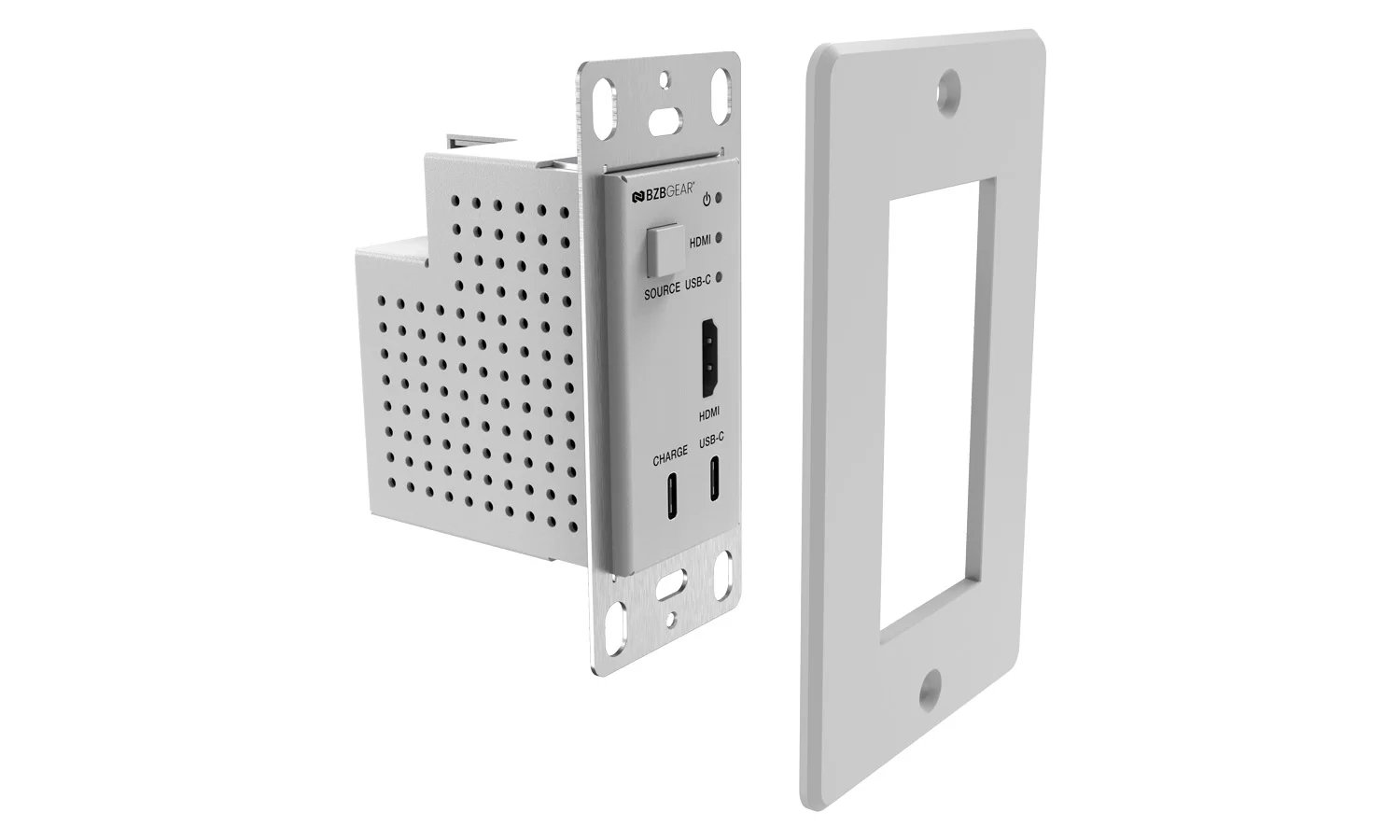

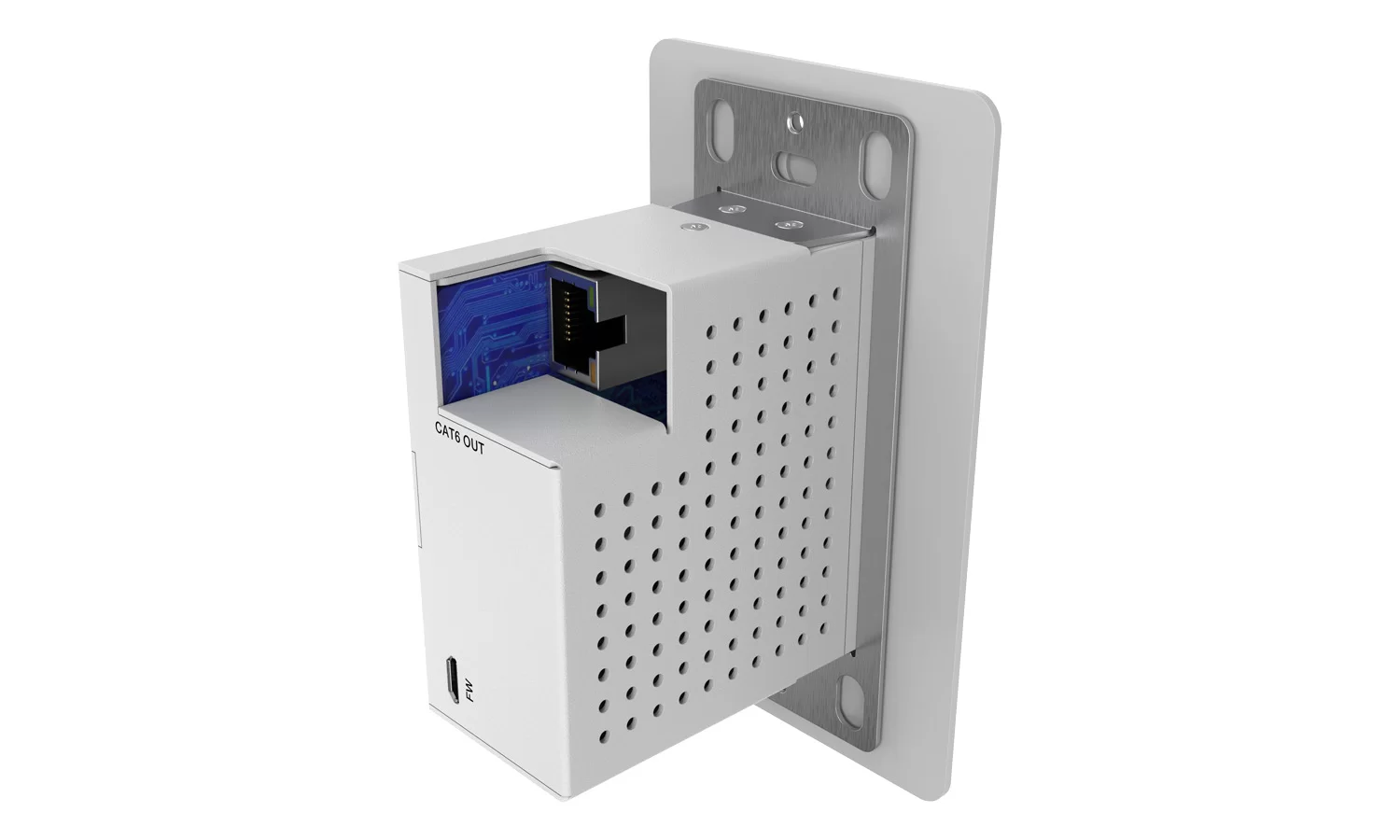

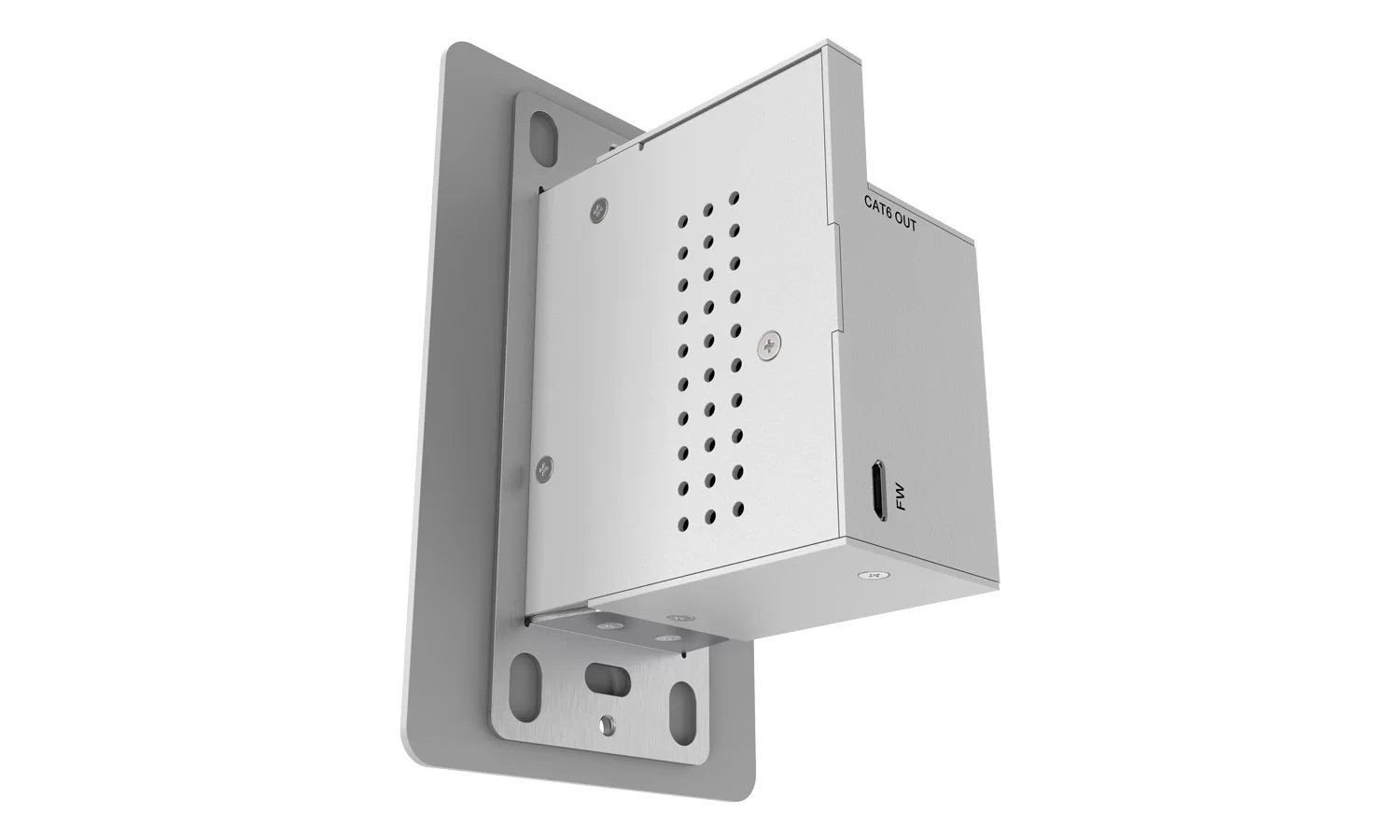

The BG-EXH-50UWP-W puts the room's inputs on the wall instead of on the table: a one-gang Decora-style plate with an HDMI input and a USB-C input, switching between them automatically or manually and sending the result to the included receiver over Cat5e or Cat6.

Reach is 50 m at 4K24 and further at lower resolutions, on 18 Gbps for HDMI and 5.4 Gbps for USB-C in DisplayPort 1.2a Alt Mode. HDR is supported, and the HDMI audio formats including Dolby TrueHD and DTS-HD Master Audio pass through. Both halves are in metal enclosures.

HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	USB-C: 5.4 Gbps HDMI: 18 Gbps
Video Resolution	480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz
Transmission Distance	Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6
HDMI Audio Formats	LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Color Depth	8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz)
Color Space	RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
