BZBGear BG-EXH-8K150C 8K HDBaseT Long Range Extender

The EXH-8K150C is the long-reach HDMI 2.1 extender: 150 m at 1080p, 120 m at 4K60 and 90 m at 8K30 over ordinary Cat6. That is the distance that gets a signal across a school building or an arena concourse without an intermediate rack.

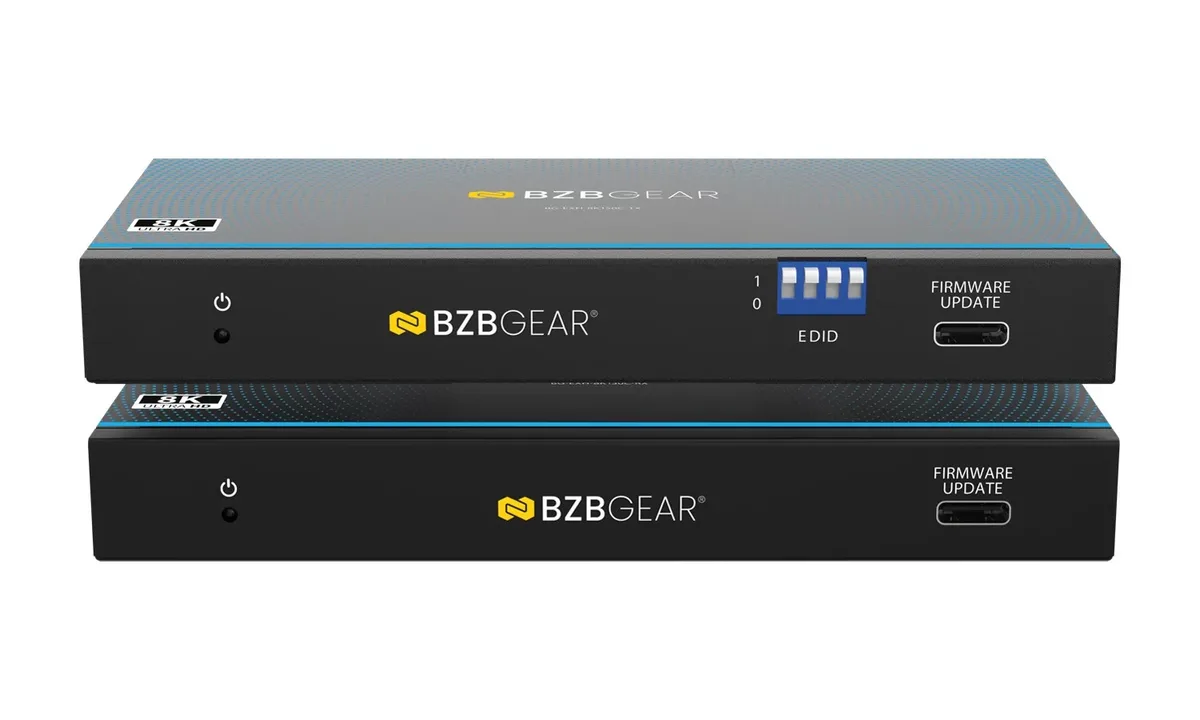

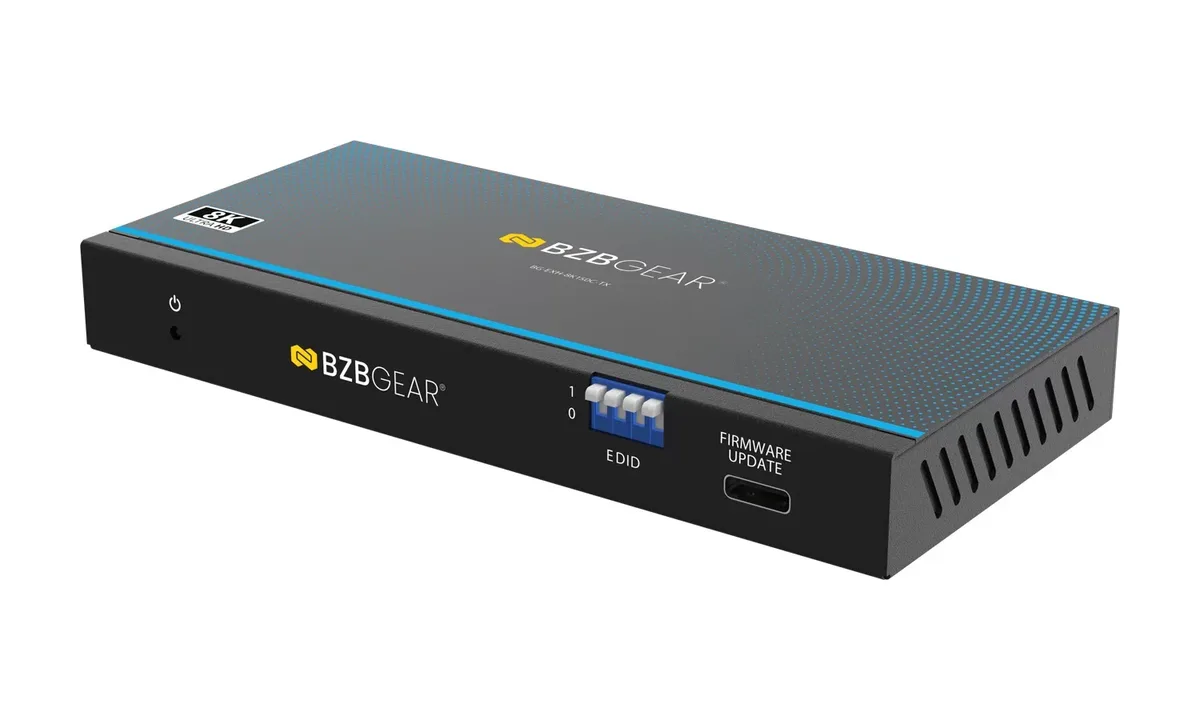

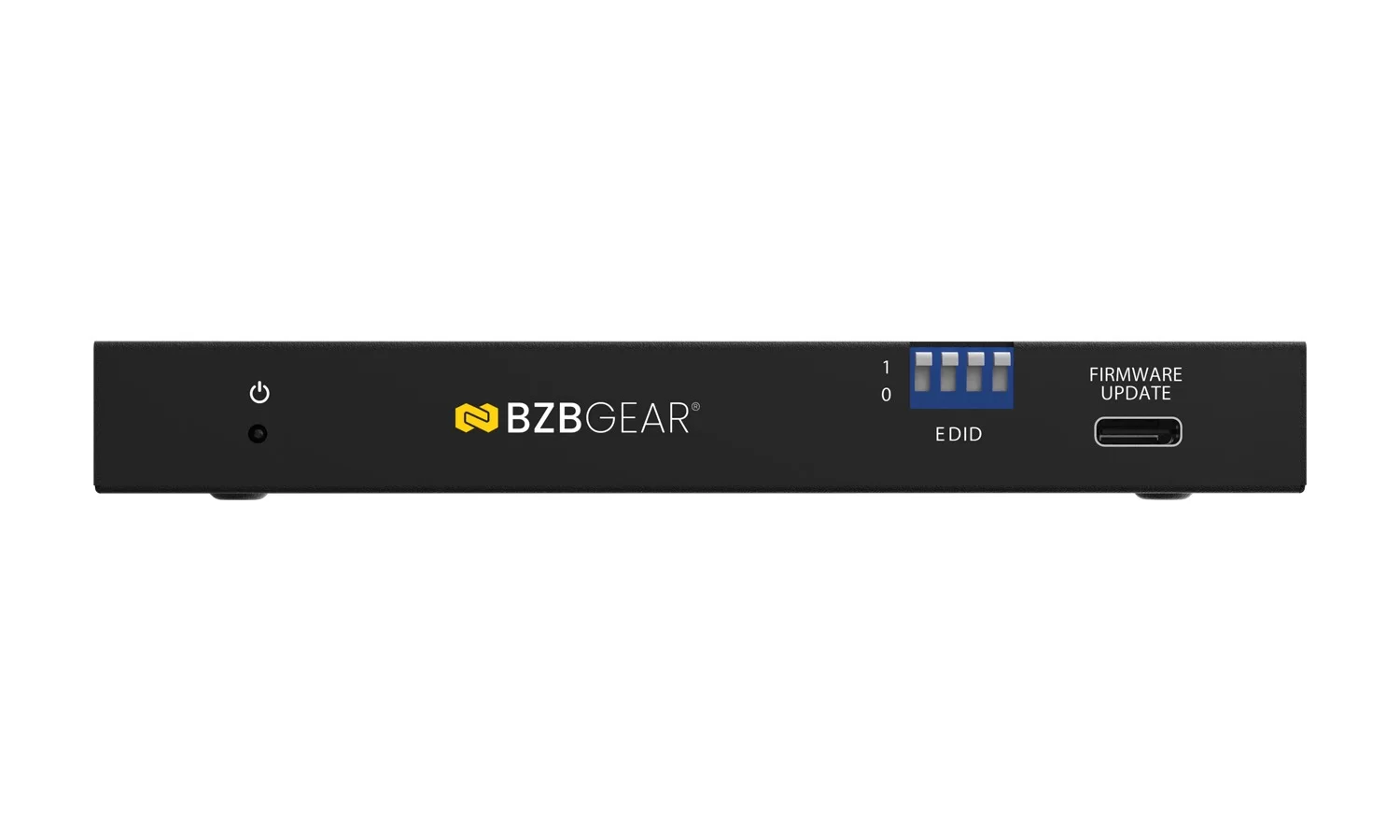

The pair is compact, 140 mm wide and about half a pound each, with bi-directional Power over Cable so only one end needs a supply. Bi-directional IR, RS-232 on a Phoenix connector and CEC pass along the link for display control.

HDMI compliance	HDMI 2.1
HDCP compliance	HDCP 2.3
Video bandwidth	40Gbps FRL and 18Gbps TMDS
Video resolution	Up to 8K@30Hz (4:4:4) All available resolutions are shown as follow
Transmission distance	150m/492ft for 1080p; 120m/394ft for 4K@60Hz; 90m/295ft for 8K@30Hz over CAT6 cable
HDR formats	HDR, HDR10, HDR10+, Dolby Vision, HLG

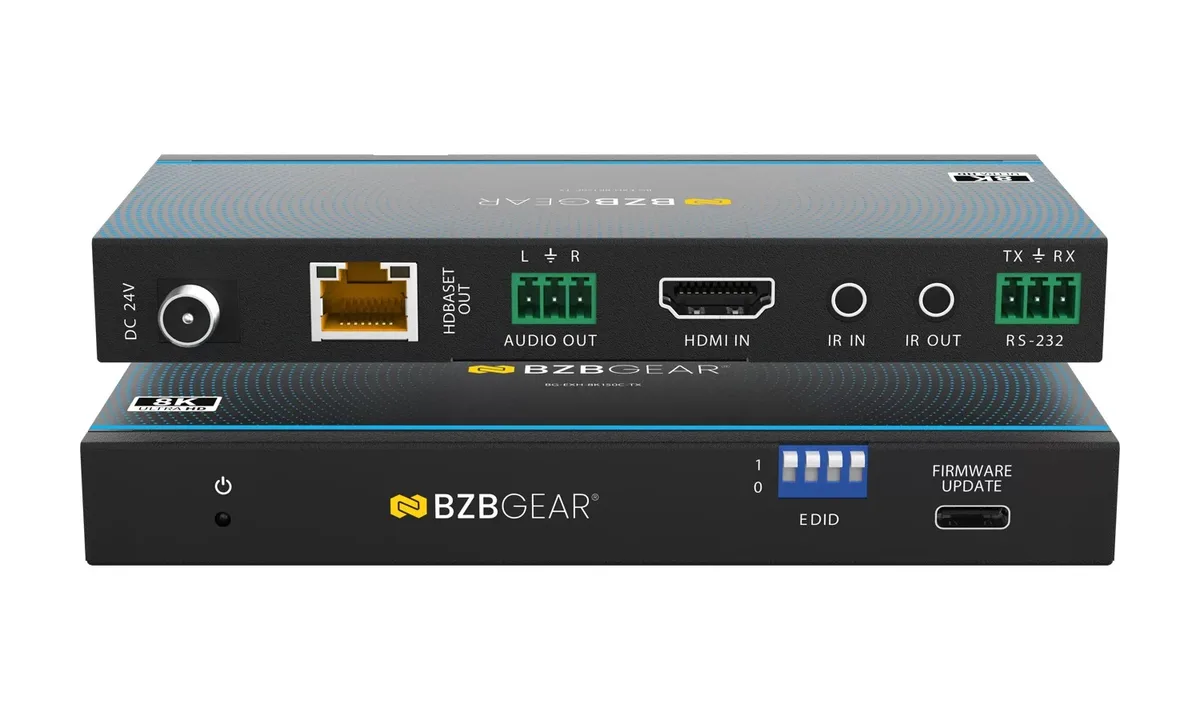

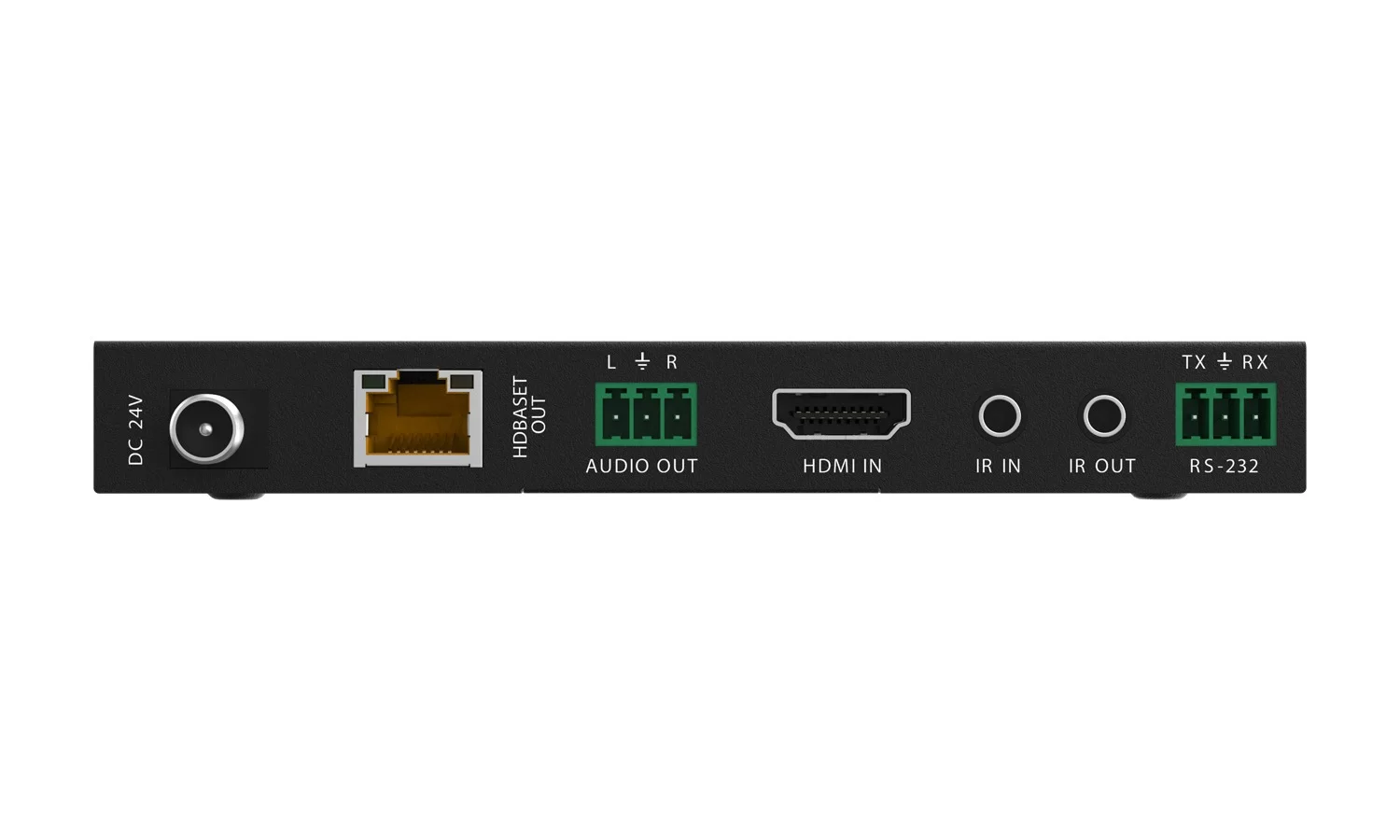

Transmitter connections	1x HDMI IN (Type A, 19-pin), 1x HDBT OUT (RJ45, 8-pin), 1x IR IN, 1x IR OUT (3.5mm stereo), 1x RS-232 (3-pin phoenix), 1x SERVICE (USB Type C)
Receiver connections	1x HDBT IN (RJ45, 8-pin), 1x HDMI OUT (Type A, 19-pin), 1x IR IN, 1x IR OUT (3.5mm stereo), 1x RS-232 (3-pin phoenix), 1x SERVICE (USB Type C)
Power supply	DC 24V/1A; Supports bi-directional PoC
Dimensions (L x W x H)	5.5in x 2.6in x 0.71in [140mm x 65mm x 18mm]
