BZBGear BG-EXH-8KC6 8K HDMI 2.1 Extender

The EXH-8KC6 is the category-cable extender for HDMI 2.1 sources. It carries 8K at 30 Hz 4:4:4 10-bit, 4K at 120 Hz 4:4:4 10-bit or 1080p at 240 Hz, over 60 m of Cat6 or 90 m of Cat6A/Cat7, using up to 40 Gbps FRL on the link.

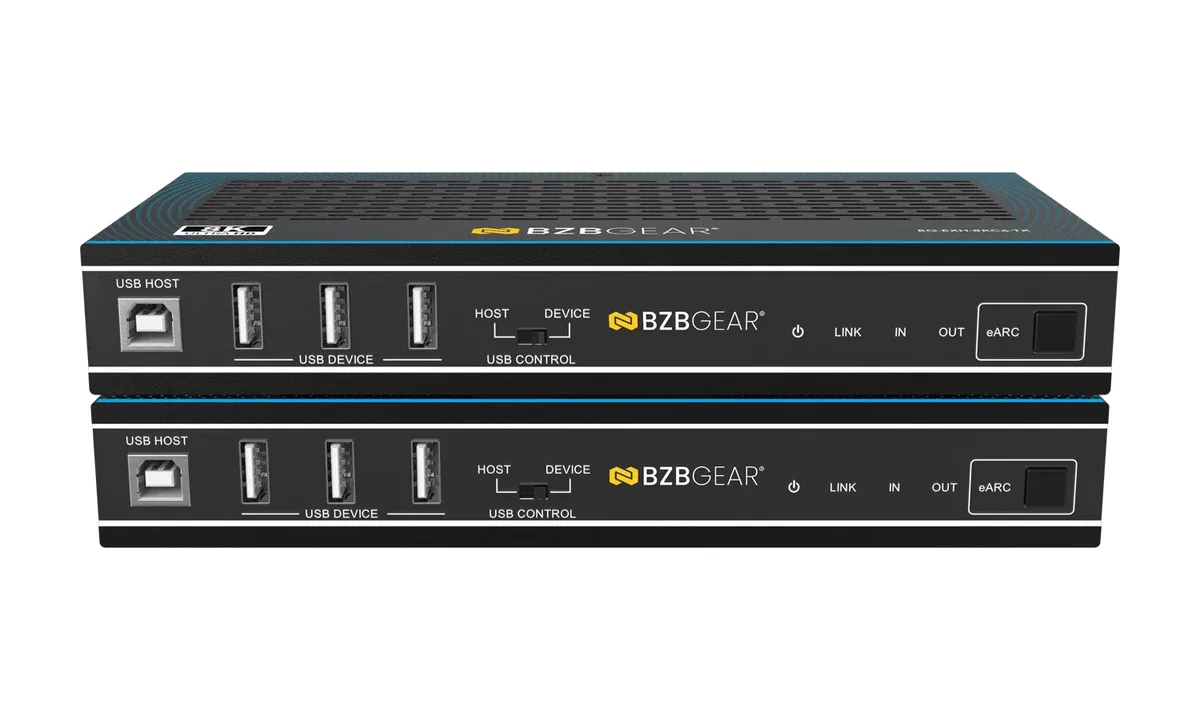

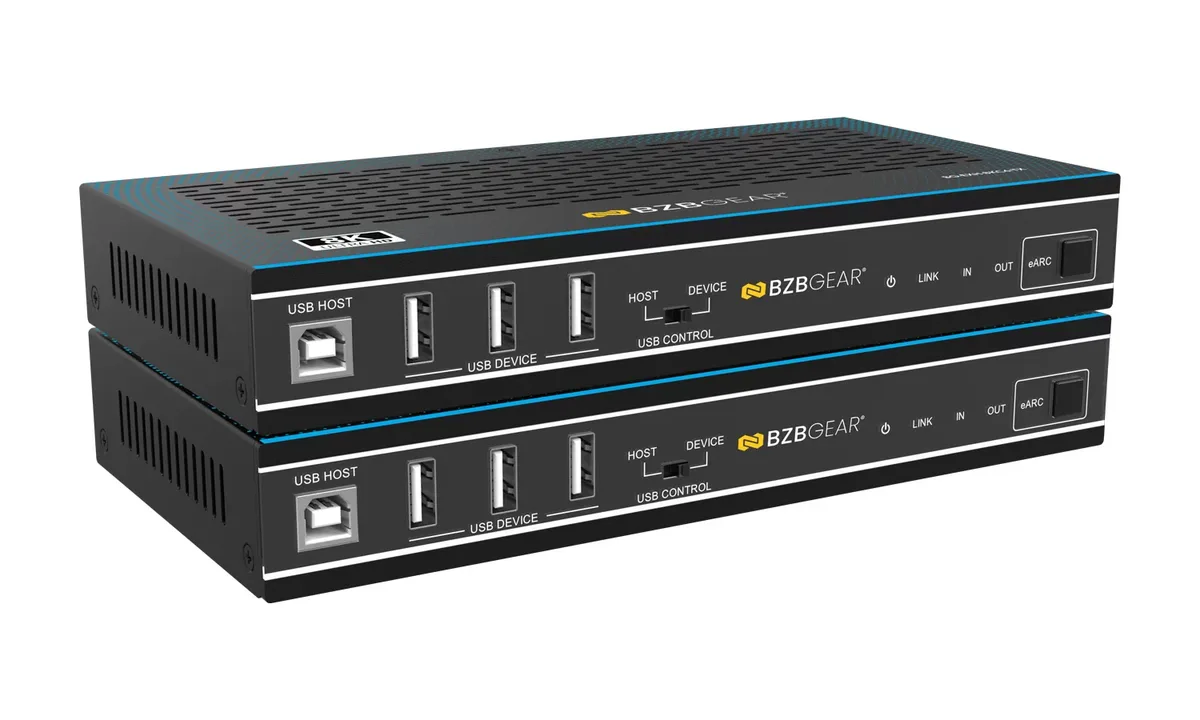

Both ends have the same connector set - HDMI in and out, analog audio in and out, IR, RS-232, a USB host port with three device ports, and Ethernet - so the pair can be installed either way round. Power over Cable feeds the far unit, and total draw is around 20 watts.

HDMI compliance	HDMI 2.1
HDCP compliance	HDCP 2.3
Video bandwidth	Up to 40Gbps FRL and 18Gbps TMDS
Video resolution	Up to 8K@30 4:4:4 10bit, 4K@120Hz 4:4:4 10bit, 1080p240Hz
Transmission distance	MAX: CAT6 = 197ft (60m) / CAT6A/7 = 295ft (90m)
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
USB bandwidth	Up to 350Mbps
Input	1 x HDMI IN [Type A, 19-pin female] 1 x AUDIO IN [3.5mm Stereo Mini-jack]
Output	1 x HDMI OUT [Type A, 19-pin female] 1 x HDBT OUT [RJ45, 8-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack]
Control	1 x IR IN [3.5mm Stereo Mini-jack] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x RS-232 [3 pin-3.81mm Phoenix jack] 1 x USB HOST [USB Type B] 3 x USB DEVICE [USB Type A] 1 x ETHERNET [RJ45]
Power supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/2.7A (US/EU standard, CE/FCC/UL certified)
Dimensions (L x W x H)	7.9in x 3.9in x 1.2in [200mm x 100mm x 30mm]
