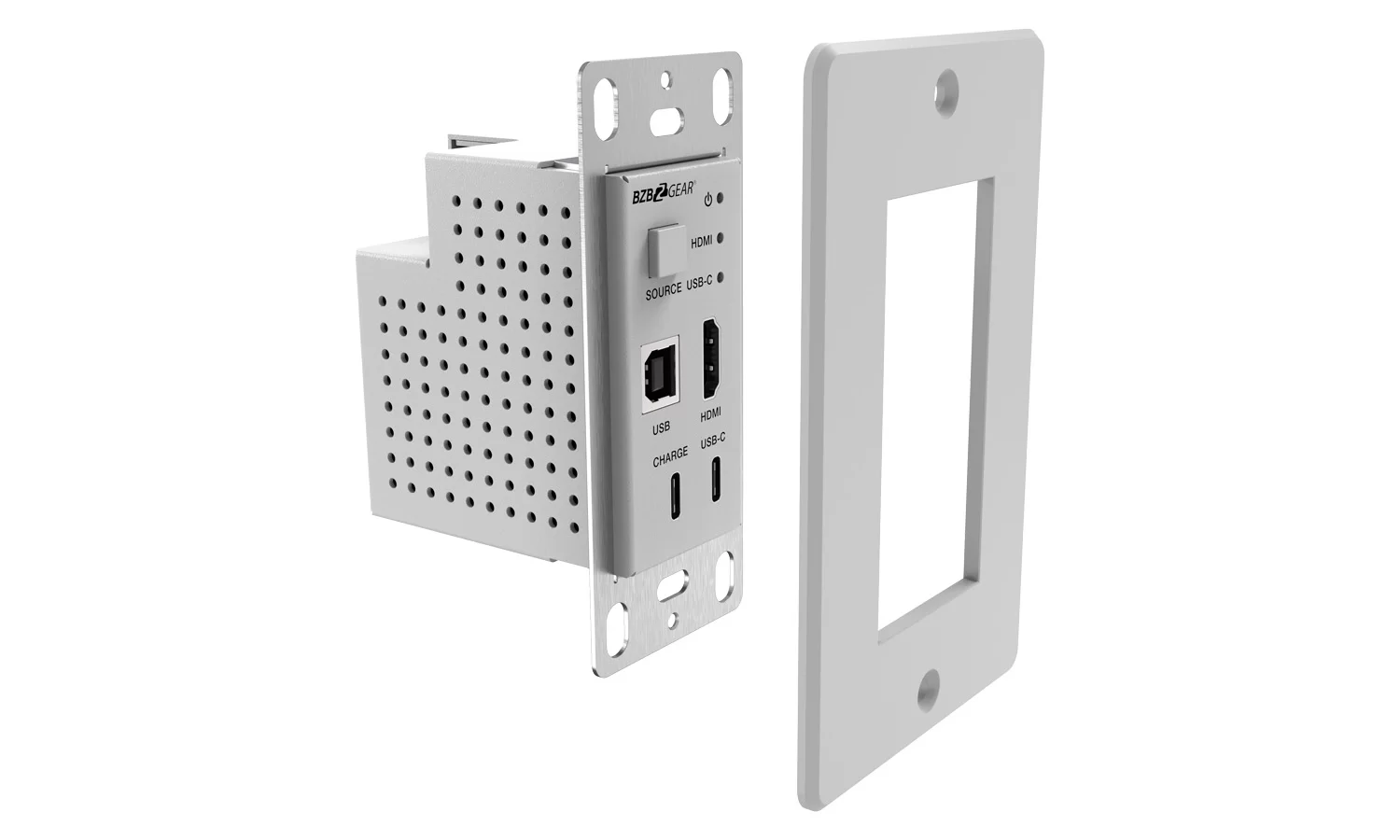

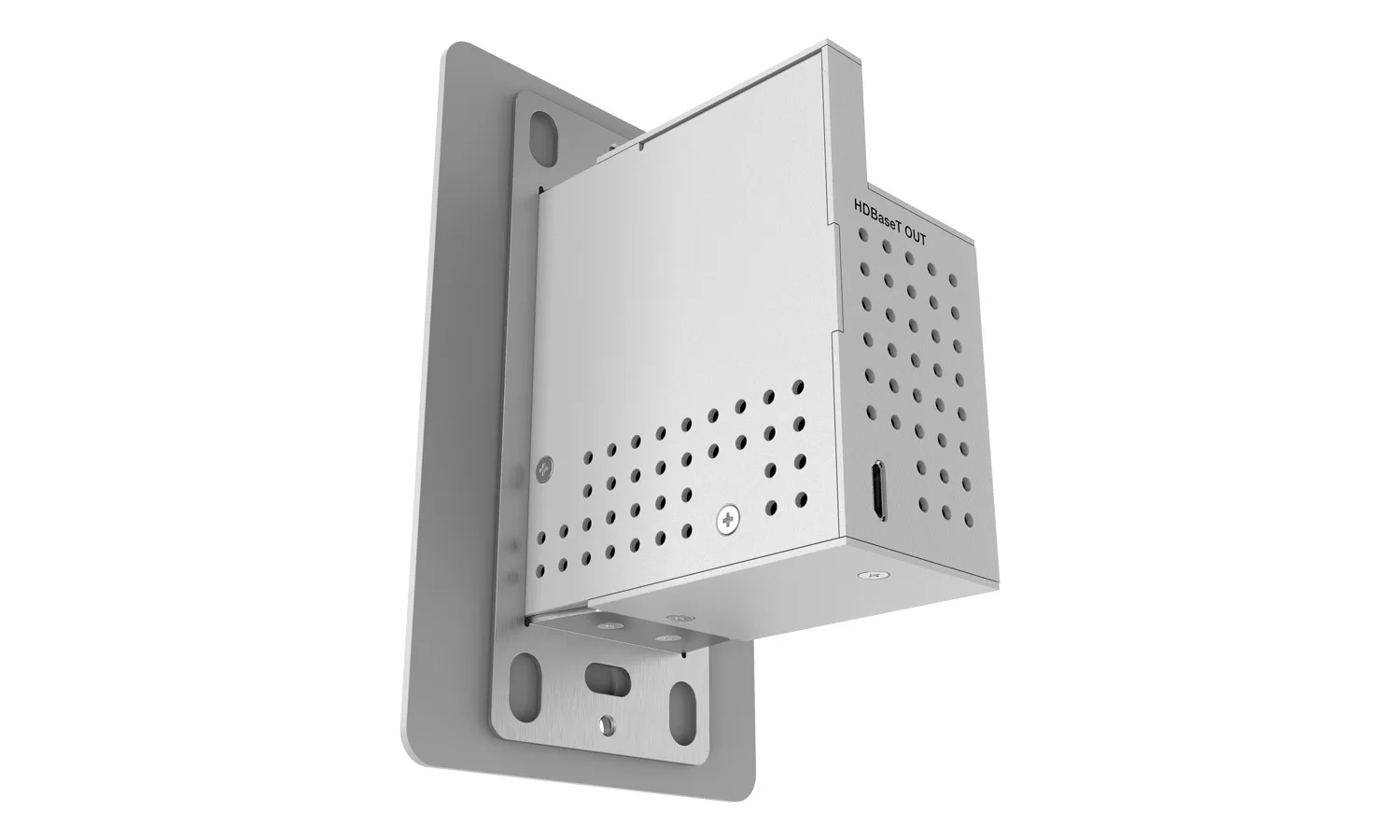

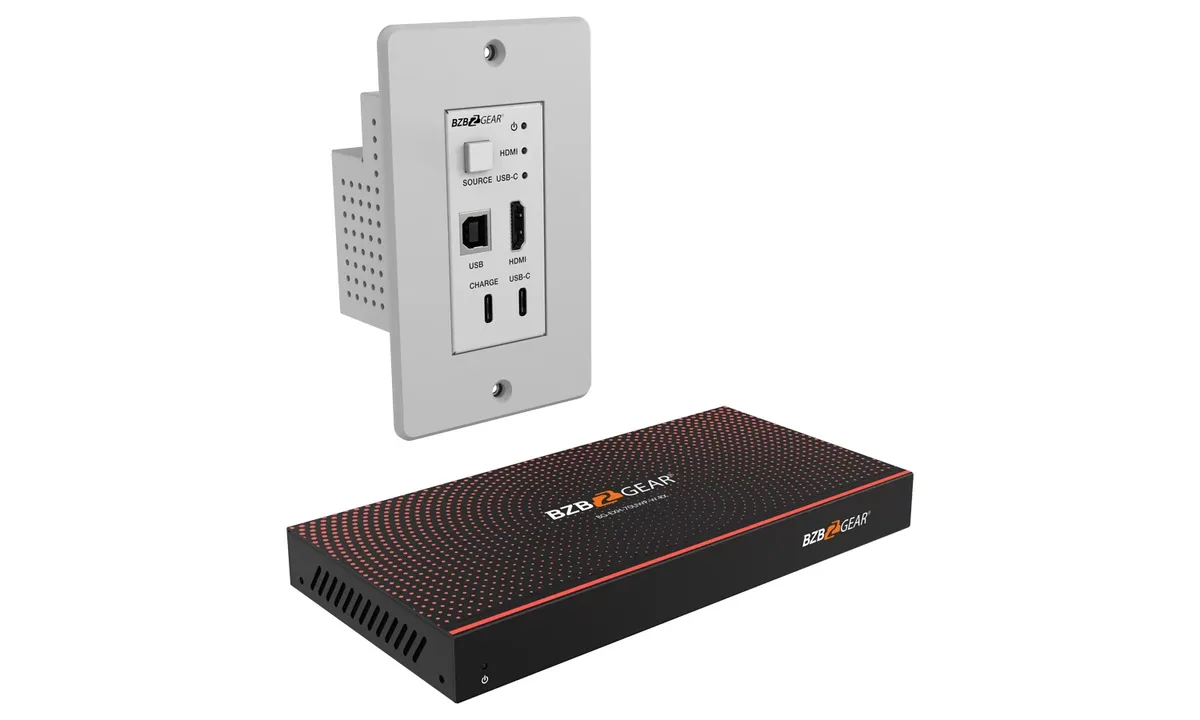

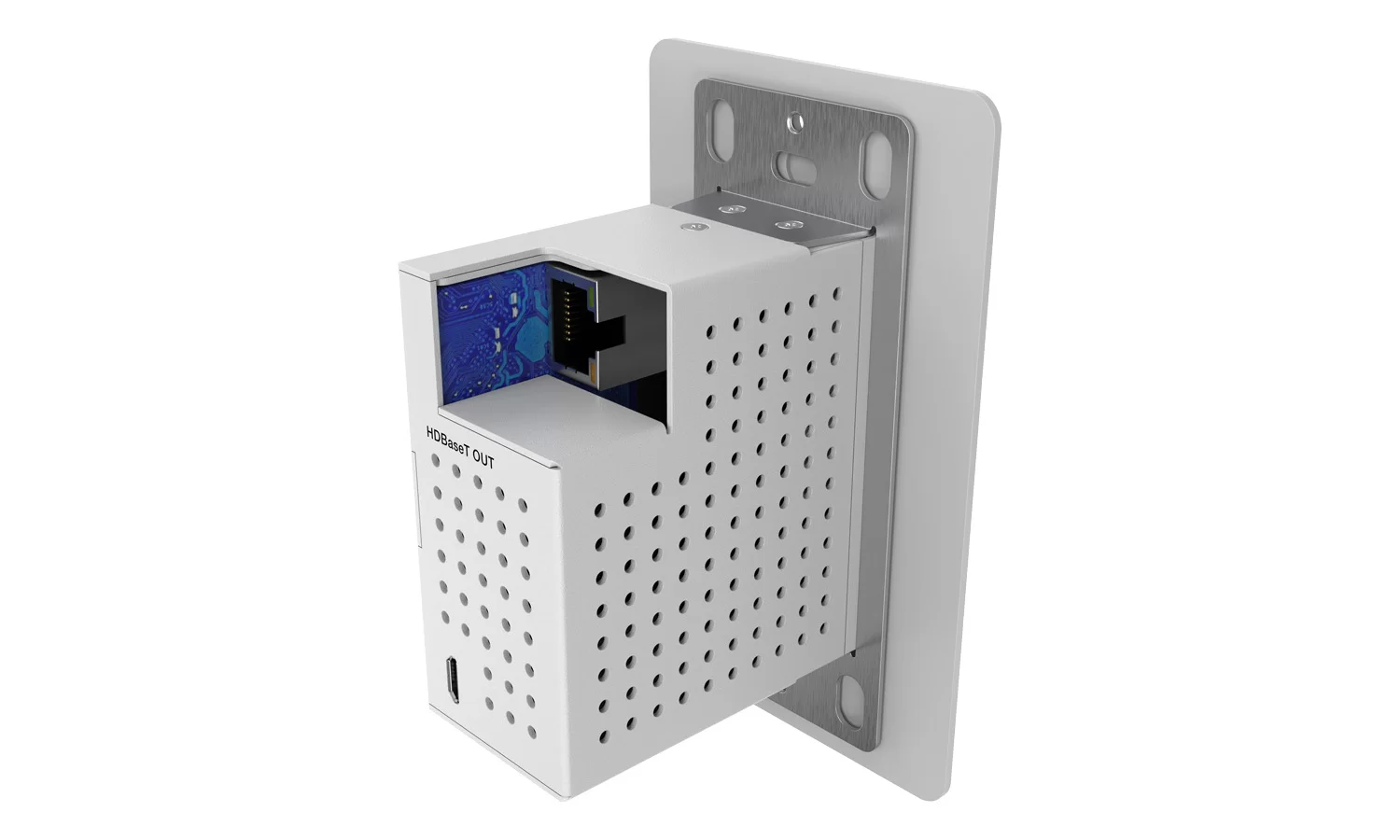

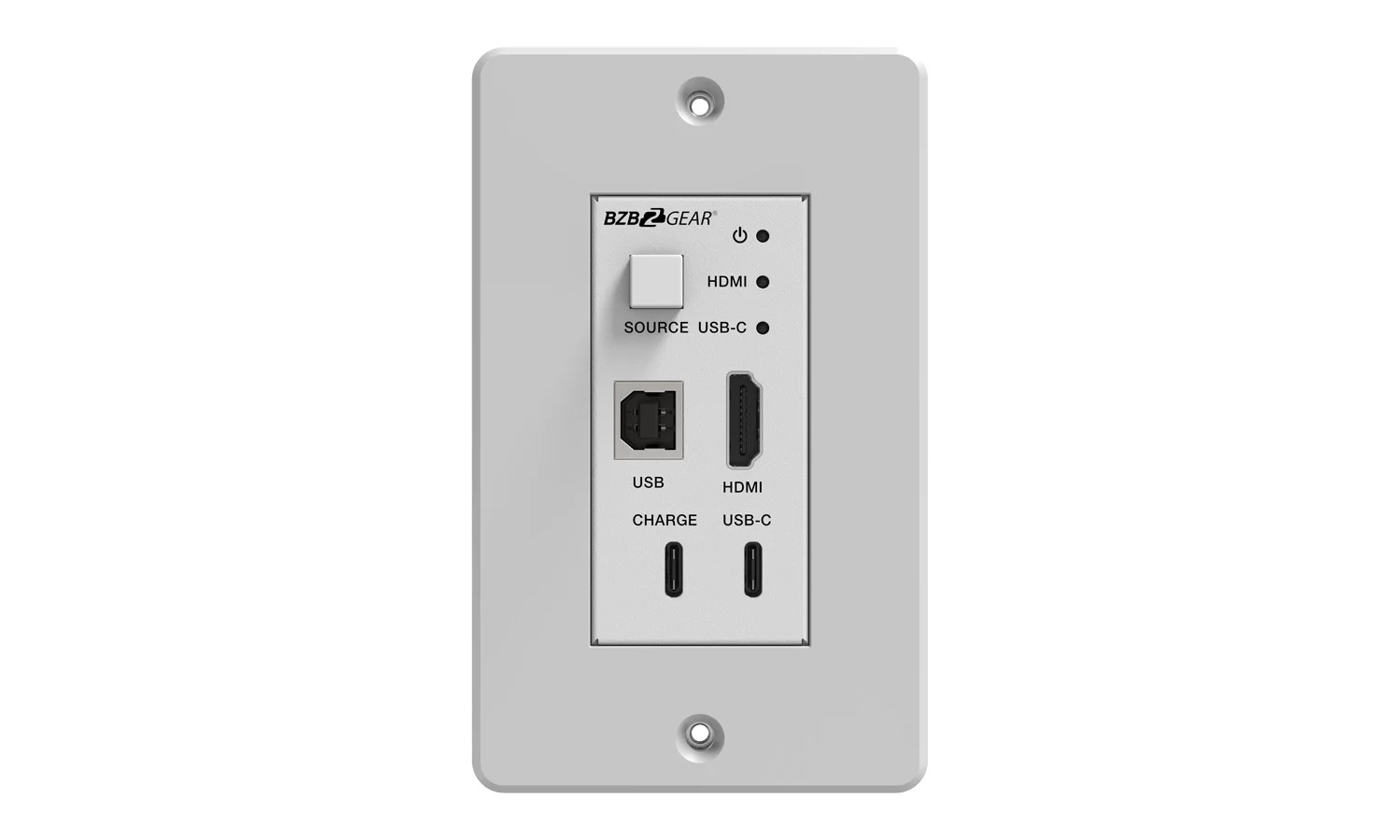

BZBGear BG-EXH-70UWP-W HDMI, USB-C and KVM Wall Plate HDBaseT Kit

The BG-EXH-70UWP-W is the KVM member of the wall plate family: an HDMI and USB-C plate that also carries USB back from the display end, so a room PC can be driven from a lectern keyboard and mouse.

Video reaches 70 m at 1080p and shorter at 4K, on an 18 Gbps HDMI 2.0b link with HDCP 2.2, supporting 4096x2160 and 3840x2160 at up to 60 Hz. The plate can be powered over Ethernet from the receiver. HDR10 and HDR10+ pass through, along with Dolby Atmos, TrueHD and DTS:X audio. The front plate is white.

HDMI Compliance	HDMI 2.0b, DisplayPort 1.2a (Adapter required for Display Port)
HDCP Compliance	HDCP 2.2
Video Bandwidth	18 Gbps
Video Resolution	4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Transmission Distance	Max distance (1080p): 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7
HDMI Audio Formats	Dolby Atmos,TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2-8Ch
Color Depth	8/10/12-bit
Color Space	RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
