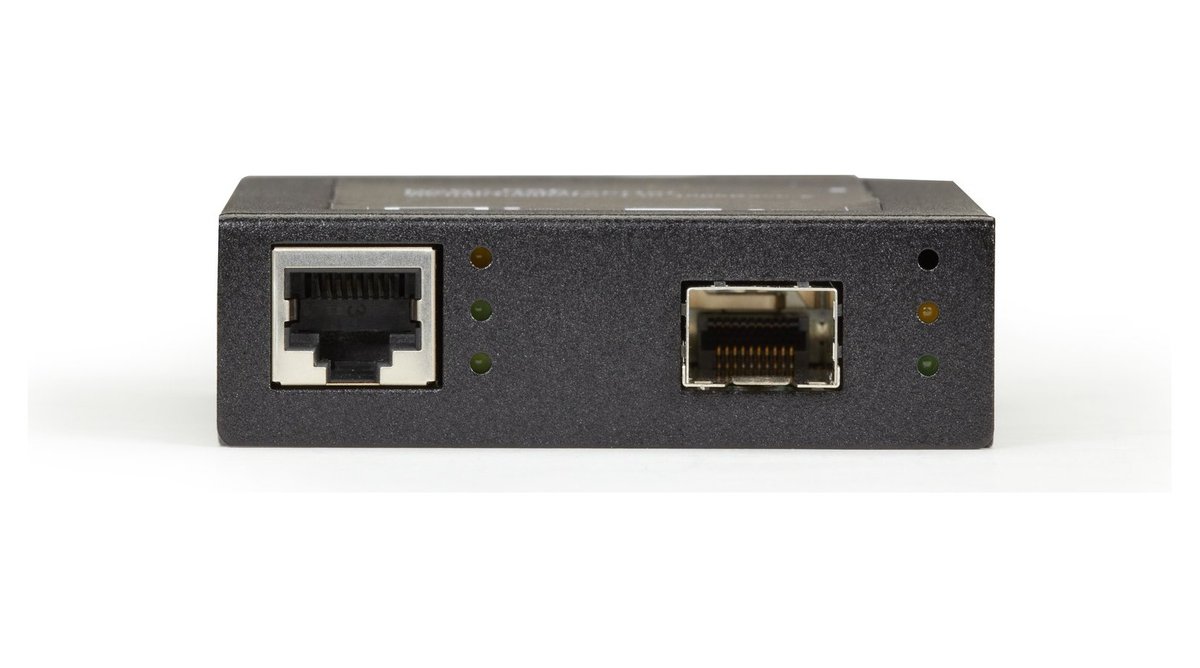

Black Box LPS535A-SFP LPS530 Series Gigabit Ethernet (1000-Mbps) PoE+ Media Converter - 10/100/1000-Mbps Copper to 1000-Mbps Fiber SFP

Black Box builds the LPS535A-SFP to carry a copper segment onto fiber: 10/100/1000-Mbps Copper to 1000-Mbps Fiber SFP. Connectors are (1) RJ45.

Power: External power adapter included with US power cord (IEC320). It measures 0.9-in. H x 2.9-in. W x 4-in. D (2.2 x 7.4 x 10.2-cm) and weighs 0.53-lb. (0.241-kg). Front-panel indication: Power LED: ON when DC power is connected.

Connectors	(1) RJ45; (1) SFP
Standards	IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T: IEEE 802.3z 1000BASE-SX/LX: IEEE 802.3at PoE+
Indicators	Power LED: ON when DC power is connected; SFP Link/Act LED: ON when there is activity on the SFP link; PSE: ON when a Powered Device (PD) is connected; 100M/ACT: ON when port is running at 100M speed and activity; 1000M/ACT: OFF when port is
Power	External power adapter included with US power cord (IEC320); Input: 100-240 VAC, 50-60 Hz, 0.8 A max.; Output: 48 VDC, 0.8 A; Consumption: 33 Watts maximum; PoE+ output: 802.3at, up to 30 W
Humidity	10 to 90% relative, non-condensing
Dimensions	0.9-in. H x 2.9-in. W x 4-in. D (2.2 x 7.4 x 10.2-cm)
Weight	0.53-lb. (0.241-kg)
Approvals	FCC Class A, CE
