Black Box VSC-SDI-HDMI 3G-SDI/HD-SDI to HDMI Converter

Turns a 3G-SDI, HD-SDI or SD-SDI source into HDMI so a standard LCD can stand in for an expensive SDI monitor. Input is on 75-ohm coax BNC with automatic standard detection, the data is reclocked for low-jitter output, and conversion is digitally pure - nothing is lost on the video or the audio side. Output supports 1080p HDMI with Deep Color depth.

A second coax connector provides SDI loop-out, so a camera feed can appear on the HDMI panel while still going on to another SDI device for local monitoring, or the loop can daisy-chain further down the chain. Up to eight channels of audio pass through, including 7.1 or 5.1 alongside the video. No software or driver installation is required.

Input	3G-SDI, HD-SDI or SD-SDI on 75-ohm coax BNC, autodetected
Output	HDMI, 1080p with Deep Color
Bit rate	Handles 3G-SDI at 2.97 Gbps

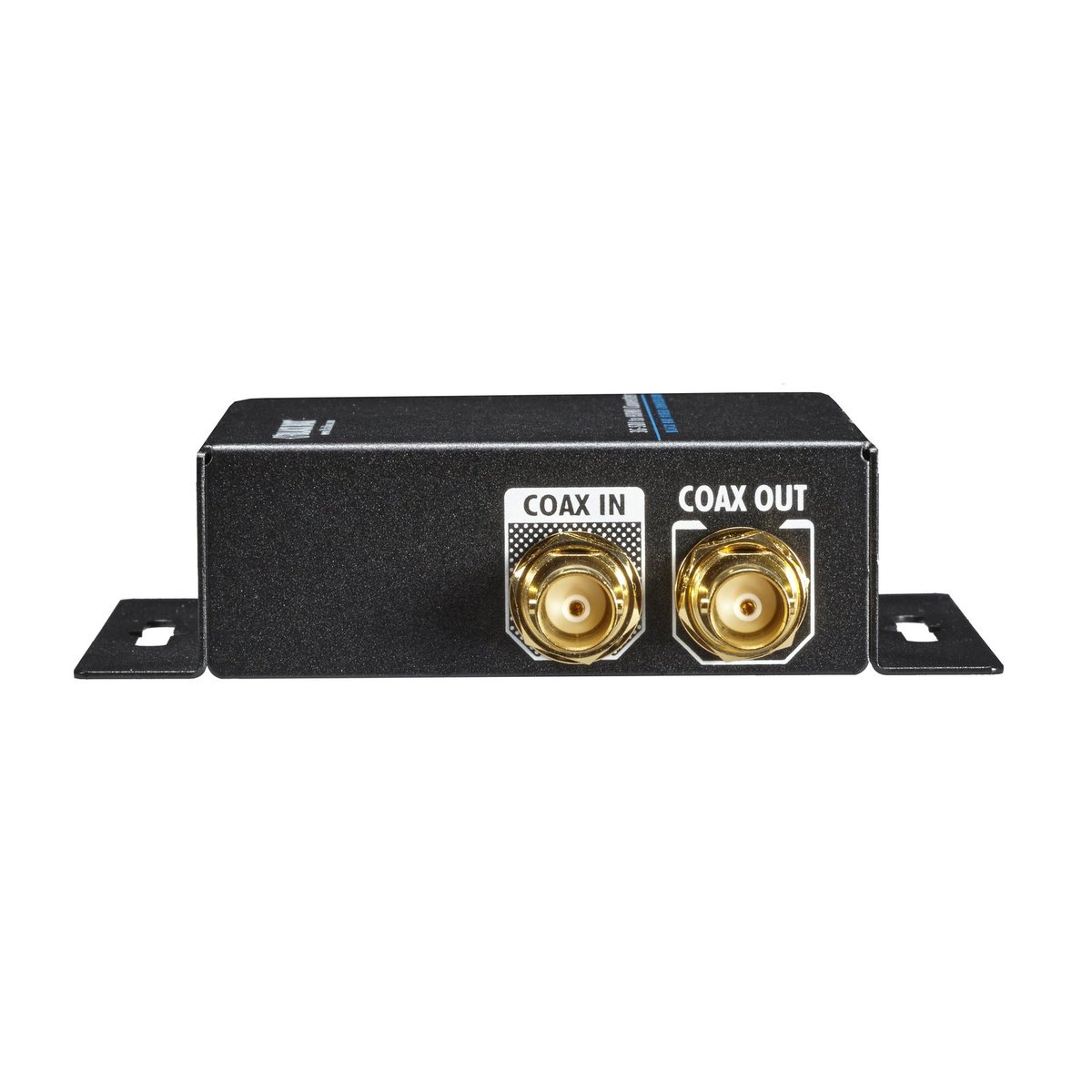

Loop-out	SDI loop-out on a second coax connector for local monitoring or daisy-chaining
Signal handling	Reclocks SDI data for low-jitter output
Audio	Up to eight channels, including 7.1 and 5.1
Software	None required
Ships with	Converter, AC power adapter, user manual
