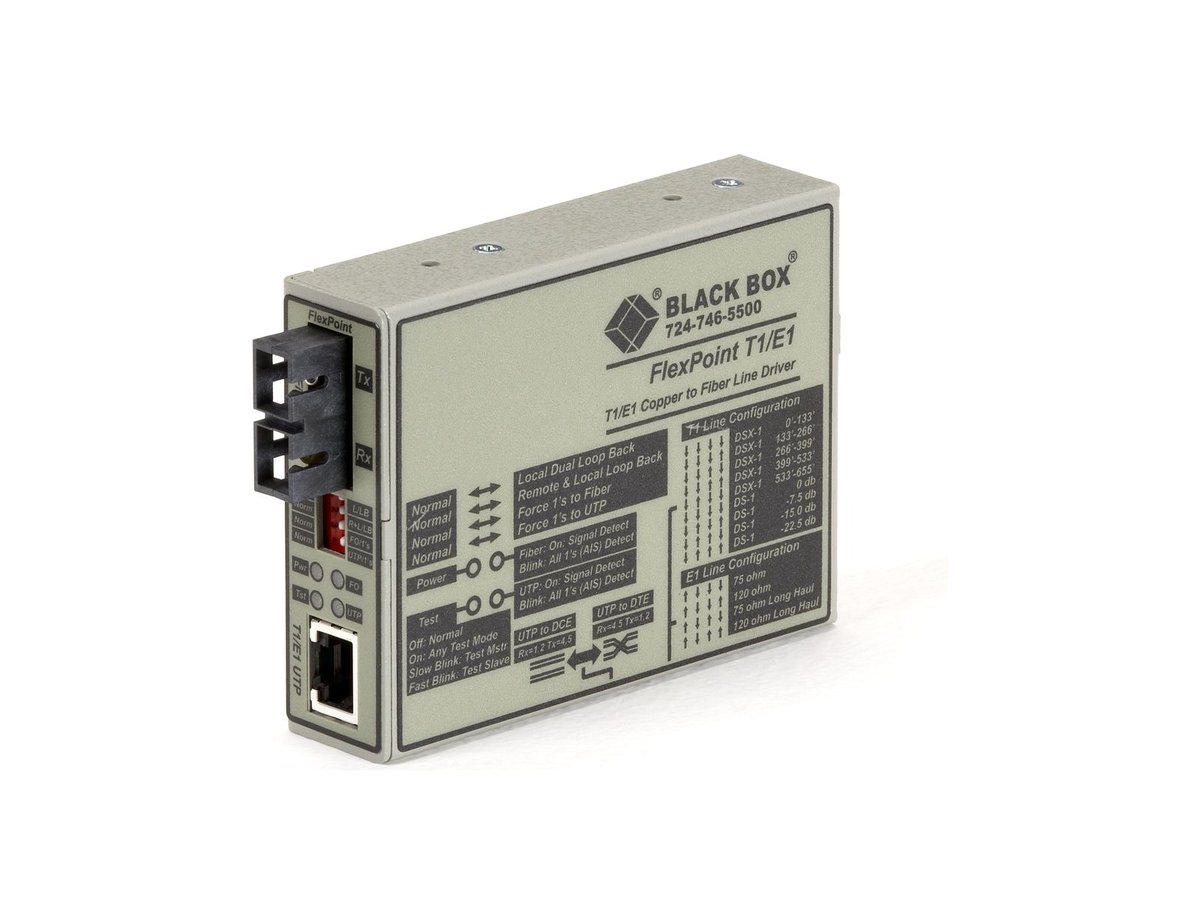

Black Box MT663A-SSC Managed T1/E1 Media Converter - T1/E1 Copper to Singlemode Fiber, 1300nm, 28km, SC, North America Power Supply

The MT663A-SSC is the copper-to-fiber hop in a Black Box link: T1/E1 Copper to Singlemode Fiber, 1300nm, 28km, SC, North America Power Supply. Connectors are RJ45/RJ48 (Selectable). Connects T1 or E1 PBXs, CSUs, or routers over fiber to protect against noise and increase network reliability. Supports AMI, B8ZS, and HDB3 line codes.

Power: 110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from Power Chassis. It measures 1-in. H x 3-in. W x 4-in. D (2.5 x 7.6 x 10.2-cm) and weighs 0.4-lb. (0.182-kg).

Connectors	RJ45/RJ48 (Selectable); (1) SC
Operation	Asynchronous, point-to-point
Power	110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from Power Chassis
Dimensions	1-in. H x 3-in. W x 4-in. D (2.5 x 7.6 x 10.2-cm)
Weight	0.4-lb. (0.182-kg)
Country of Origin	United States
Encoding	AMI, B8ZS, HDB3
Fiber Type	50/125-, 62.5/125-, or 9/125-um single-mode
