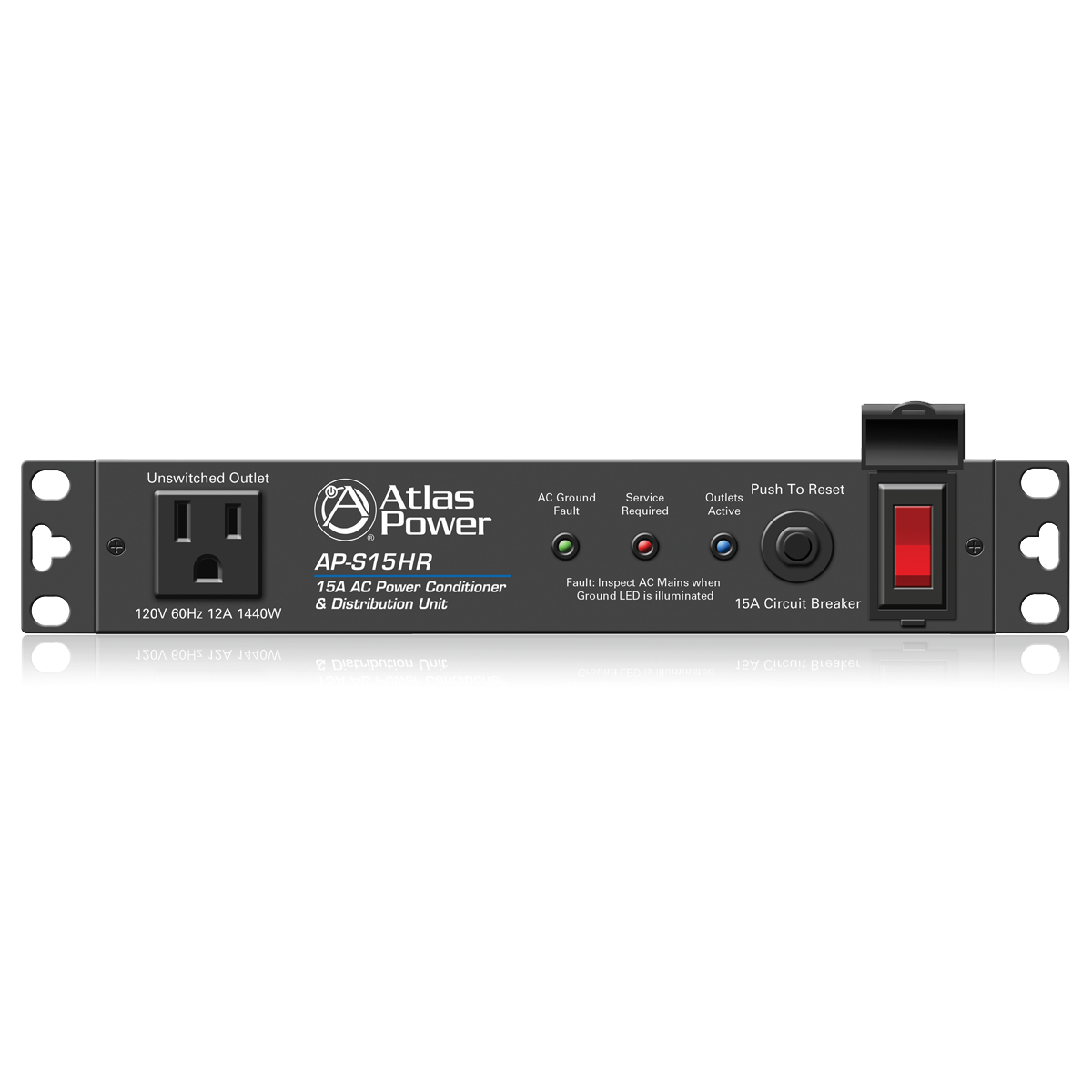

AtlasIED AP-S15HR 15A Half Width Rack Power Conditioner
The AtlasIED AP-S15HR is a 15A half width rack power conditioner. The AP-S15HR has been designed to fit into Atlas half width rack equipment racks. The AP-S15HR meets or exceeds most installation requirements for AC power distribution and equipment power protection.

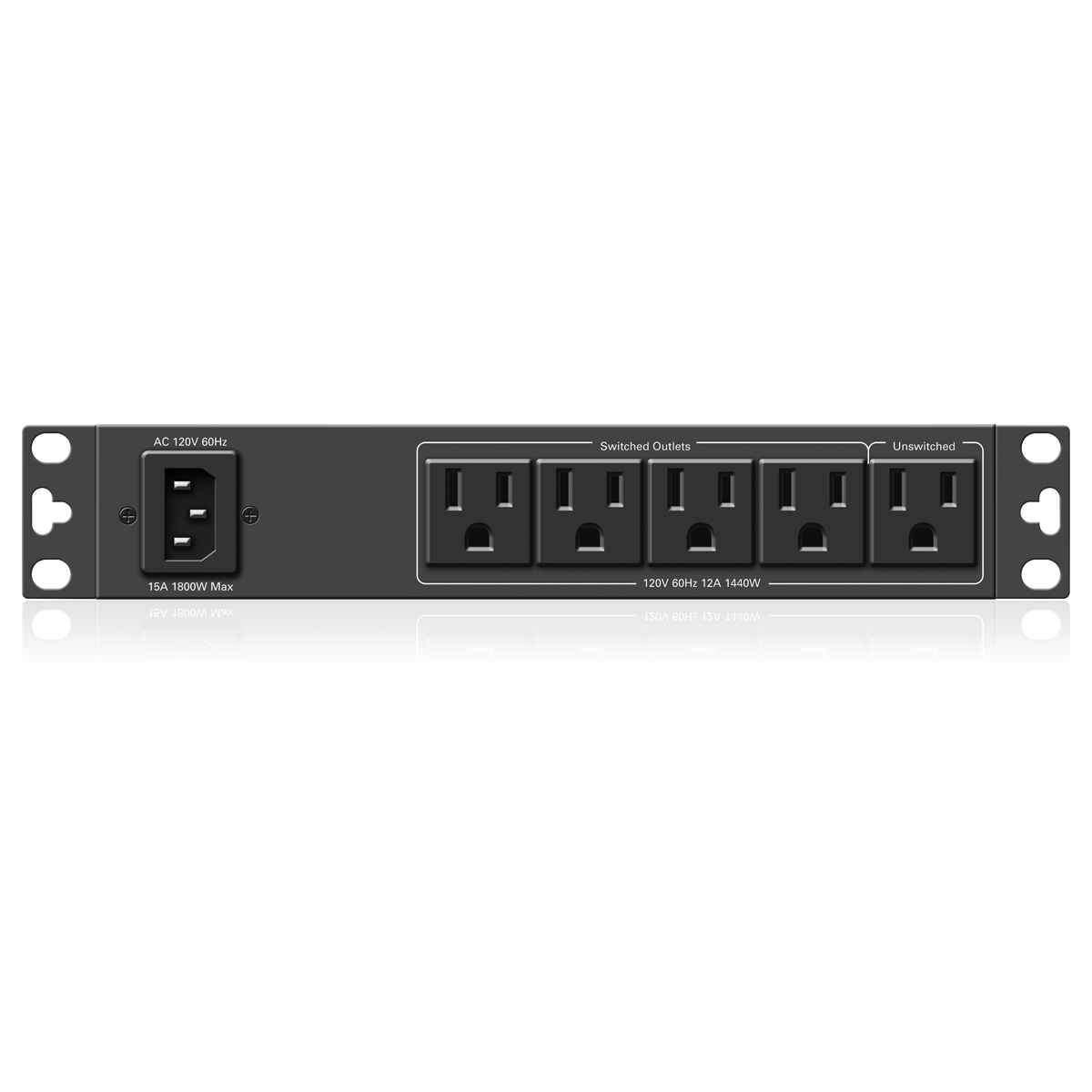

The AP-S15HR Half Rack design offers power management control, scalable power cord length, noise filtering, spike/surge protection and six AC outlets making it the most compact, cost effective power management protection system on the market today. The AP-S15HR features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. AtlasIED lists half width rack design 8.9" wide with removable rack ears; 6 total outlets; earth ground fault connection indicator; RFI noise filtering to reduce radio frequency interference. It measures 1.75" (1RU, 44.5mm) high, 8.9" (215.9mm) Body with Rack Ears 10.5" (266.7mm) wide, and 8" (203mm) deep. It carries a manufacturer warranty of 60 months from date of purchase.
| Part Number | AP-S15HR |
|---|---|
| Max AC Mains Current | 15 Amps |
| Temperature Range | 5° - 35°C |
| Operating Voltage | 102VAC - 132VAC |
| Power Consumption | 8 Watts |
| Noise Attenuation RFI | 10dB @ 10kHz/40dB @ 100kHz/100dB @ 10MHz |
| Height | 1.75" (1RU, 44.5mm) |
| Width | 8.9" (215.9mm) Body with Rack Ears 10.5" (266.7mm) |
| Depth | 8" (203mm) |
| Weight | 5.5 lbs (2.49kg) |
| Warranty Period | 60 months from date of purchase |
