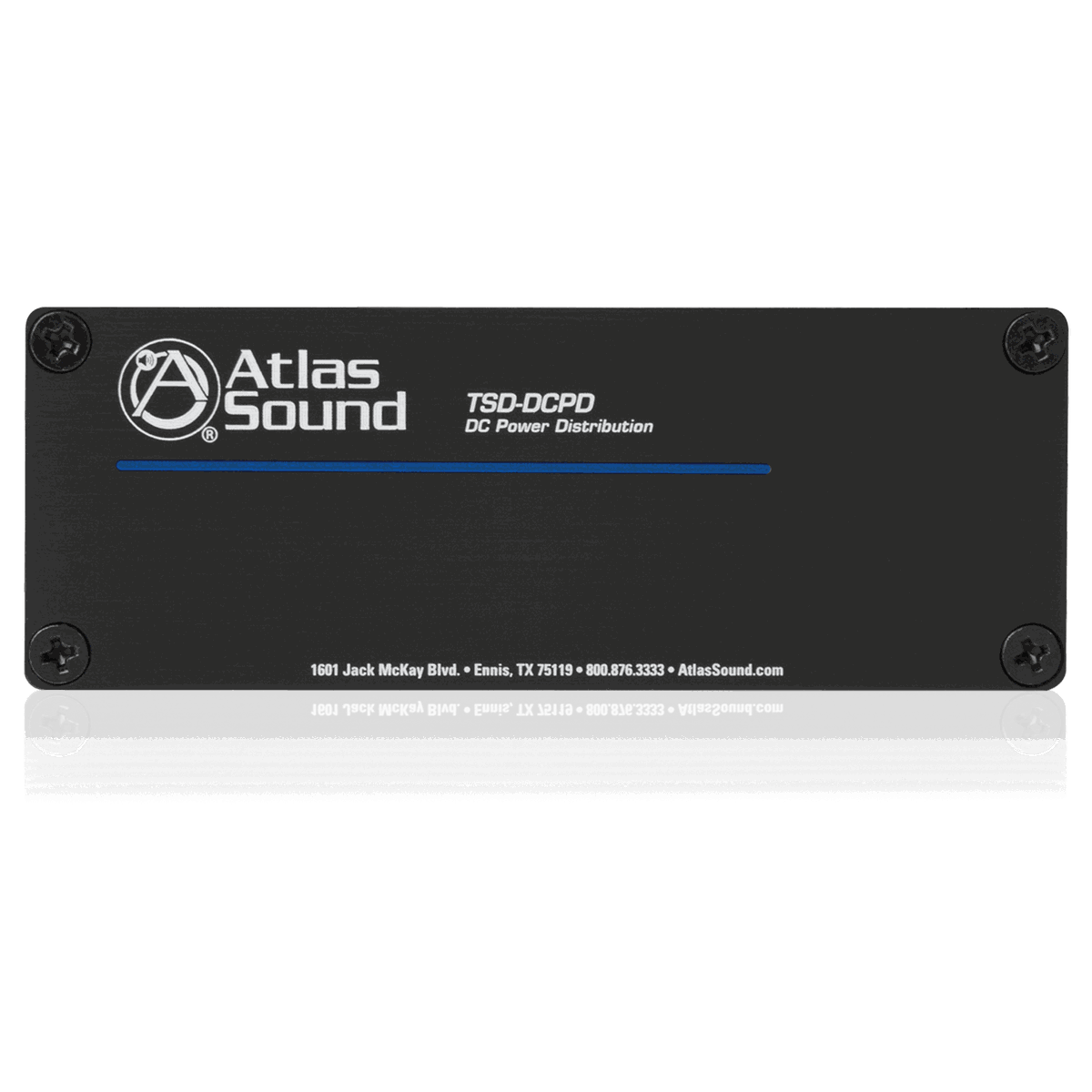

AtlasIED TSD-DCPD DC Power Distribution

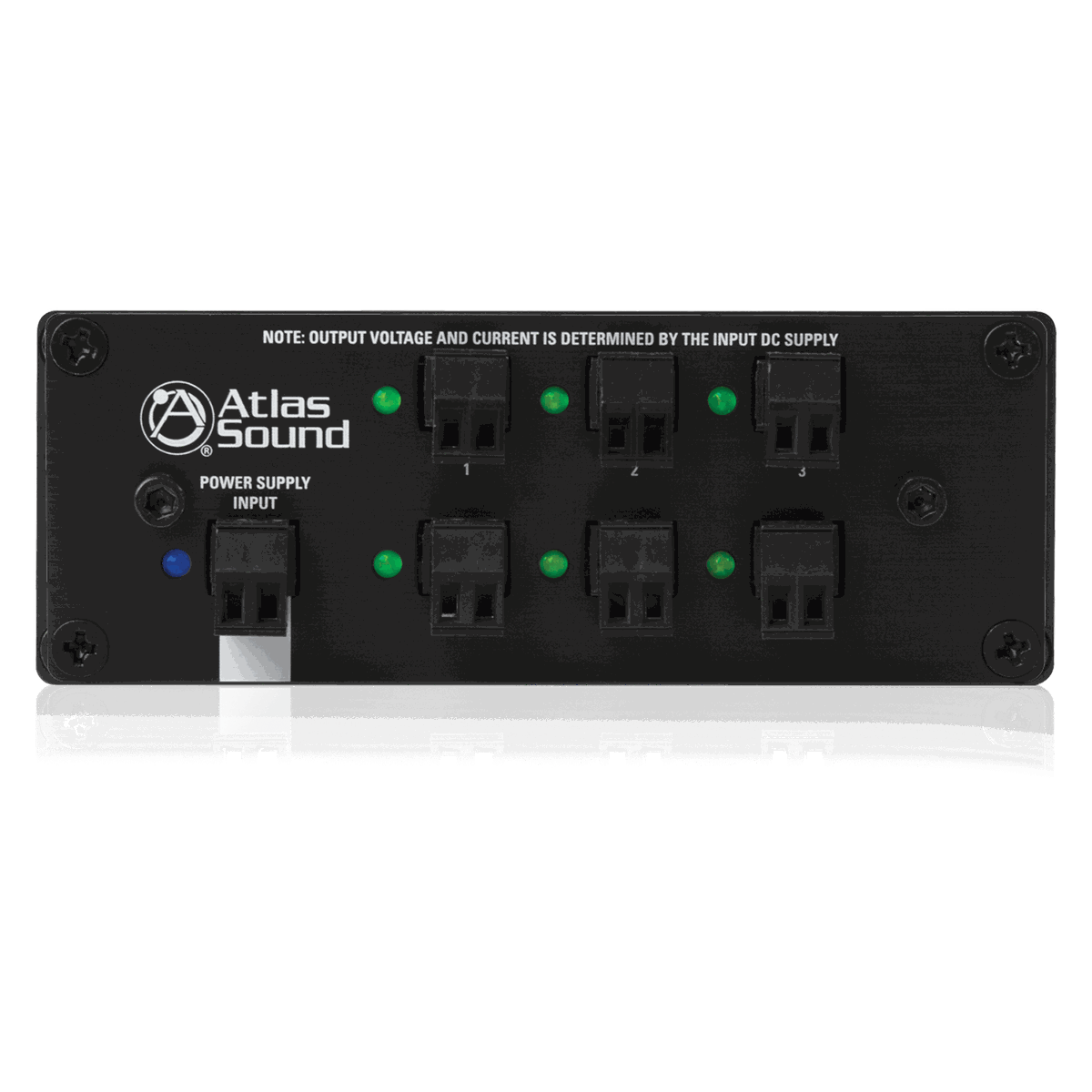

The AtlasIED TSD-DCPD is a DC power distribution. The TSD-DCPD is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. One 9-24V PSU input is distributed to 6 independent, isolated outputs.

The compact TSD-DCPD will help remove rack clutter and free up power strip space. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. AtlasIED lists power distribution for up to 6 TSD's from a single PSU; 1 in 6 out configuration; six (6) independent 9-24V outputs; DC filtering and isolation per channel. It measures 1.5" high, 4" wide, and 2.5" deep. It carries a manufacturer warranty of 36 months from date of purchase.

Part Number	TSD-DCPD
DC Voltage Input	9V - 24V DC, 5A Max
Output Voltage	9V - 24V DC, Dependent on the DC Input Votage
Output Current	Power Supply Selection is Dependent on the Number of Devices Connected to the DCPD and Their Accumulative Current Consumption. Use the TSD Power Calculator for Total Current Required.
Height	1.5" (3.81 cm)
Width	4" (10.16 cm)
Depth	2.5" (6.35 cm)
Weight	6oz., .165kg
Warranty Period	36 months from date of purchase
