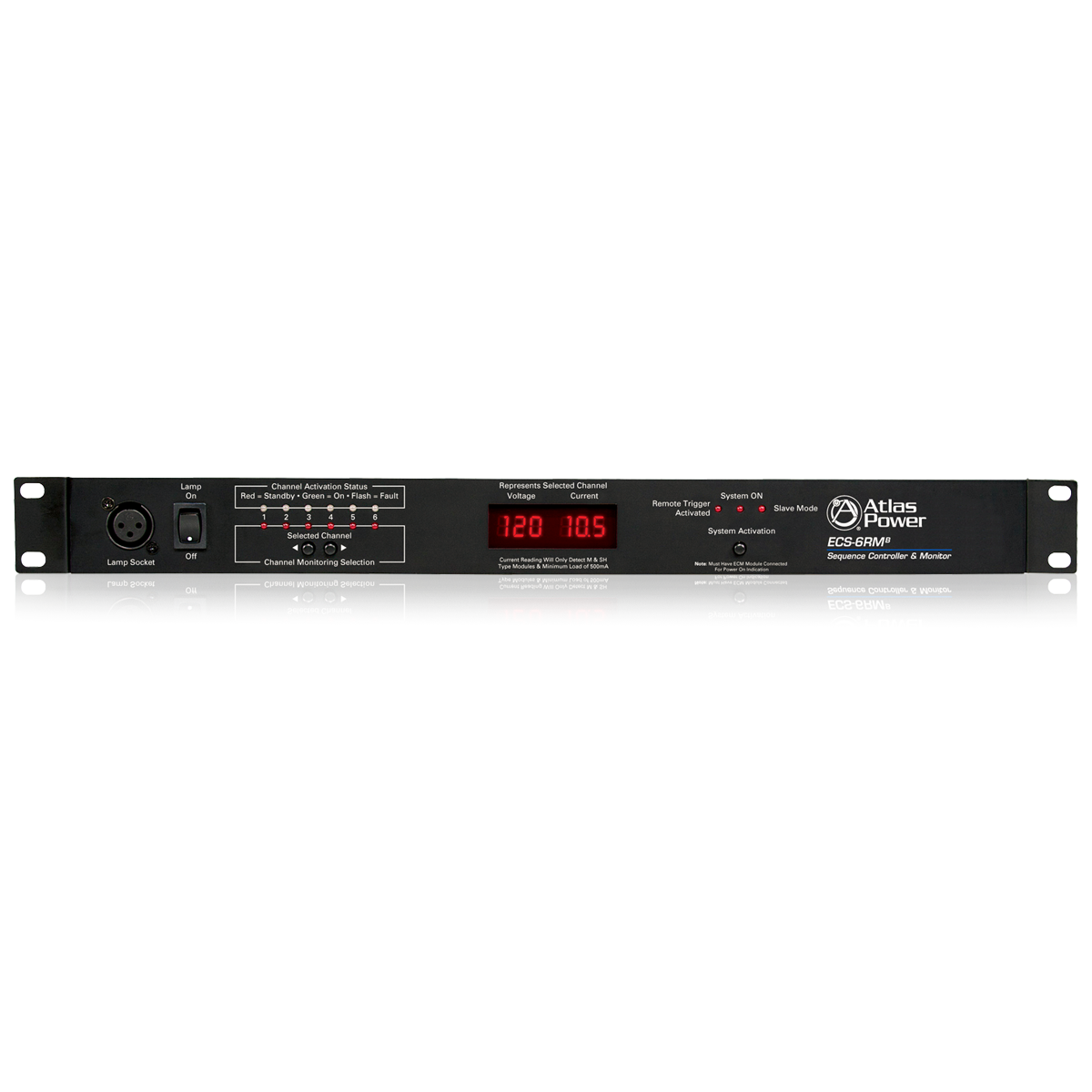

AtlasIED ECS-6RM AC Sequence Controller and Monitor

The AtlasIED ECS-6RM is an AC sequence controller and monitor. The ECS-6RM modular system has been designed to meet most installation requirements for AC power distribution, equipment power conditioning and surge suppression protection. The compact 1 RU unit features six sequential timing sections that can be activated via the unit, or remotely.

Up to three ECS-6RM units can be daisy chained together with independent trigger timing settings giving you a total of 18 sequence triggered outlets. The ECS-6RM unit is the activation controller/monitor portion of the system and requires a 120V AC Mains ECM (Electrical Controlled Module) module for each triggered output. AtlasIED lists six sequencer timing sections, 1, 3, or 6 second intervals; six independent ECM connections; six independent contact closures; front panel digital AC mains voltage and current meter. It measures 1.75" (44.45mm) high, 19" (482.6mm) wide, and 10" (254mm) deep. It carries a manufacturer warranty of 12 months from date of purchase.
