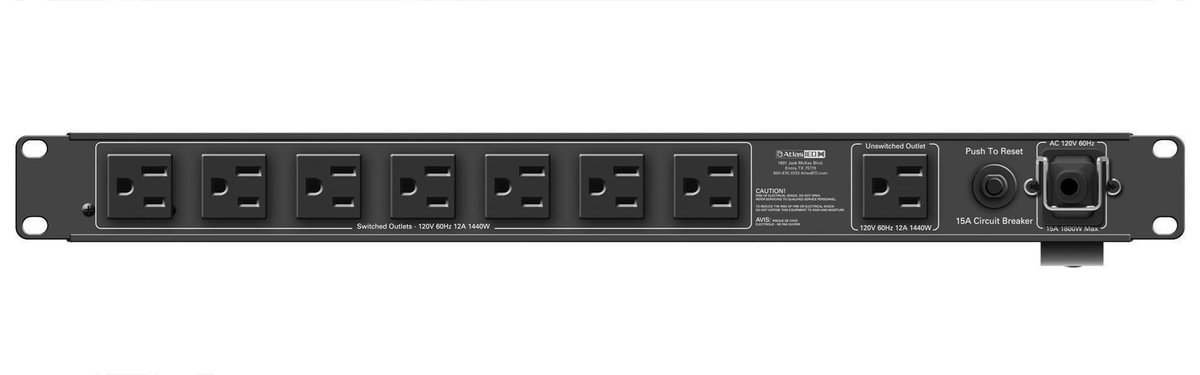

AtlasIED AP-S15LA 15LA Power Conditioner and Distribution Unit with IEC Power Cord and Lamp
The AtlasIED AP-S15LA is a 15LA power conditioner and distribution unit with IEC power cord and lamp. The AP-S15LA features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. It measures 1.75" (44.5mm) high, 19" (482.6mm) wide, and 5" (127mm) deep. It is certified to MET (UL 1449) and carries a manufacturer warranty of 12 months from date of purchase.
| Part Number | AP-S15LA |
|---|---|
| Current Rating | 15 Amps |
| Certified to Safety Listing | MET (UL 1449) |
| Operating Voltage | 102-132VAC |
| Minimum Spike Clamping Voltage | 460 VRMS @ 3000A |
| Maximum Spike Clamping Voltage | 6000V |
| Power Consumption | 6 Watts |
| AC Mains Power Cord | 12' (4m) |
| Height | 1.75" (44.5mm) |
| Width | 19" (482.6mm) |
| Depth | 5" (127mm) |
| Weight | 5 lbs. (2.27 kg) |
| Warranty Period | 12 months from date of purchase |
