Audio-Technica AT5047 Cardioid Condenser Microphone

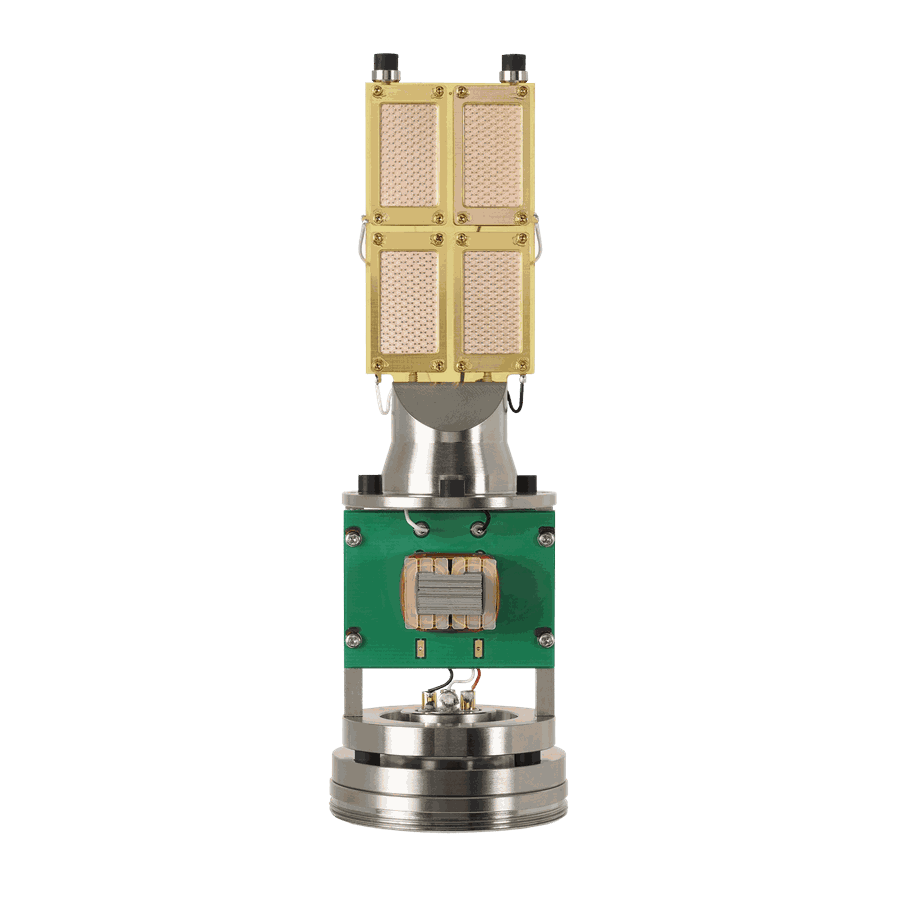

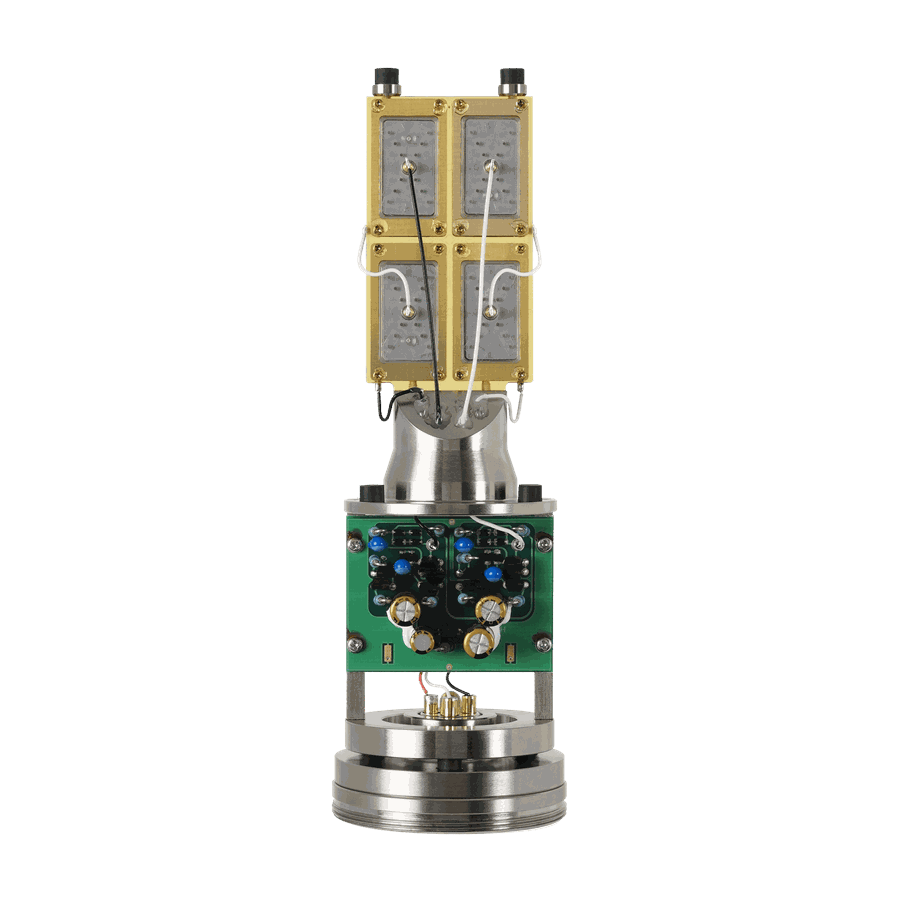

The AT5047 shares its capsule with the AT5040: four rectangular, 2-micron gold-vapor-deposited diaphragms wired together for roughly double the surface area of a standard 1-inch round element. What sets it apart is a transformer-coupled output, which gives the mic a consistent load impedance and a character preamp engineers associate with classic transformer-output designs, at low noise and with a 148 dB SPL handling ceiling.

Like the rest of the 50 Series, it is hand assembled and individually inspected, and housed in aluminum and brass finished in an elegant silver rather than the AT5040's black. It runs on standard 48V phantom power over a 3-pin XLRM output and is equally at home on lead vocal or close to acoustic instruments where transient detail matters.

  • OutputTransformer-coupled, 3-pin XLRM-type, low impedance balanced
  • Polar PatternCardioid
  • Frequency Response20–20,000 Hz
  • Phantom Power48V DC
  • Max SPL148 dB SPL
ElementFour 2-micron gold-vapor-deposited diaphragms forming one rectangular capsule
Polar Pattern
Frequency Response20–20,000 Hz
Max SPL148 dB SPL
OutputTransformer-coupled, 3-pin XLRM-type, low impedance balanced
48V DC
HousingAluminum and brass, silver finish
The Making of the AT5047 Studio Microphone
3items in the box
  • AT8480 shock mount for 5/8"-27 threaded stands
  • 3/8" to 5/8" stand adapter
  • Protective carrying case
