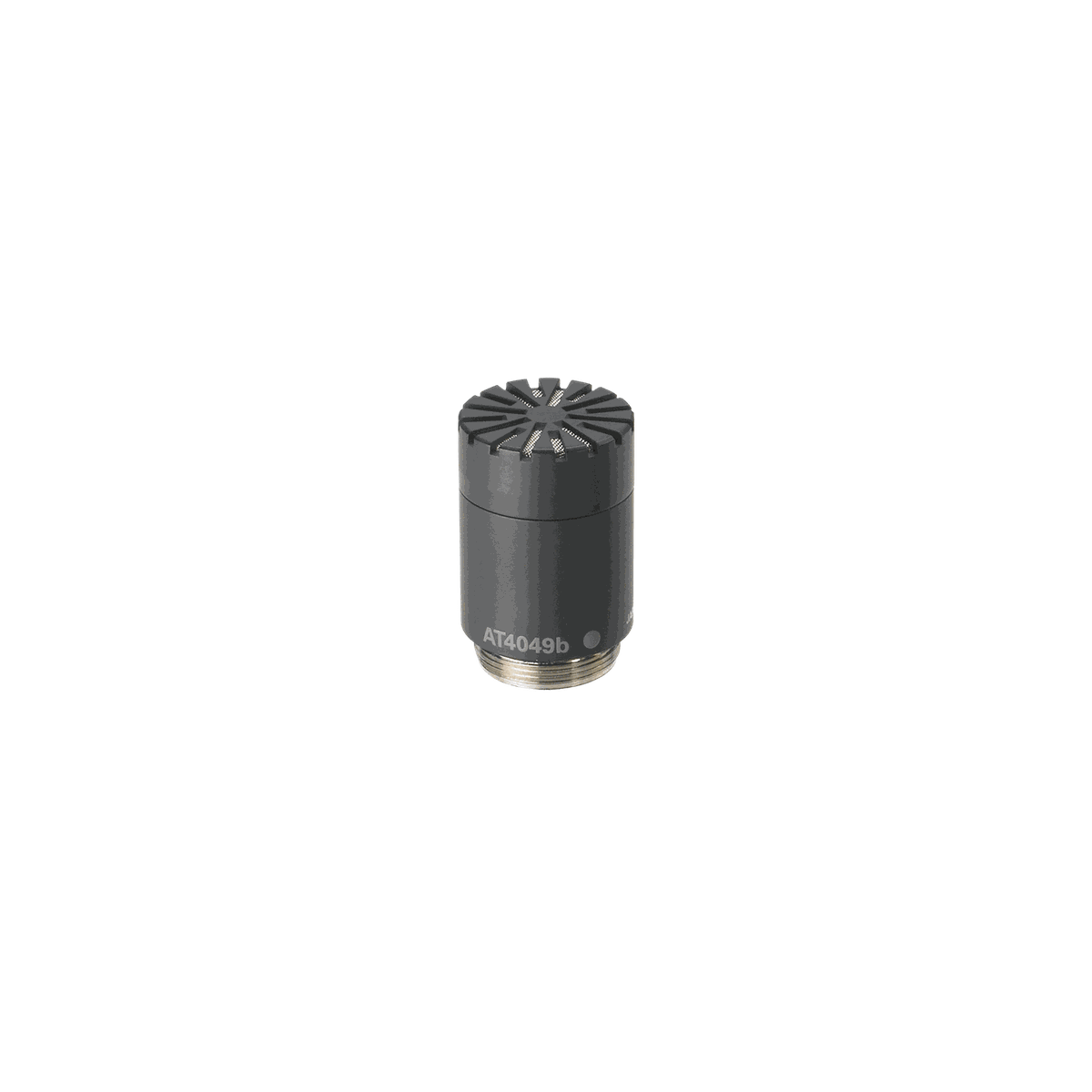

Audio-Technica AT4049B EL
The AT4049b-EL is the omnidirectional head capsule from Audio-Technica's 40-Series modular condenser system, the element half of the AT4049b studio microphone. Its externally polarized (DC bias) condenser element and true omnidirectional pattern give an open, uncolored response that captures a room, an ensemble, or an ambience pair without the proximity coloration of a directional mic.
The capsule threads onto the AT4900b-48 phantom-powered body (sold separately) to build a complete microphone, and swapping to a cardioid or hypercardioid head on the same body changes the pattern. Response runs 20 to 20,000 Hz with a switchable 80 Hz, 18 dB/octave roll-off handled at the body, so one investment in a body covers several patterns as the session demands.
| Type | Interchangeable head capsule (element only) |
|---|---|
| Polar Pattern | Omnidirectional |
| Element | Externally polarized (DC bias) condenser |
| Frequency Response | 20-20,000 Hz |
| Low-Frequency Roll-Off | 80 Hz, 18 dB/octave |
| System | Mounts on the AT4900b-48 modular body (sold separately) |
