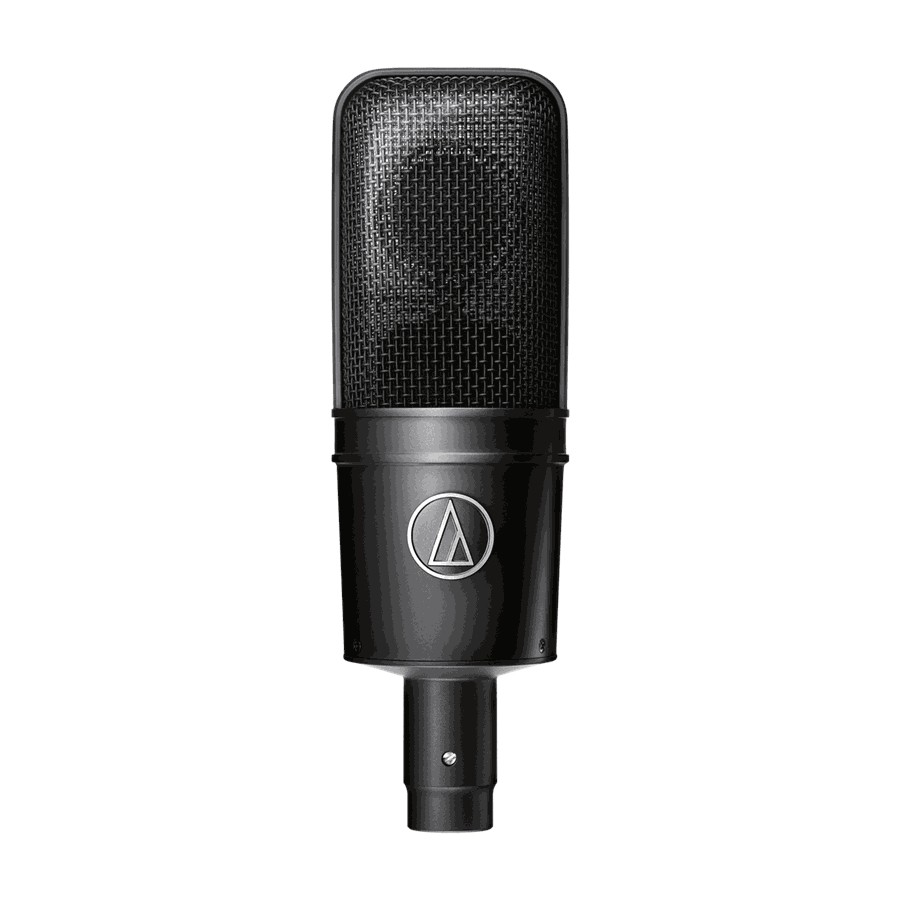

Audio-Technica AT4040 Cardioid Studio Condenser Microphone

The AT4040 is a side-address cardioid studio condenser whose large, precisely tensioned diaphragm gives a smooth, natural sound that flatters vocals and instruments alike. It marries advanced electronics with a transformerless design for low noise and fast, accurate transients. The cardioid pattern and high headroom let it move easily from a soft vocal to a loud guitar cabinet.

It handles up to 145 dB SPL, with a 10 dB pad extending that to 155 dB for the loudest sources. A switchable 80 Hz high-pass filter helps control low-end rumble and proximity. It runs on 48V phantom power over a 3-pin XLR output, and its versatility has made it one of the most widely used condensers in its class.

  • OutputIntegral 3-pin XLRM-type
  • Polar PatternCardioid
  • Frequency Response20–20,000 Hz
  • Phantom Power48V DC
  • Impedance100 Ω
ElementExternally polarized (DC bias) , large diaphragm
Polar Pattern
Frequency Response20–20,000 Hz
Impedance100 Ω
Max SPL145 dB SPL (155 dB with 10 dB pad)
48V DC
OutputIntegral 3-pin XLRM-type
Audio-Technica AT4040 Large Diaphragm Cardioid Condenser Microphone
Audio-Technica AT4040 Condenser Mic Review / Test
3items in the box

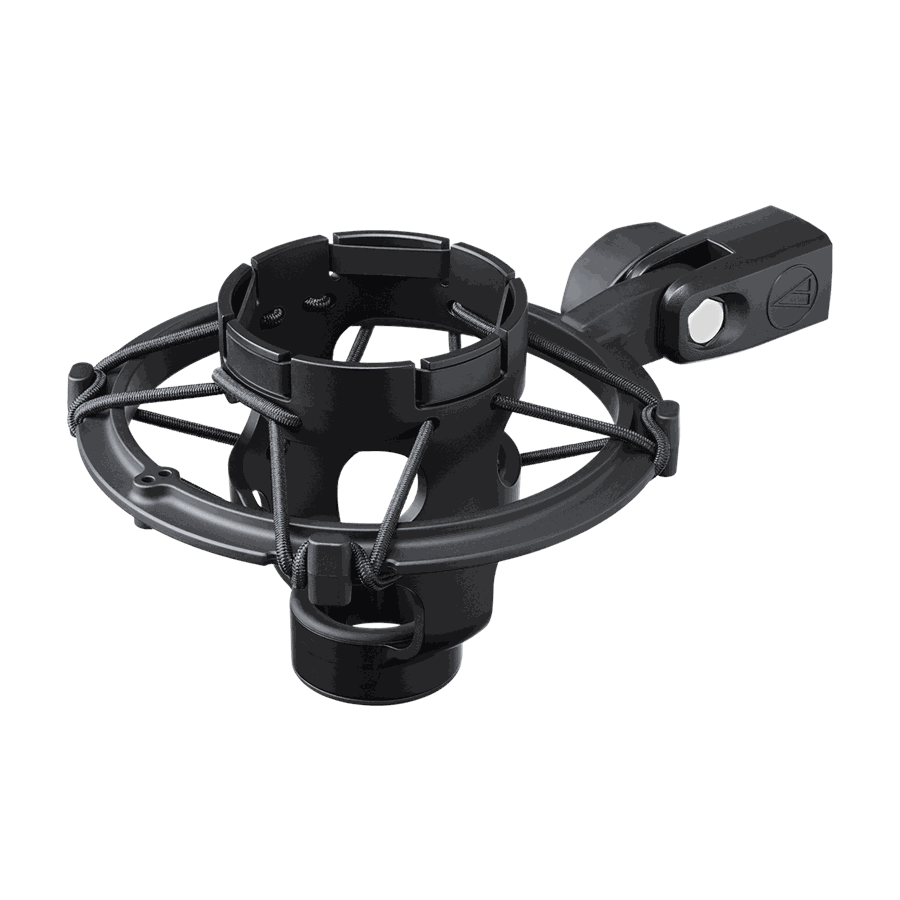

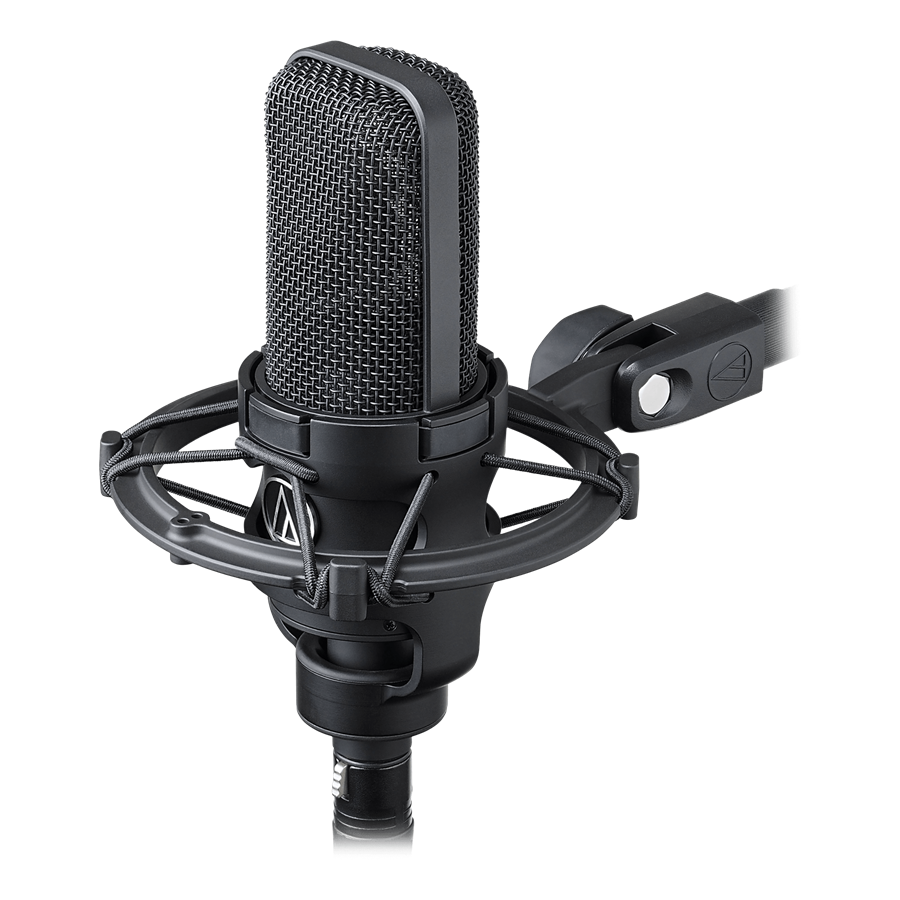

  • AT8449a shock mount for 5/8"-27 threaded stands

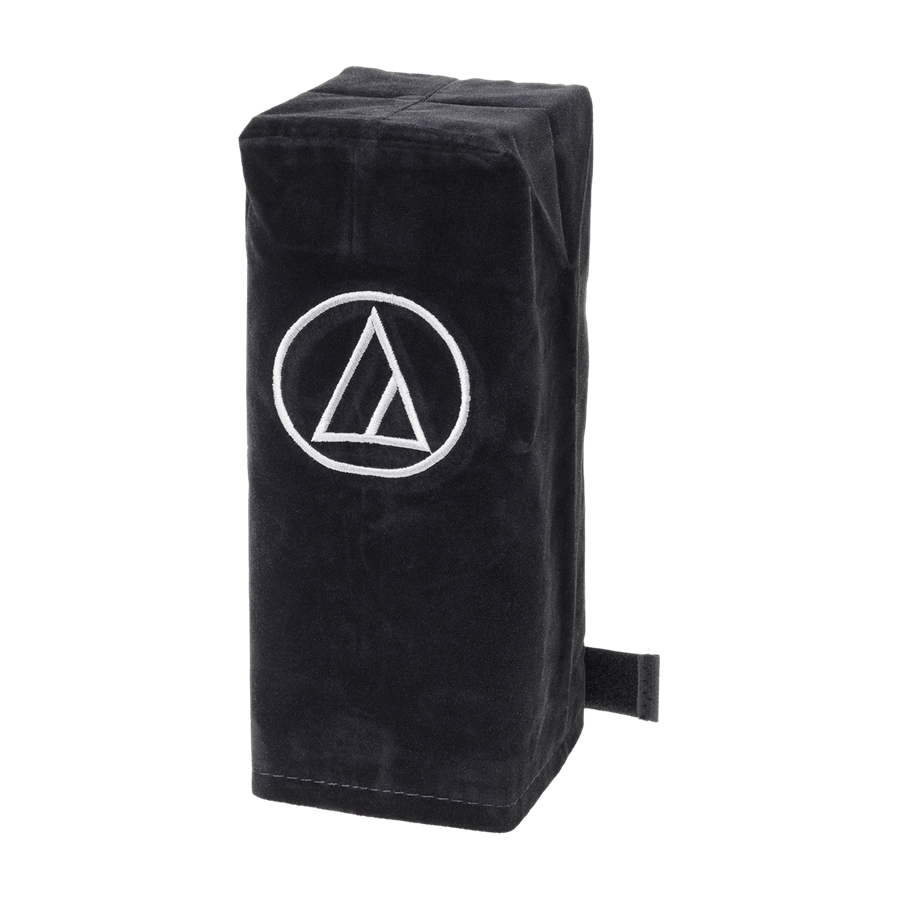

  • Microphone dust cover

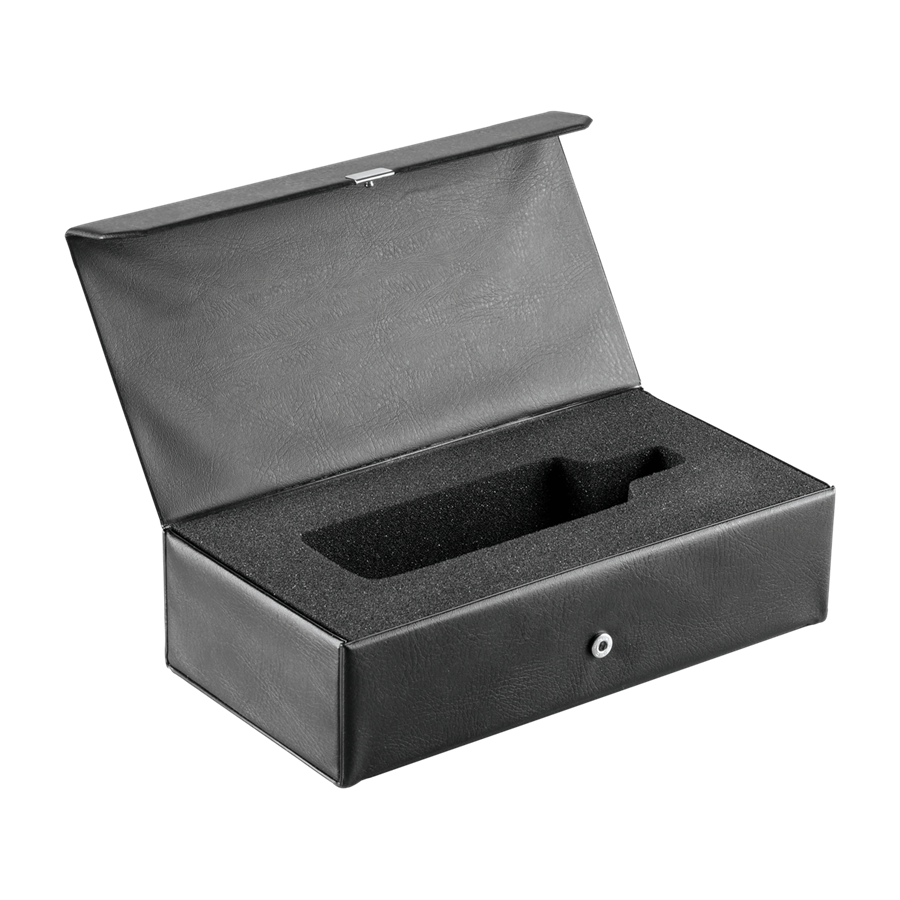

  • Protective carrying case
