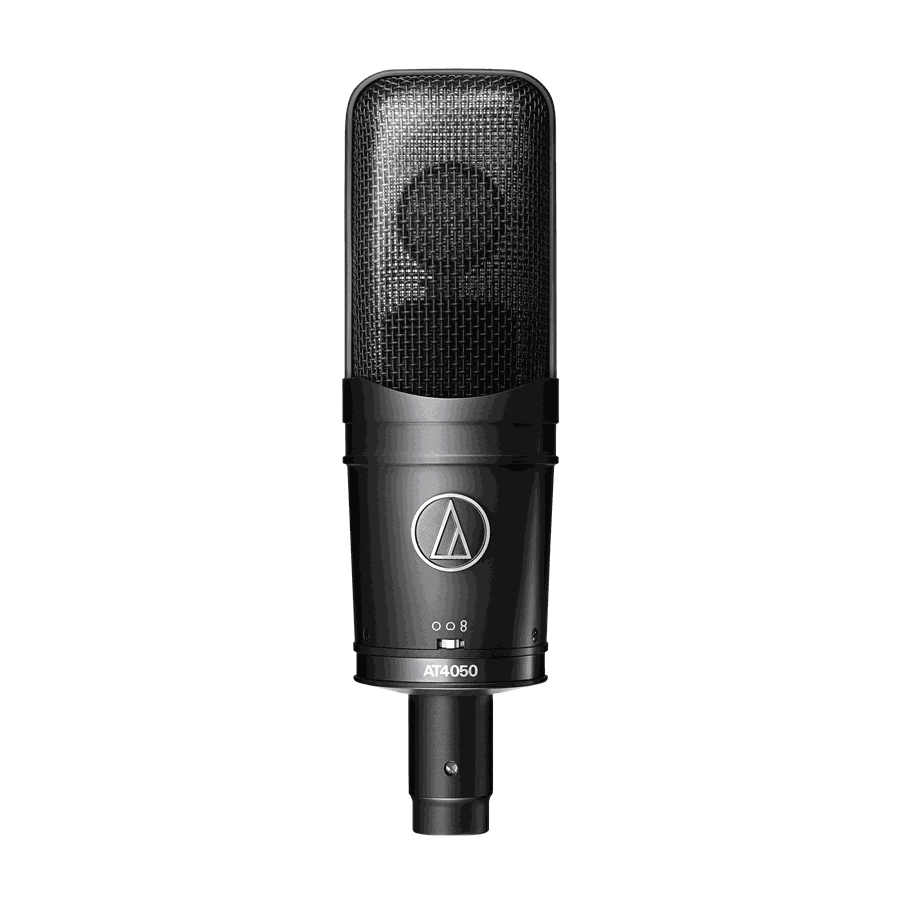

Audio-Technica AT4050
The AT4050 is a large-diaphragm multi-pattern studio condenser that has become a genuine studio standard. A switch selects cardioid, omnidirectional, or figure-of-eight, so it captures every nuance across vocals, drums, room, and stereo techniques. Dual large diaphragms and transformerless electronics give it a remarkable combination of detail, low noise, and high headroom.
It handles up to 149 dB SPL, with a 10 dB pad extending that to 159 dB for the loudest sources. A switchable high-pass filter helps manage low-end buildup in close placement. It runs on 48V phantom power over a 3-pin XLR output and remains a first call for engineers who want one mic that does almost everything well.
| Element | Externally polarized condenser, large diaphragm |
|---|---|
| Polar Pattern | Cardioid / Omnidirectional / Figure-of-eight (switchable) |
| Frequency Response | 20–18,000 Hz |
| Impedance | 100 Ω |
| Max SPL | 149 dB SPL (159 dB with 10 dB pad) |
| Phantom Power | 48V DC |
| Output | Integral 3-pin XLRM-type |
