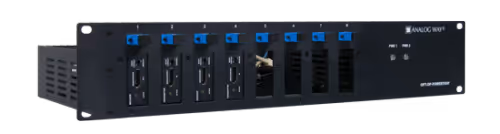

Analog Way DisplayPort 1.2 Fiber Extender Power Tray

The OPT-DP-POWERTRAY turns a loose handful of EXT-DP12-OPT extenders into a rack-mounted patch point. Eight units fit in the 2RU enclosure in any mix of transmitters and receivers, each independently powered from a pair of load-sharing AC/DC supplies. If one supply fails the other carries the tray, and both report their state on a front panel LED alongside the mirrored status LEDs of the extenders themselves, so a fault is visible without pulling the rack apart.

It ships ready to populate: eight 220 mm OM3 single-channel SC optic jumpers, eight power leads sized for the extenders, mounting screws, two mains cords and the quick start guide are in the box. The chassis measures 482 x 88 x 226 mm without rack ears and weighs 3.6 kg empty, 4.8 kg shipped with the accessories.

ReferenceOPT-DP-POWERTRAY
CapacityUp to 8 DisplayPort 1.2 optical extenders, any mix of transmitters and receivers
Compatible ExtendersEXT-DP12-OPT kit
Rack Size2RU
Dimensions482 x 88 x 226 mm (18.97 x 3.46 x 8.89 in) without rack ears
Weight3.6 kg (7.93 lb) without accessories
Power SupplyDual redundant load-sharing AC/DC, 90 - 264 VAC, 47 - 63 Hz, 5 V 10 A output each
Maximum Consumption5 V DC, 2.2 A with 8 extenders fitted
Supplied With8 x OM3 1-channel SC 220 mm fiber jumpers, 8 x power leads, 8 x screws, 2 x mains cords
Operating Temperature0 to 40 C (32 to 104 F)
