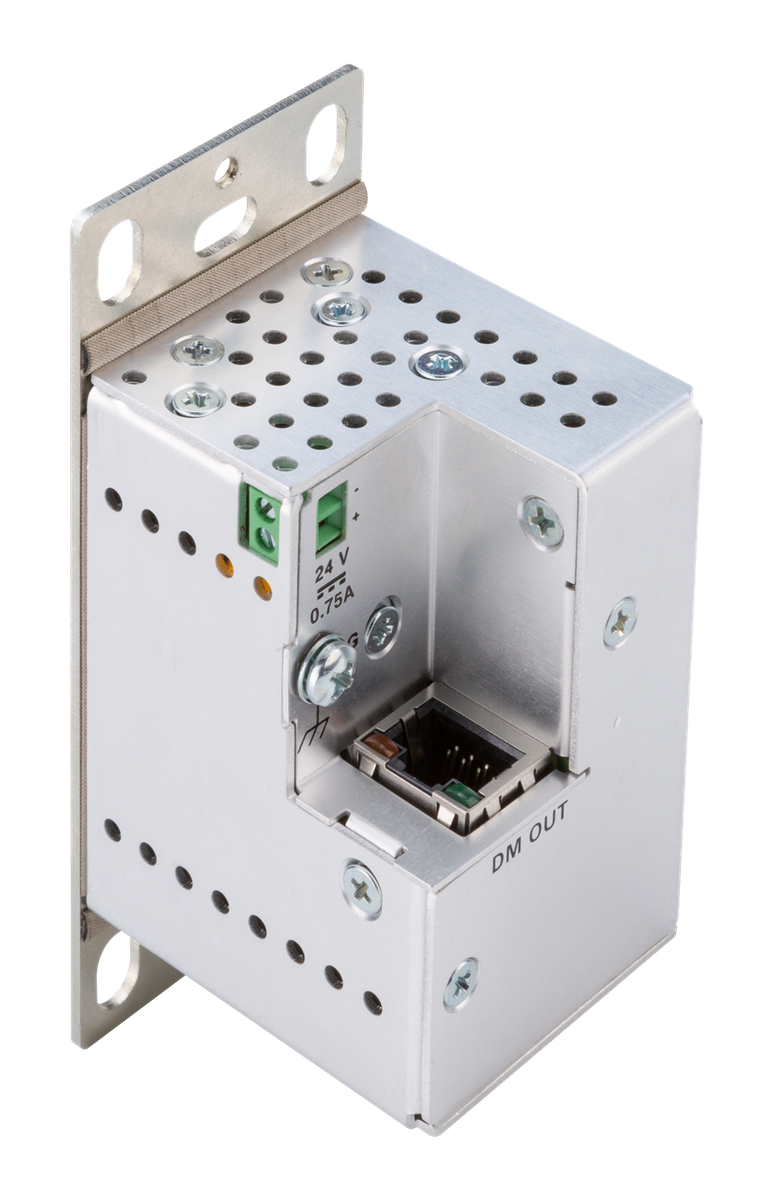

Crestron DM-TX-4KZ-100-C-1G DigitalMedia 8G+ 4K60 4:4:4 HDR Wall Plate Transmitter

The Crestron DM-TX-4KZ-100-C-1G-B-T is a DigitalMedia 8G+ 4K60 4:4:4 HDR Wall Plate Transmitter. DigitalMedia 8G+ carries video, audio, Ethernet, control and power down one Category cable, so each end of a run terminates in a single device.

Outputs carry DM 8G+ and HDBaseT with HDR10, Deep Color, 3D, and 4K60 4:4:4 support. Copy protection is HDCP 2.2. Input Signal Types: HDMI with HDR10, Deep Color, 3D, and 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible). It is set up and monitored from the same Crestron control program and XiO Cloud account as the rest of the estate.

  • Input Signal TypesHDMI with HDR10, Deep Color, 3D
  • Output Signal TypesDM 8G+ and HDBaseT with HDR10, Deep Color, 3D
  • Power over DM (PoDM)IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD
  • Weight8 oz
  • Copy ProtectionHDCP 2.2
Input Signal Types with HDR10, Deep Color, 3D, and 4K60 4:4:4 support (DVI and Dual-Mode DisplayPort interface compatible)
Output Signal TypesDM 8G+ and HDBaseT with HDR10, Deep Color, 3D, and 4K60 4:4:4 support
FormatsDolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS ES, DTS 96/24, DTS-HD High Res, DTS HD Master Audio, DTS:X, LPCM up to 8 channels
Copy ProtectionHDCP 2.2
Power Over DM (PoDM)IEEE 802.3at Type 1 Class 3 (12.95 W) compliant PoDM PD, capable of being powered by PoDM PSE (Power Sourcing Equipment)
Power Over HDBaseTIEEE 802.3at Type 1 Class 3 (12.95 W) compliant HDBaseT PD (Powered Device), capable of being powered by an HDBaseT PoE PSE (Power Sourcing Equipment)
Power ConsumptionWith PoDM or HDBaseT PoE: 5.43 W typical 3.25 W idle With 24 VDC: 5.55 W typical 3.31 W idle
Temperature32 deg to 95 deg F (0 deg to 35 deg C)
Weight8 oz (227 g)
