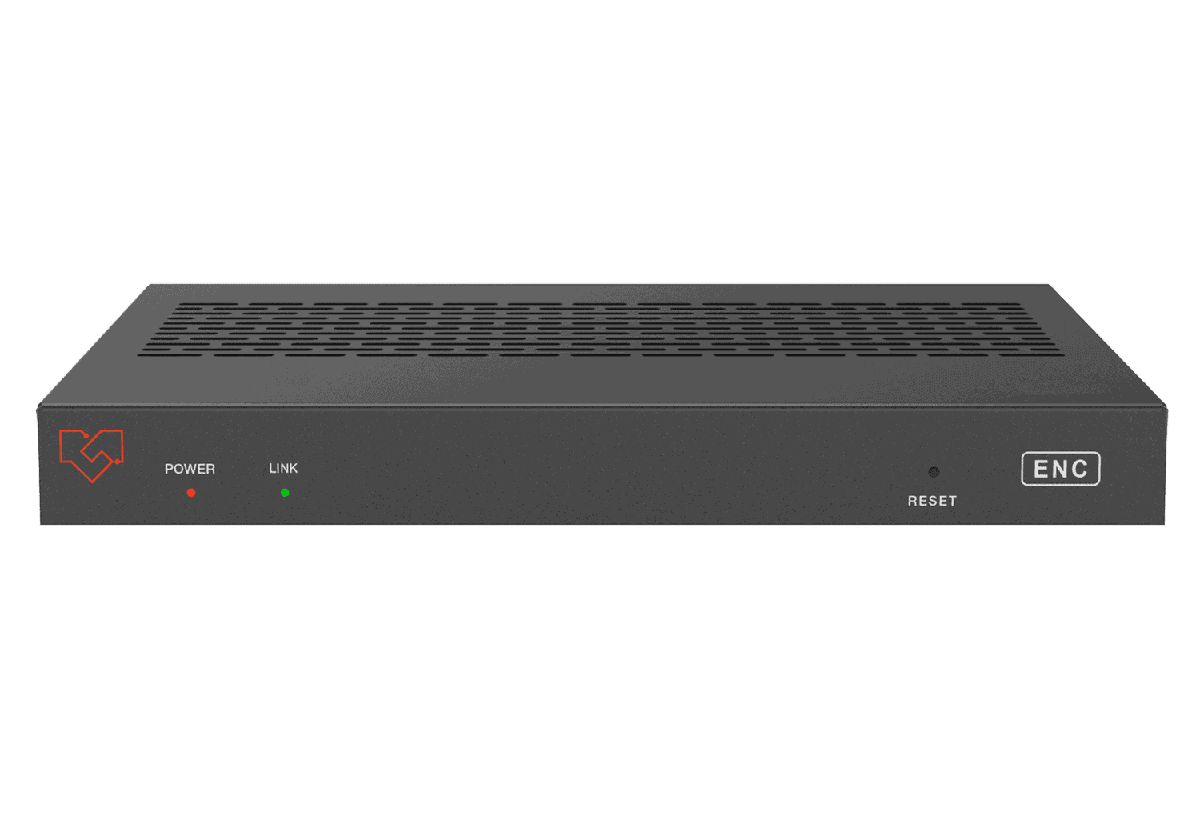

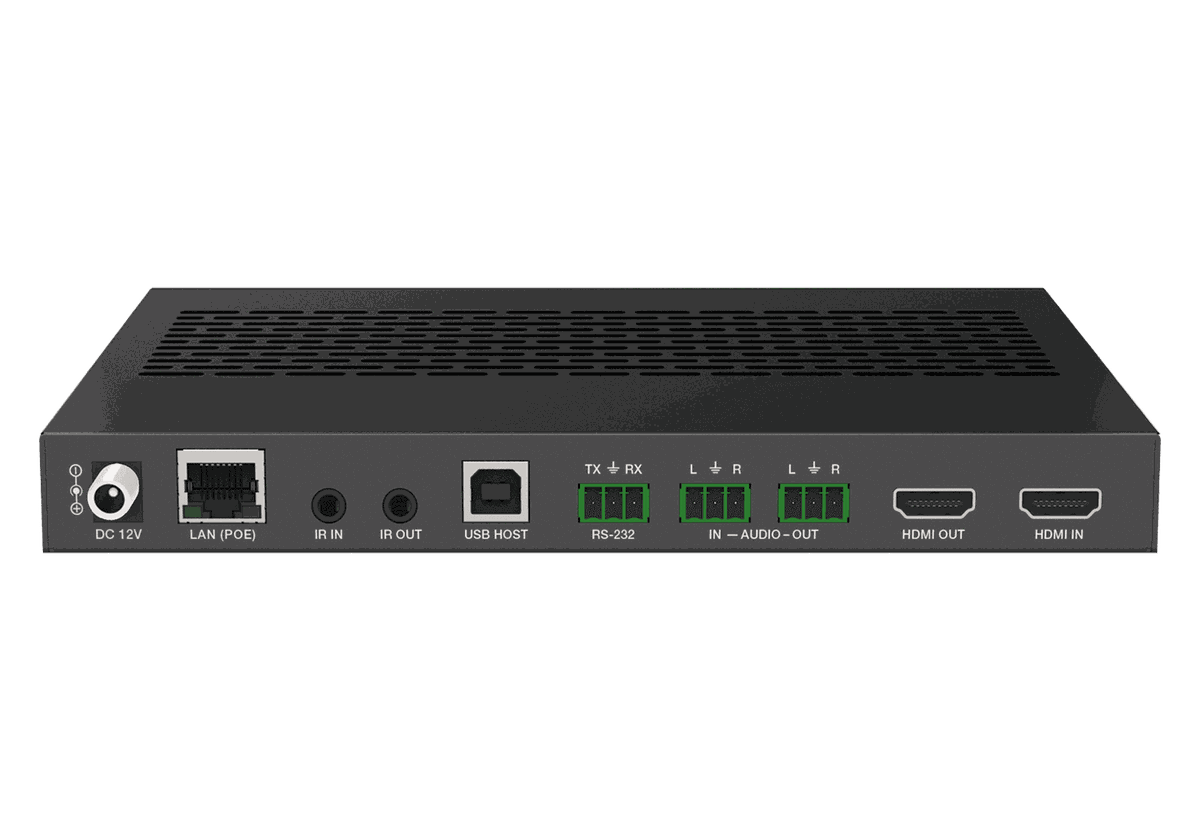

VigilLink VLIP-JPH4K3K-EC 1G JPEG2000 4K AVoIP Transmitter with Preview Stream

The VLIP-JPH4K3K-EC encodes near-lossless JPEG2000 video onto a standard 1G network, accepting up to 4K60 4:4:4 and outputting 4K30 4:4:4 at HDMI 2.0b and HDCP 2.2. What distinguishes it from the plain encoder is a second, standard H.265 preview stream carried on its own VLAN ID.

That separate preview stream lets a control system or a monitoring wall watch every source without touching the video network. Routing covers unicast and multicast, point-to-point, matrix, and video wall up to 9x9. USB 2.0 KVM, two-way IR, bidirectional RS-232, and CEC travel over Ethernet, with PoE power and control from the web GUI, TCP, or RS-232 up to 328 feet (100 meters).
