VigilLink VLIP-SD10G-CTRL SDVoE AVoIP Controller

The VLIP-SD10G-CTRL manages an SDVoE system over IP, automatically discovering the encoders and decoders on the network so commissioning does not begin with a spreadsheet of addresses.

It carries two Ethernet ports and two RS-232 ports, giving IP control through a web UI and Telnet alongside serial control for a third-party processor. Two USB 2.0 ports handle local peripherals.

Control Method	LAN (Web UI & Telnet), RS232
Power Supply	DC 12V; PoE
Power Consumption	3.8W (Max)

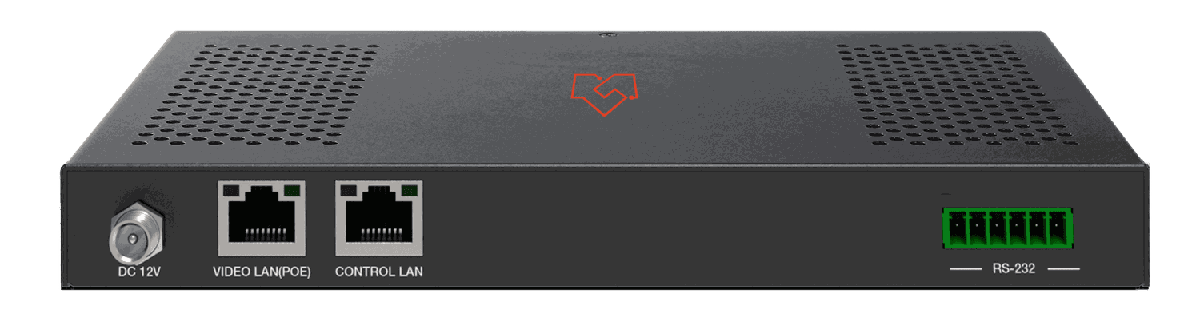

Input/Output Port	1 x LAN (AV PoE) (10/100/1000 Mbps) 1 x LAN (Control) (10/100/1000 Mbps) 2 x RS232

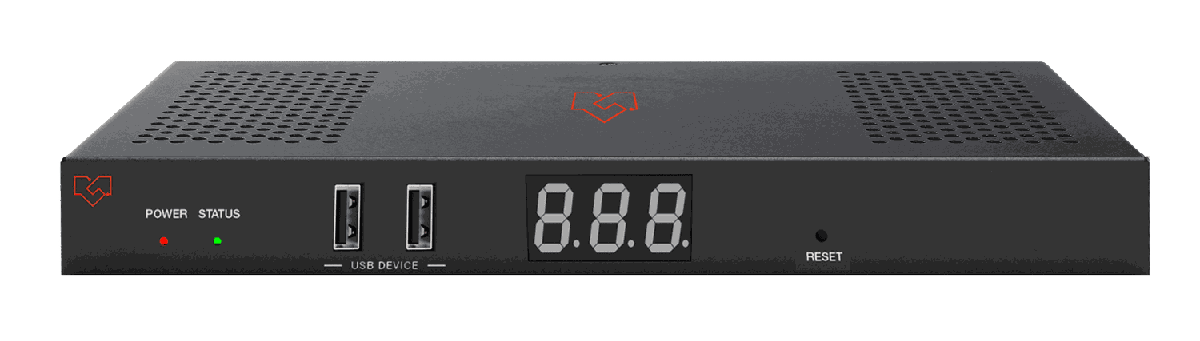

LED Indicators	1 x Status LED, 1 x Power LED
Button	1 x Reset Button
Unit Dimensions	215 mm x 25 mm x 120 mm / 8.46'' x 0.98'' x 4.72''
Unit Net Weight (without accessories)	1.52 lbs (0.69kg)
