Vaddio PresenterPOD System

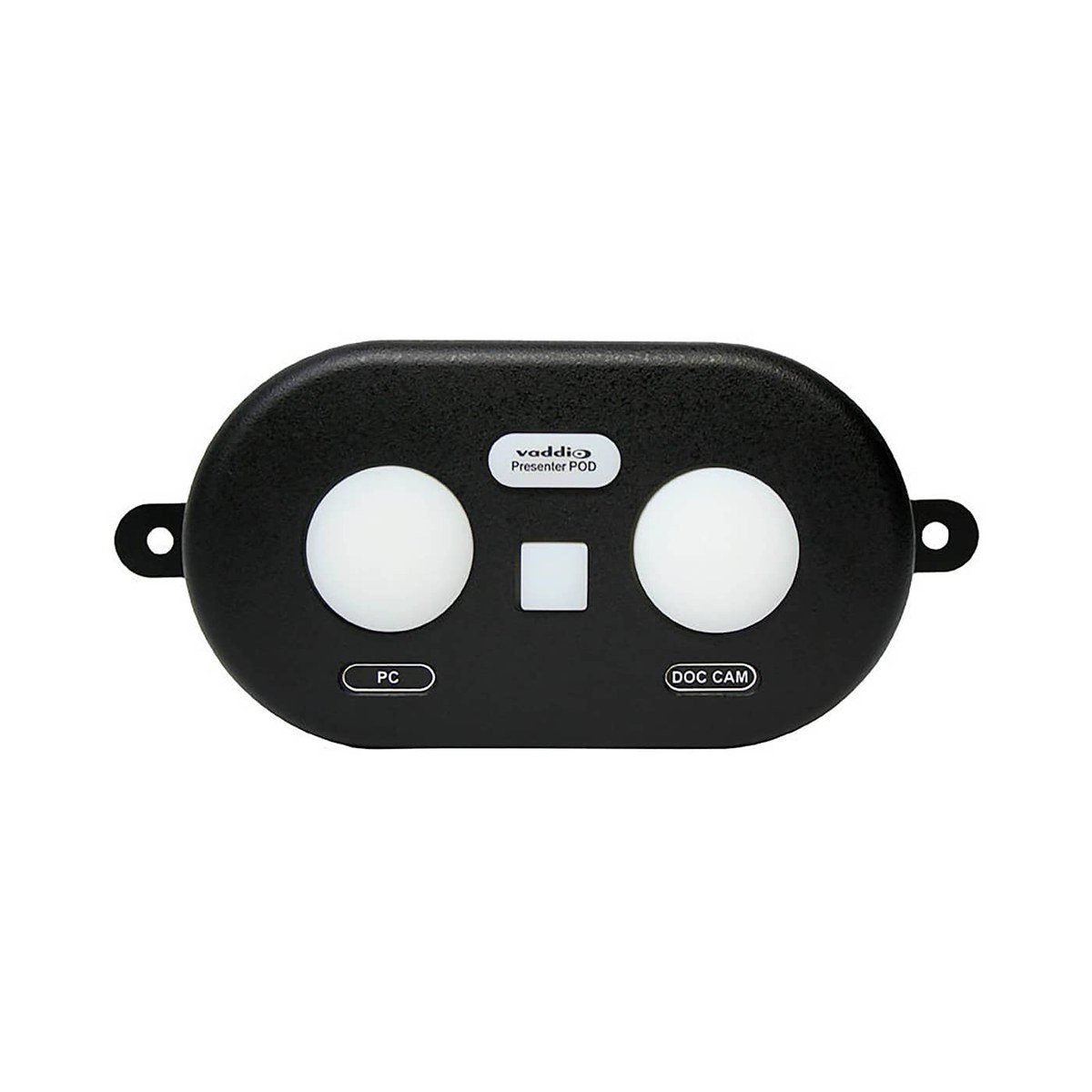

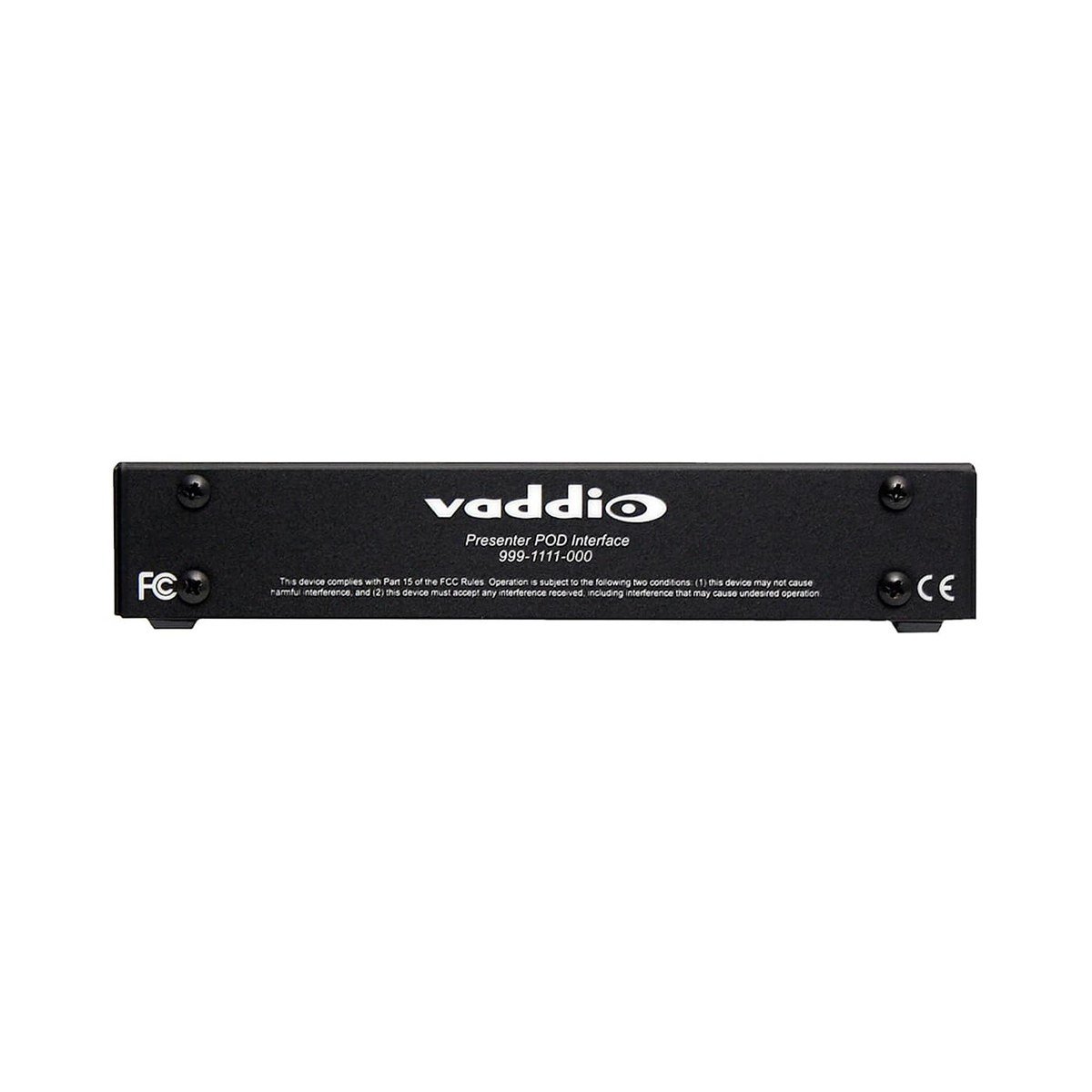

The PresenterPOD is the button a presenter presses when nobody wants to explain a control system to them. A blue back-lit logo button turns red when triggered, three more manual buttons sit alongside it with blue LED backlights, and the interface box behind it puts out four trigger outputs on Phoenix connectors that a switcher, a camera or a lift can act on. A ten-position DIP switch sets each trigger latching or momentary.

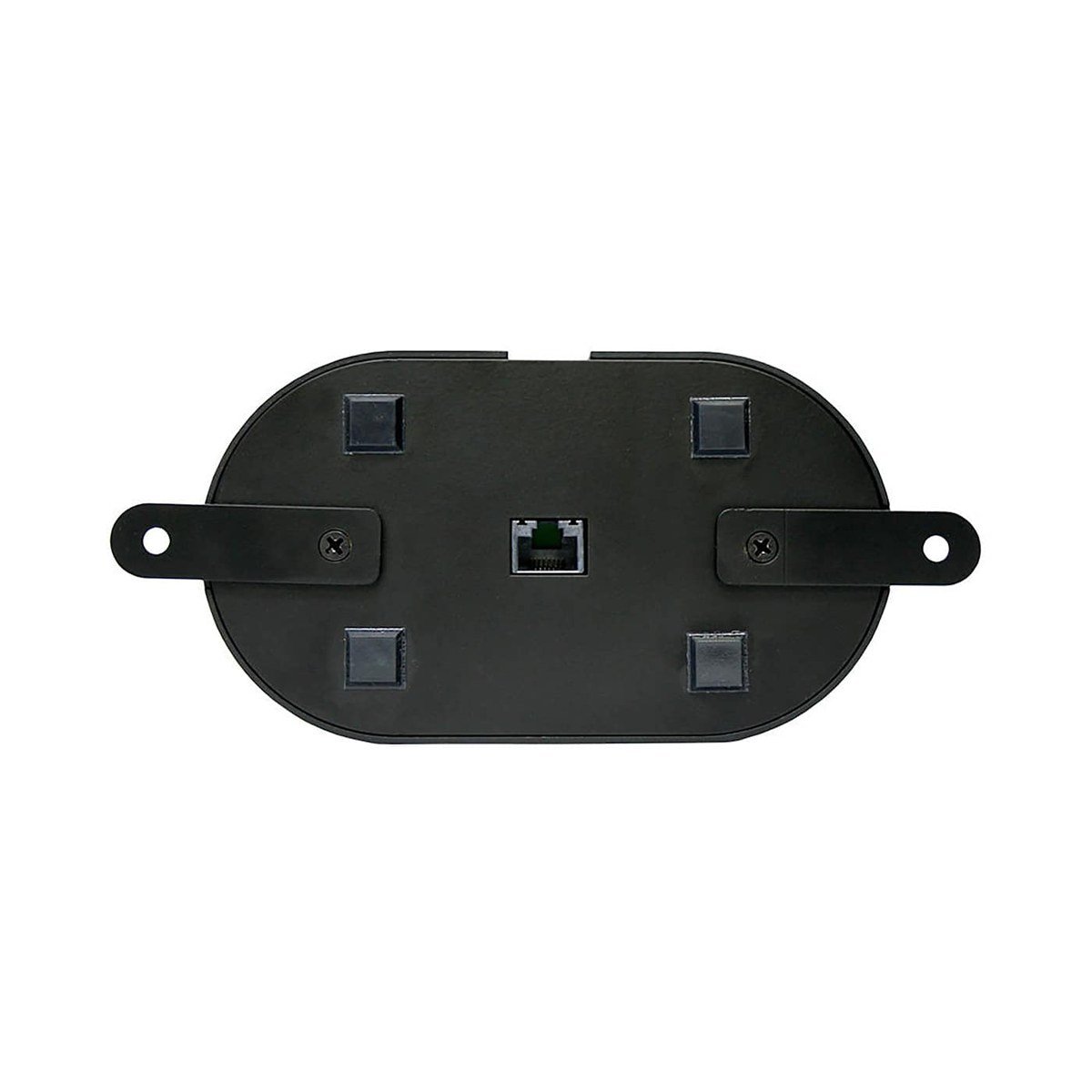

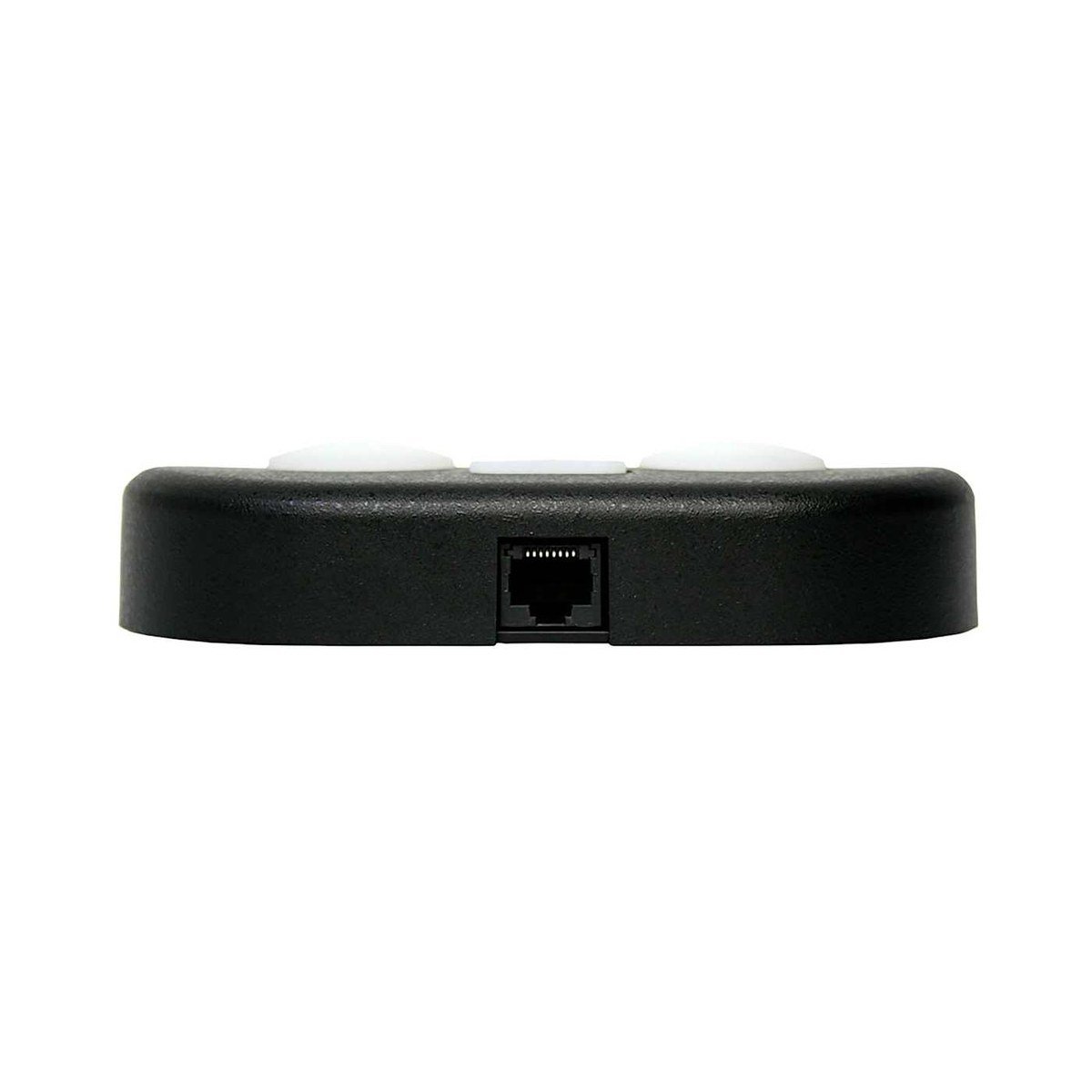

The POD and the interface talk over a single Cat-5e cable that carries both power and data, and each interface supports two PODs. There are RJ-45 jacks on the back and the bottom of the POD for cable routing, though only one is used at a time. A sheet of 30 adhesive labels, pre-printed and blank, ships with it for marking the buttons. Power is a PowerRite 12 VDC 1.0 A supply. This is the North American part number, 999-1111-000.
