Sennheiser GZL RG 58 Antenna Cable

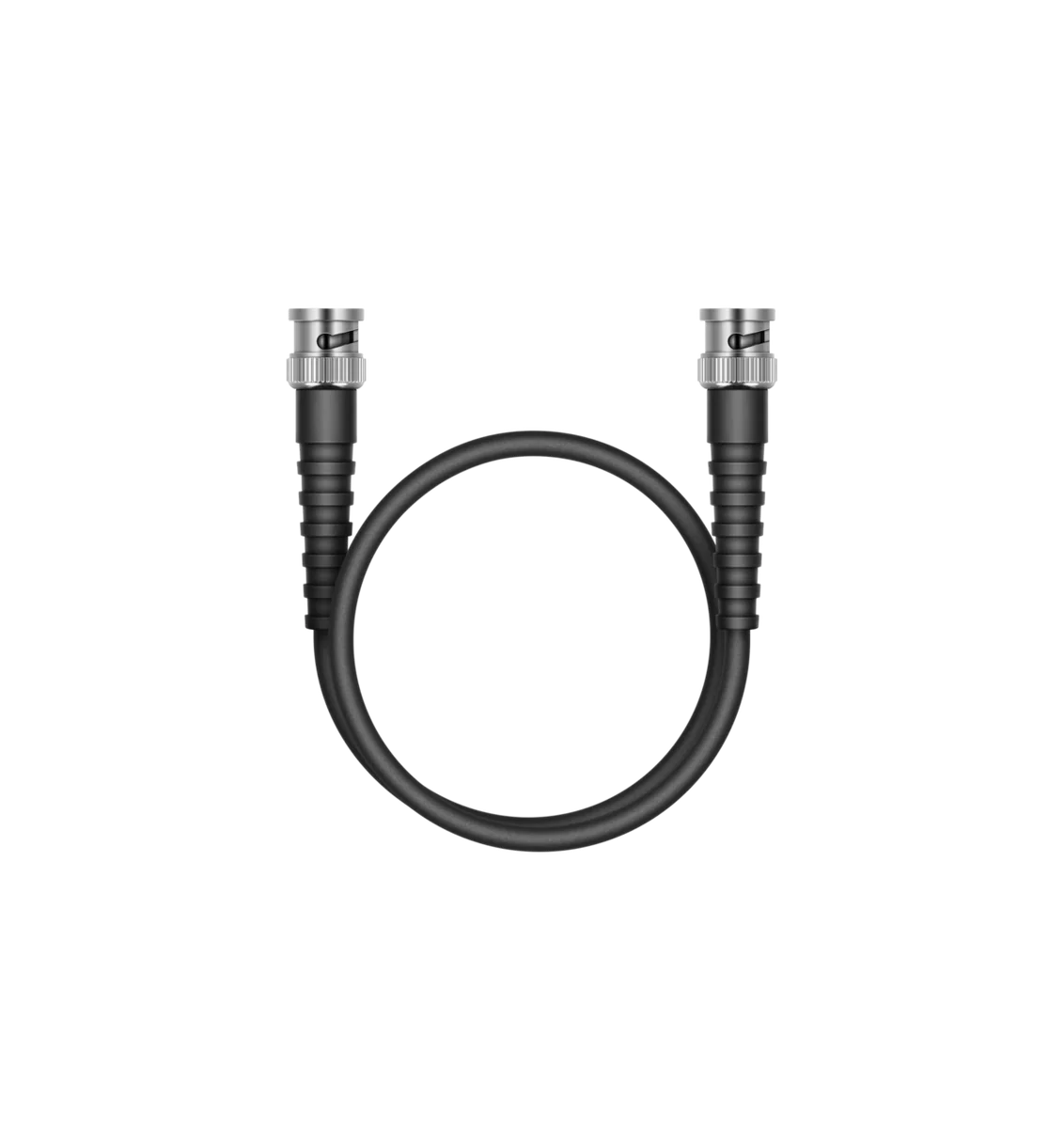

The GZL RG 58 is a BNC-terminated coaxial cable for moving a wireless receiver's antenna away from the rack, out to a wall mount, ceiling mount, or remote antenna position with minimal signal loss over run lengths up to 10 meters. Both ends terminate in BNC connectors, so it drops straight into the antenna ports on Sennheiser receivers, splitters, and combiners.
It is rated to 1000 MHz, well above the UHF wireless bands it is built for, and its -40 to 85 degrees C temperature range holds up in a truck pack, an unconditioned equipment closet, or a rooftop antenna run.
| Connector | BNC (both ends) |
|---|---|
| Impedance | 50 ohm |
| Cable Diameter | 6.15 mm |
| Max. Attenuation @ 400 MHz | 34.8 dB / 100 m |
| Max. Operating Frequency | 1000 MHz |
| Operating Temperature | -40 to 85 degrees C |
| Available Lengths | 0.25 m, 0.5 m, 1 m, 5 m, 10 m |
