Shop all Sennheiser

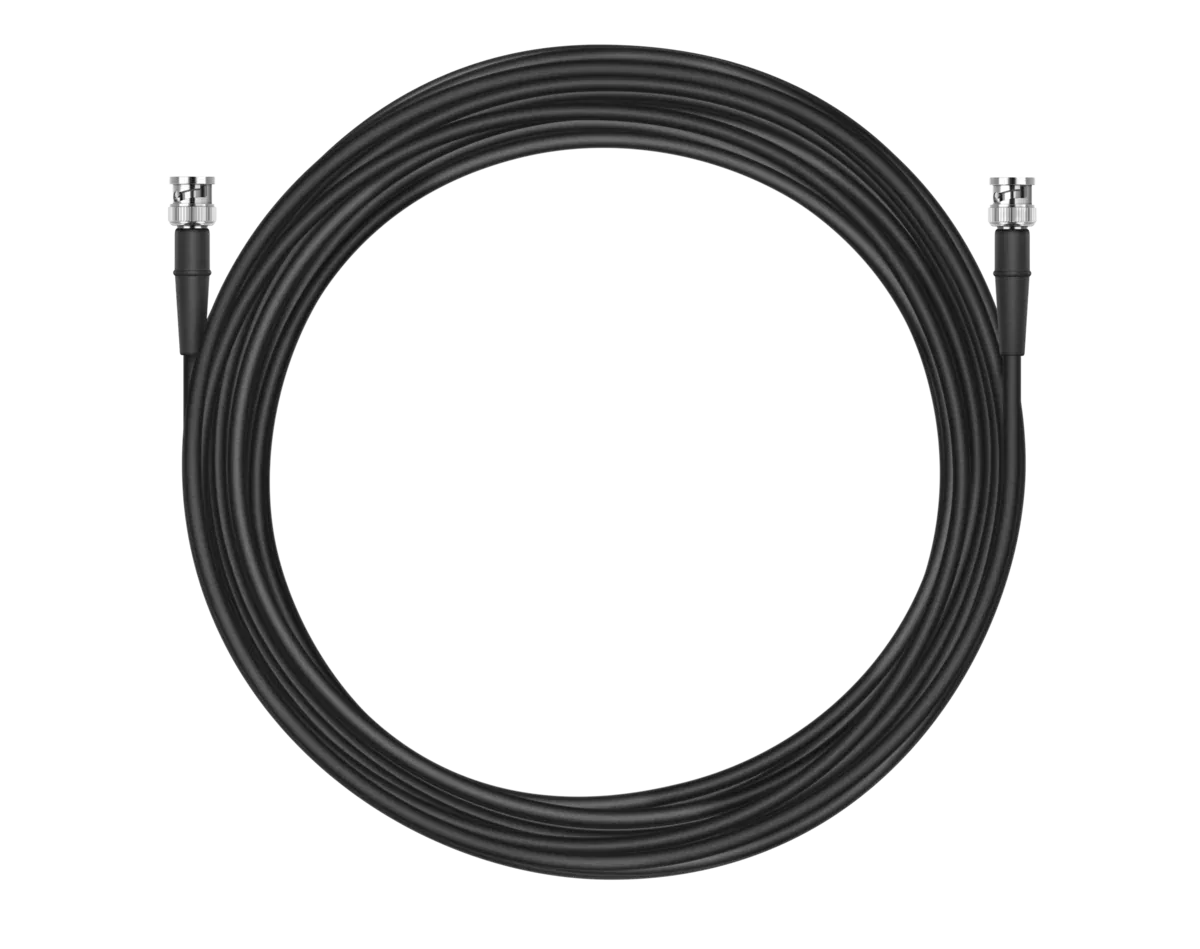

Sennheiser GZL RG 8x Low-Damping Antenna Cable
The GZL RG 8x is Sennheiser's low-damping antenna cable, built for the longer remote-antenna runs where the thinner RG 58 starts to bleed too much signal. At 400 MHz it holds attenuation to about half that of the RG 58, which is what makes the 20 meter run usable without a signal booster in the middle of the line.
Both ends terminate in BNC connectors for a direct connection to a receiver, splitter, or combiner's antenna port, and its 4000 MHz frequency ceiling leaves headroom well above any UHF wireless band.
| Connector | BNC (both ends) |
|---|---|
| Impedance | 50 ohm |
| Cable Diameter | 6.8 mm |
| Max. Attenuation @ 400 MHz | 16.8 dB / 100 m |
| Max. Operating Frequency | 4000 MHz |
| Operating Temperature | -40 to 70 degrees C |
| Available Lengths | 5 m, 10 m, 20 m |
