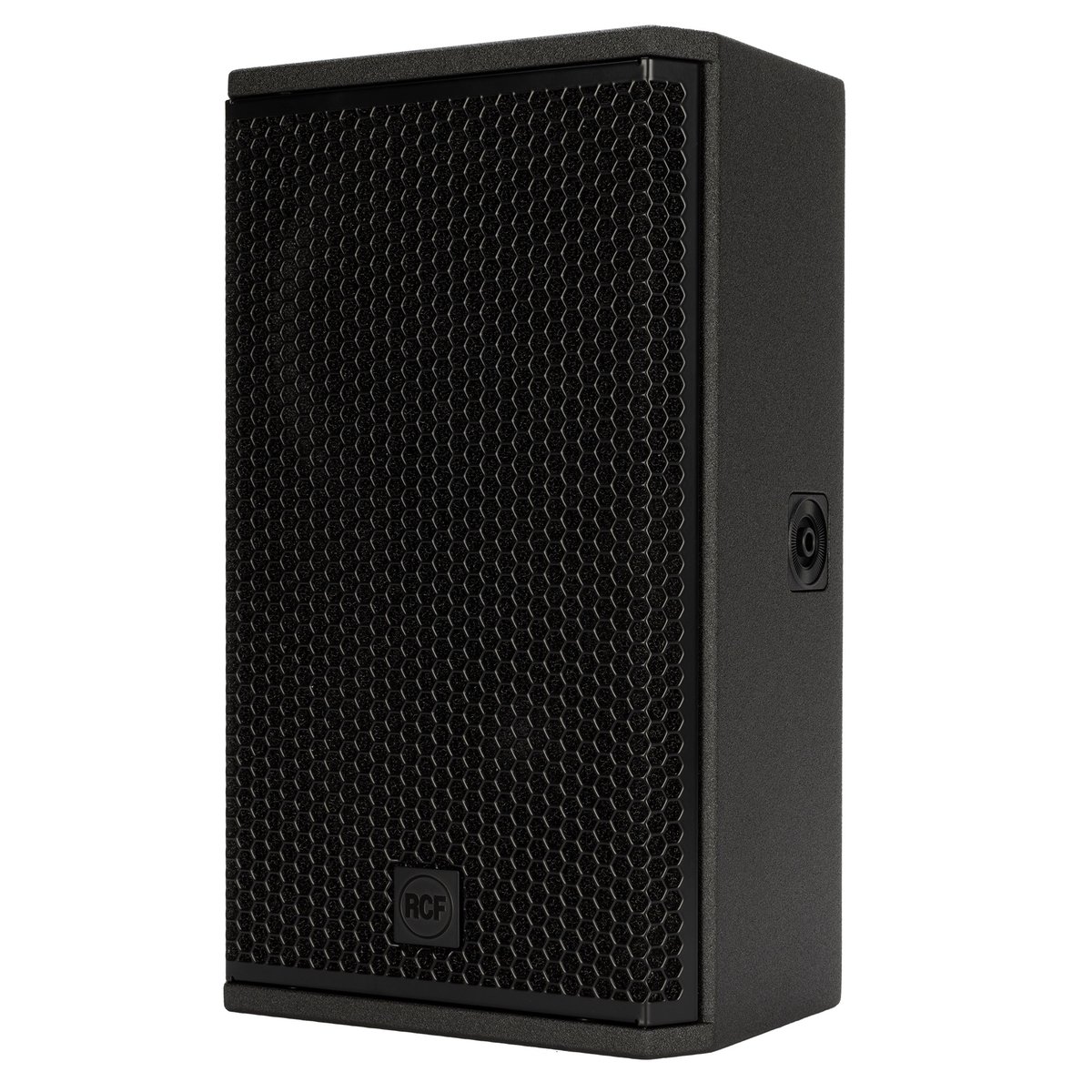

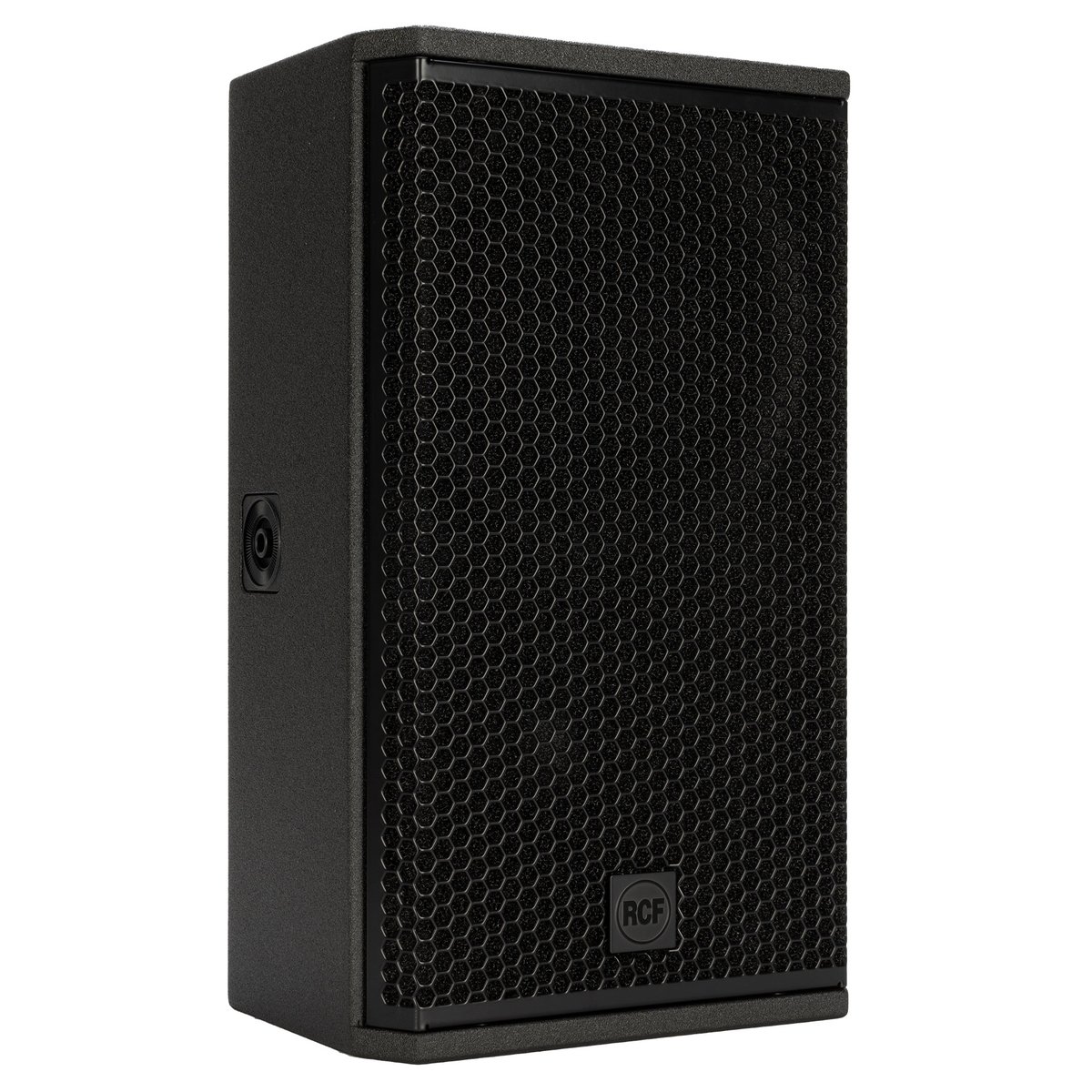

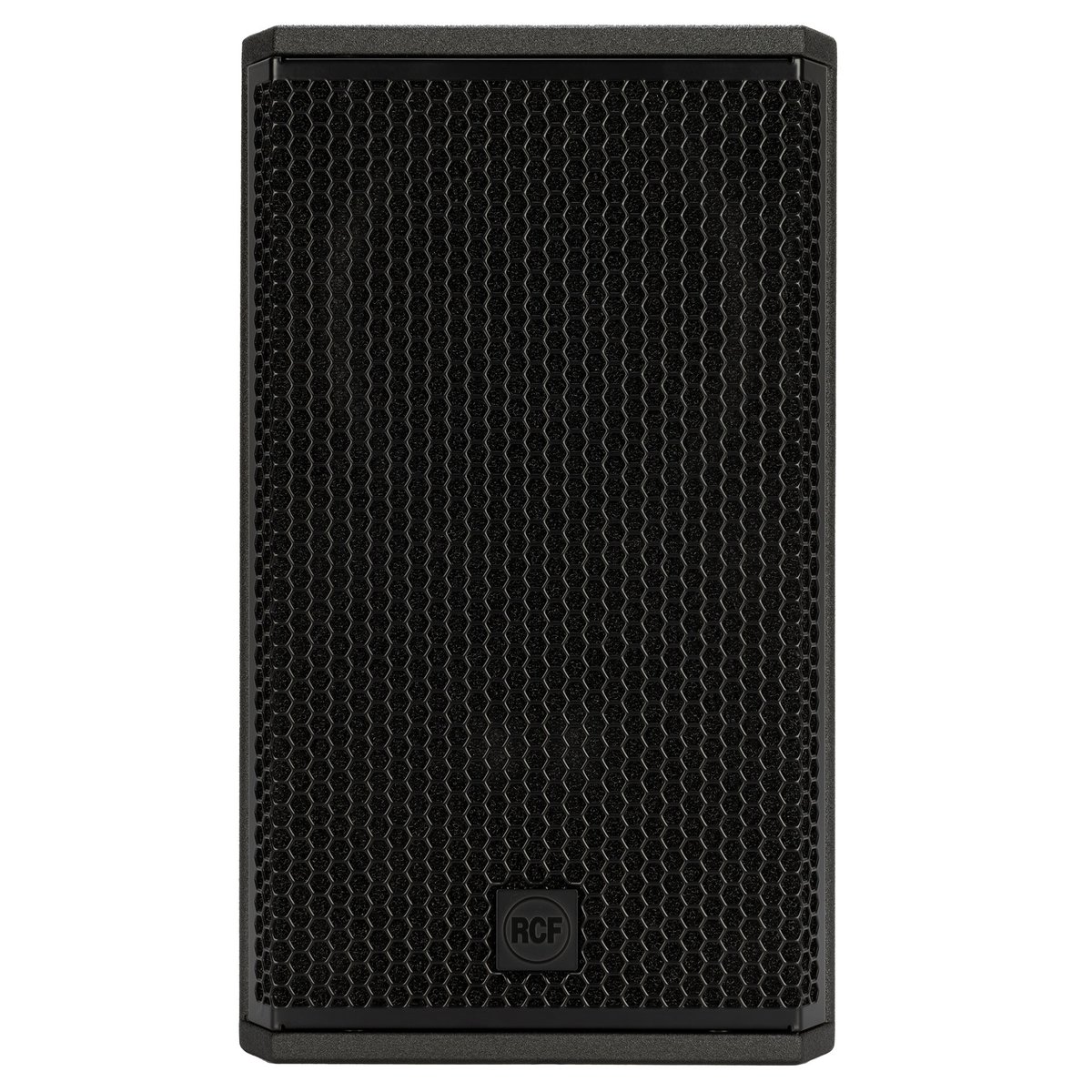

RCF KX 10-A Active Two-Way Point-Source Speaker

The KX 10-A puts a 10-inch neodymium woofer behind the same True Resistive Waveguide architecture as the rest of the KX range, here with a 100 by 50 degree pattern. The narrower vertical window suits longer, deeper rooms where a wide-pattern box would waste energy on the ceiling. The waveguide rotates 90 degrees for horizontal mounting.

A 1.75-inch PKX dome compression driver crosses over at 1600 Hz, and a 2000 W peak amplifier delivers 130 dB from 60 Hz to 20 kHz. RDNet over Ethercon handles system DSP and monitoring, mains connect via Powercon TRUE1 TOP, and the Baltic birch cabinet weighs 30.86 lbs.
