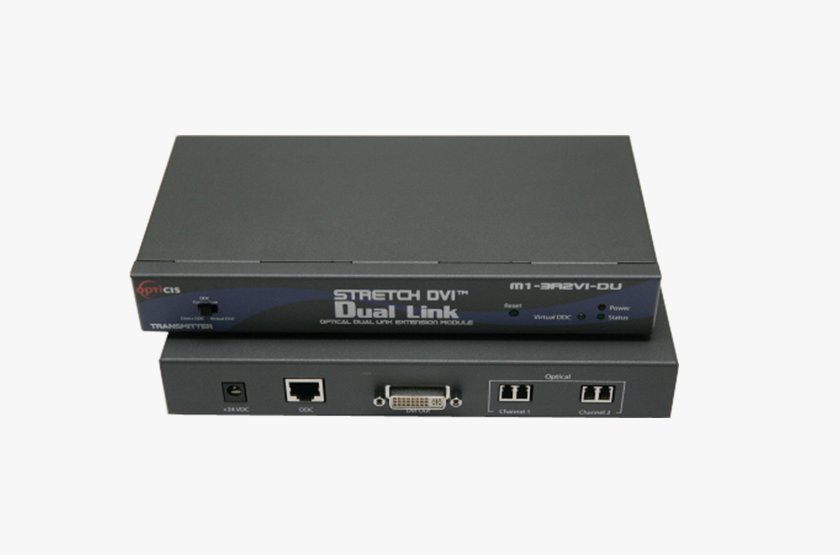

Opticis M1-3R2VI-DU Optical Dual Link DVI Extension Module
The M1-3R2VI-DU extends dual link DVI over optical fibre, replacing a copper run that would have given up long before the distance is covered. The set is a transmitter and a receiver module, each with a female dual link DVI-D connector, so a source and a display connect with ordinary DVI-D copper leads at each end. Four LC or two duplex LC fibres carry the three colour channels per link plus the clock.
Resolution reaches WQXGA 2560 x 1600 at 60 Hz. With DDC2B over a Cat5e run the reach is 100 m; using the module self-EDID programming instead, which reads the display EDID once and stores it in the transmitter, the link runs to 2 km on pure fibre with no copper DDC path at all. Single-mode and multi-mode fibre both work, there is no software to install, and the optical path emits no EMI or RFI. Certified FCC/CE and Class 1 laser eye safety.
| Type | Optical dual link DVI extension module set (transmitter and receiver) |
|---|---|
| Maximum Resolution | WQXGA 2560 x 1600 at 60 Hz |
| Distance | 100 m (328 ft) with DDC2B; 2 km (6,560 ft) with virtual DDC |
| Fibre Required | 4 x LC or 2 x duplex LC for dual link; 2 x LC or 1 x duplex LC for single link |
| Fibre Modes | Single mode and multi mode |
| EDID | Self-EDID programming, stored in the transmitter EEPROM |
| Video Connectors | Female dual link DVI-D, detachable cabling |
| DDC Connection | Cat5e with RJ-45 |
| Supply Voltage | 10 - 16 V |
| Operating Temperature | 0 - 50 C |
| Certifications | FCC/CE, Class 1 laser eye safety |
| Manufacturer Part Number | M1-3R2VI-DU |
