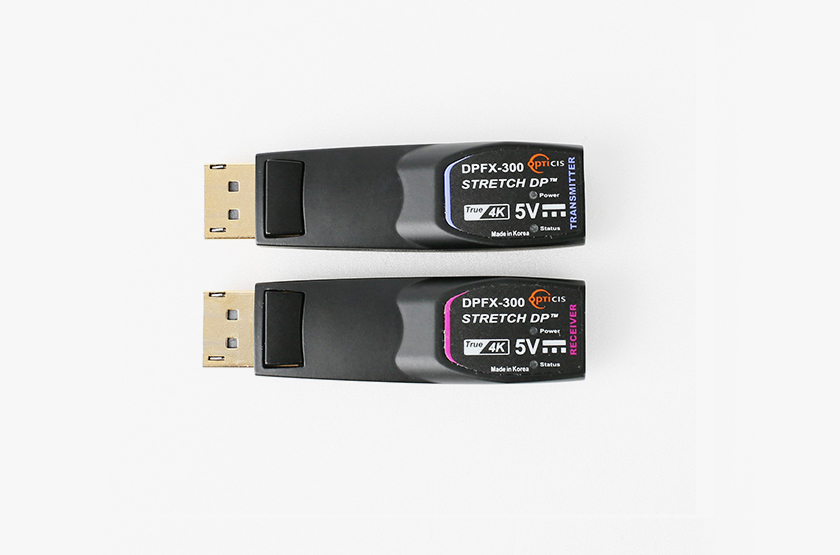

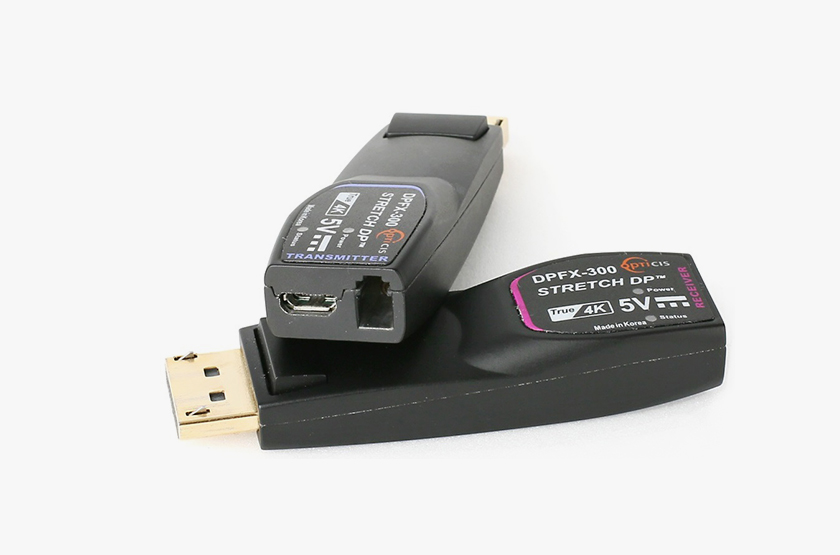

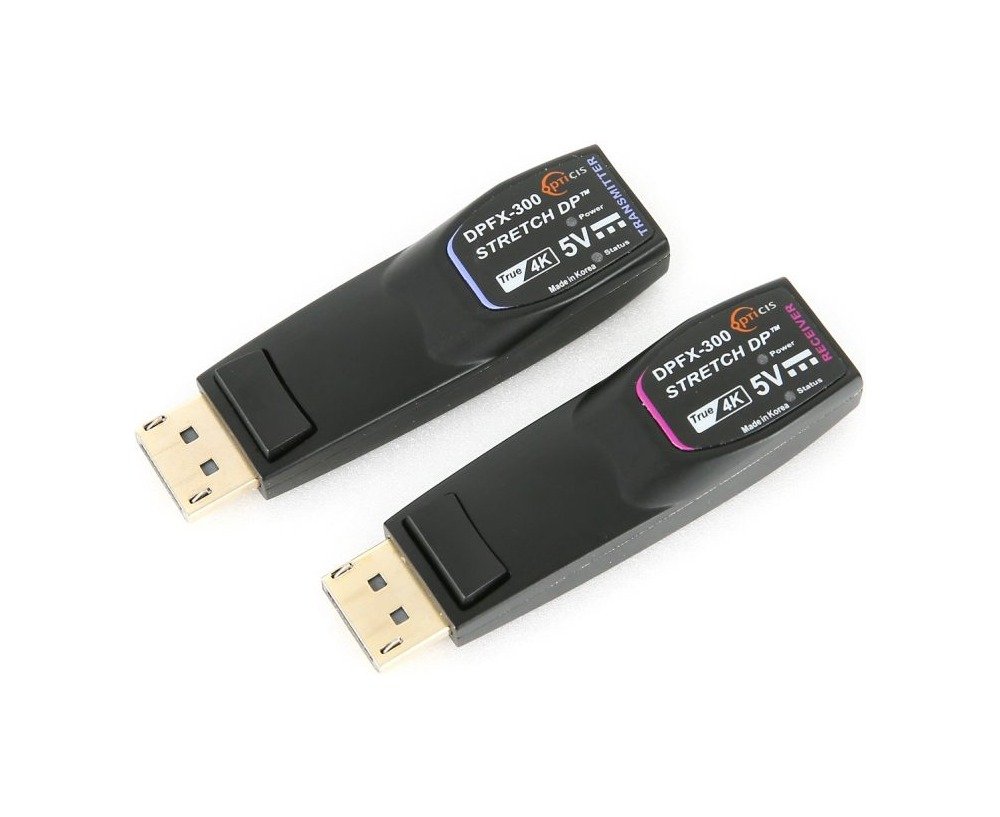

Opticis DPFX-300-TR DisplayPort1.2 Optical Extender

The DPFX-300-TR is Opticis's displayPort1.2 Optical Extender. It carries the signal up to 300 m (984 feet) over one (1) LC multi-mode fiber, with no scaling and no compression in the path. Resolution support runs to 4K (4096x2160) at 60Hz.

Supports DisplayPort 1.2 standards. Offers total data rate 21.6 Gbps (5.4Gbps per lane). Provides compact design that allows direct connection to DisplayPort source/display. Auto power switching.

Standards	Supports DisplayPort 1.2 standards
Resolution	Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)
Transmission Distance	Transmits DisplayPort 1.2 data up to 300m (984 feet) over one (1) LC multi-mode fiber (OM3)
Bandwidth	Offers total data rate 21.6 Gbps (5.4Gbps per lane)
Form Factor	Provides compact design that allows direct connection to DisplayPort source/display
Power	Auto power switching
Isolation	Data security with negligible EMI emission
Part Number	DPFX-300-TR
