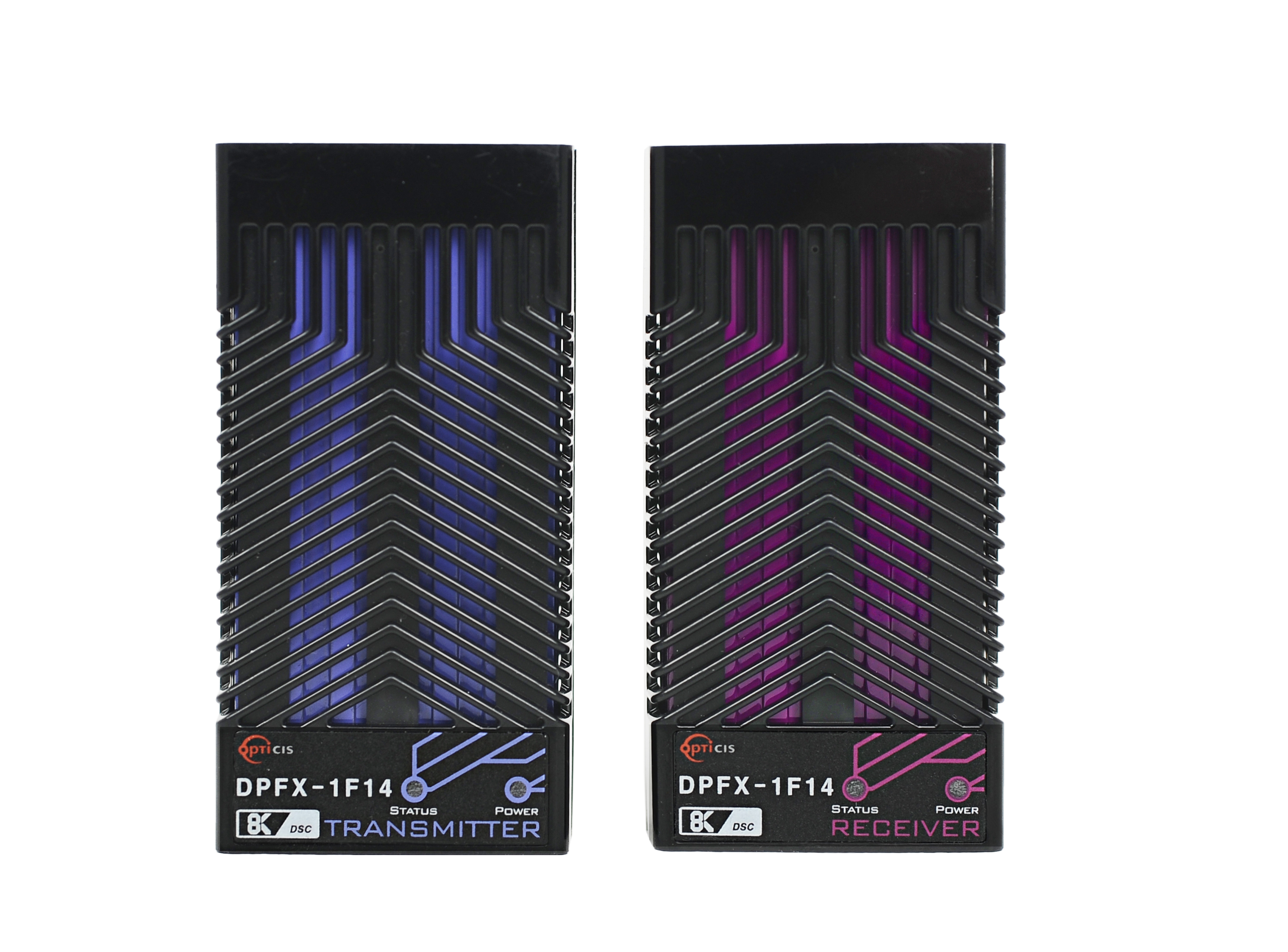

Opticis DPFX-1F14-TR DisplayPort1.4 Optical Extender

The DPFX-1F14-TR is Opticis's displayPort1.4 Optical Extender. It carries the signal up to 300 m (984 feet) over one (1) LC multi-mode fiber, with no scaling and no compression in the path. Resolution support runs to 8K DSC(7680x4320) at 60Hz - 4K(3840x2160) at 144Hz.

Supports DisplayPort 1.4 standards. Offers total data rate 32.4 Gbps (8.1 Gbps per lane). Data security with negligible EMI emission.

StandardsSupports DisplayPort 1.4 standards
Resolution8K DSC(7680x4320) at 60Hz
Transmission DistanceTransmits DisplayPort 1.4 data up to 300m (984 feet) over one (1) LC multi-mode fiber (OM3)
BandwidthOffers total data rate 32.4 Gbps (8.1 Gbps per lane)
IsolationData security with negligible EMI emission
Part NumberDPFX-1F14-TR
