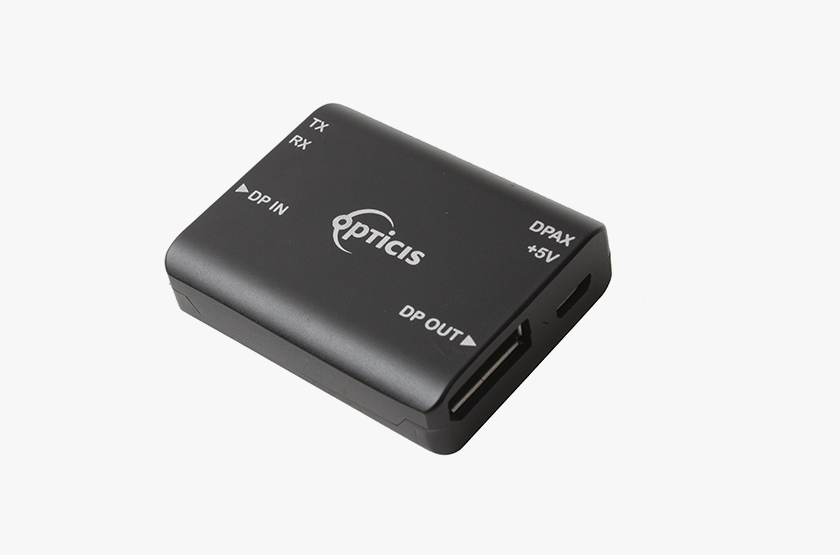

Opticis DPAX DisplayPort 1.2 Data Recovery Repeater

The DPAX is Opticis's displayPort 1.2 Data Recovery Repeater. It carries the signal up to 18 m (59 feet), with no scaling and no compression in the path.

In the box: USB A Male to Micro USB 5P Male 3m Cable; ; Optional: ; 5V DC power adapter. Complies with DisplayPort 1.2 standards. Offers total data rate 21.6Gbps (5.4Gbps per lane). Designed so that compatibility could go well especially with Opticis DisplayPort extenders for optical transmission. Operated by USB power or DC power supplying adaptor.

Standards	Complies with DisplayPort 1.2 standards
Resolution	Supports Ultra High Definition (up to 4096x2160) at 60Hz
Transmission Distance	Transmits DisplayPort 1.2 data up to 18m (59 feet) over copper cable
Bandwidth	Offers total data rate 21.6Gbps (5.4Gbps per lane)
Compatibility	Designed so that compatibility could go well especially with Opticis DisplayPort extenders for optical transmission
Power	Operated by USB power or DC power supplying adaptor
Form Factor	Dimensions (WDH): 39.5 x 50 x 13mm
Included	USB A Male to Micro USB 5P Male 3m Cable; ; Optional: ; 5V DC power adapter
Part Number	DPAX
