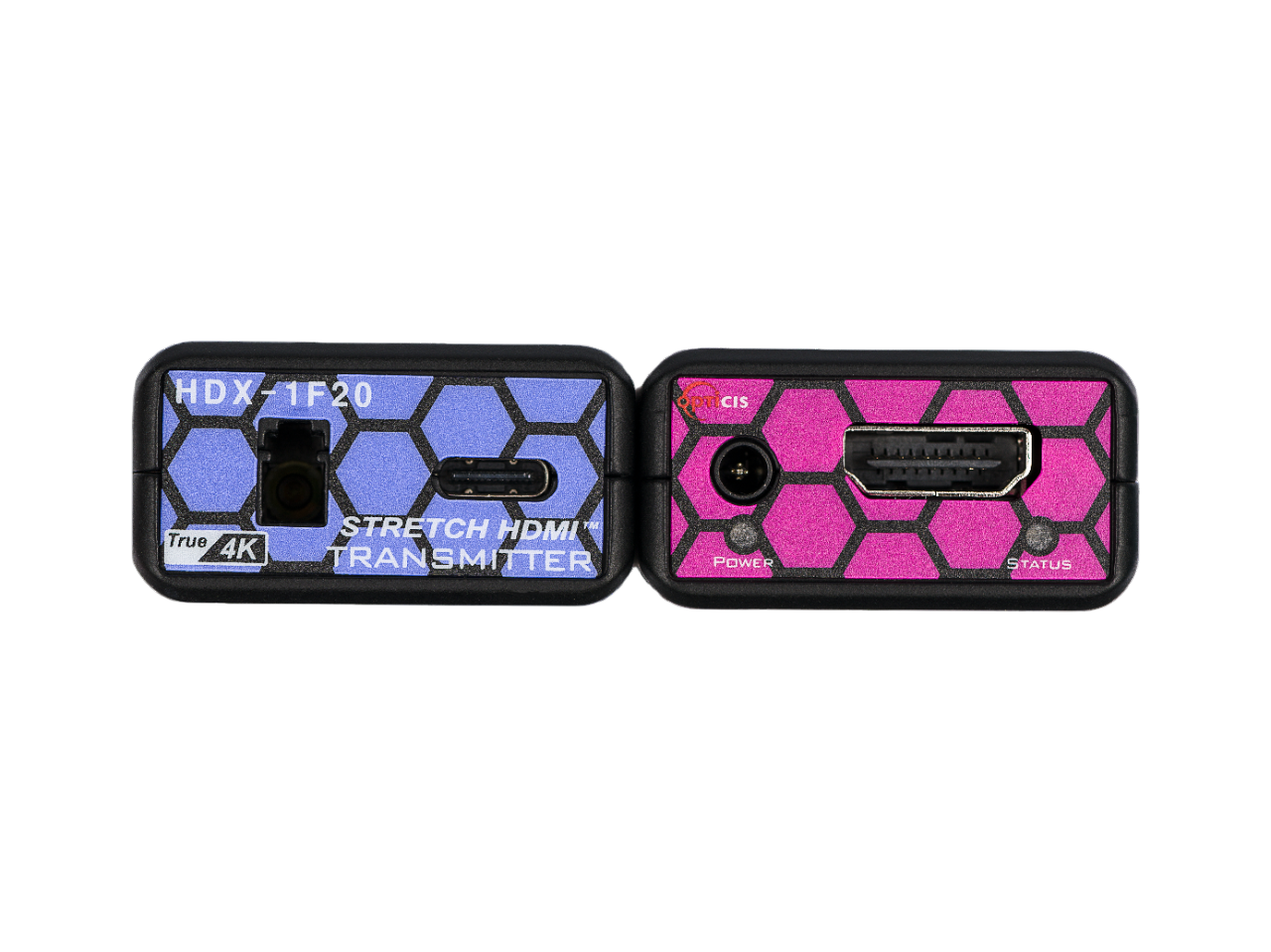

Opticis HDX-1F20-TR HDMI 2.0 One (1) fiber optical extender
The HDX-1F20-TR is Opticis's HDMI 2.0 One (1) fiber optical extender. Resolution support runs to 4K (4096x2160) at 60Hz.
Supports HDMI 2.0 standards for seamless high-definition audio and video. Supports Audio Return Channel (ARC). Data security with negligible EMI emission. Diagnosis Link Manager (GUI program) will be provided to manage firmware upgrade and diagnosis feature.
| Resolution | Extends up to 4K (4096x2160) at 60Hz |
|---|---|
| Standards | Supports HDMI 2.0 standards for seamless high-definition audio and video |
| Transmission Distance | Transmits data up to 300 meters (984 feet) over one (1) LC multi-mode fiber (OM3) |
| Audio | Supports Audio Return Channel (ARC) |
| Isolation | Data security with negligible EMI emission |
| Firmware | Diagnosis Link Manager (GUI program) will be provided to manage firmware upgrade and diagnosis feature |
| Power | Compatible with Power Rack (BR-600), support up to 8 units Opticis diagnosis extenders, and offer one step feature at once time |
| Part Number | HDX-1F20-TR |
