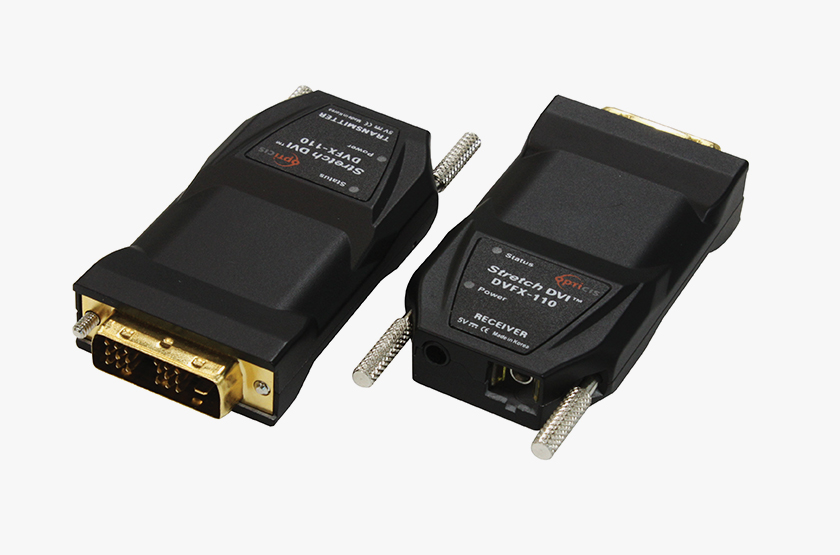

Opticis DVFX-110-TR One Fiber Detachable Extender

The DVFX-110-TR is Opticis's one Fiber Detachable Extender. Small and solid aluminium enclosure.

Easy and simple installation with a single fiber. Reads and restores the targeted EDID in the transmitter (Self-EDID). Provides Power, Status (Signal transmission in the transmitter and signal detection in the receiver), LED indicators. Supports bit rate up to 1.65Gbps/ch.

EnclosureSmall and solid aluminium enclosure
Cable / FiberEasy and simple installation with a single fiber
SignallingReads and restores the targeted EDID in the transmitter (Self-EDID)
PowerProvides Power, Status (Signal transmission in the transmitter and signal detection in the receiver), LED indicators
ResolutionSupports up to WUXGA(1920x1200), 60Hz
BandwidthSupports bit rate up to 1.65Gbps/ch
Transmission DistanceUncompressed DVI signal up to 1km (3,281 feet) over one (1) single-mode fiber or 500m (1640 ft) over one (1) multi-mode fiber with SC terminated connector
Operating TemperatureOperating temperature: 0 ~ 50 C
Form FactorDimensions (WDH): 39 x 68 x 14.6mm
Part NumberDVFX-110-TR
