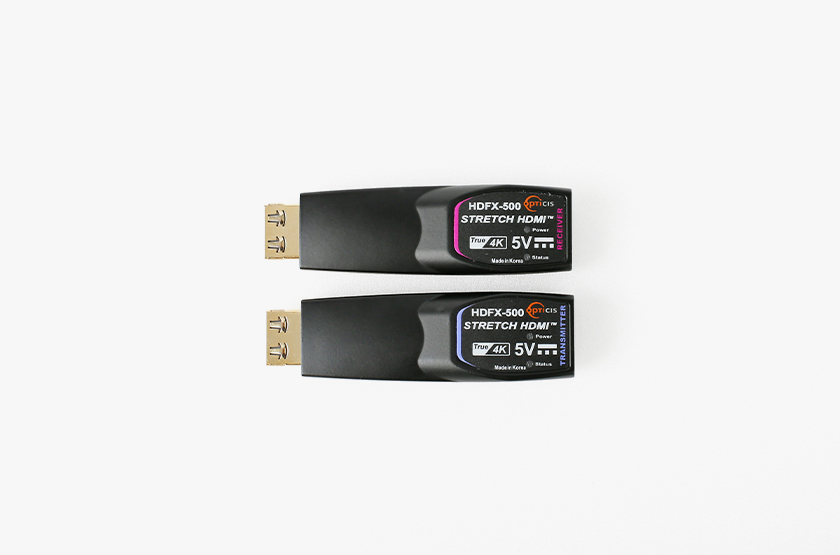

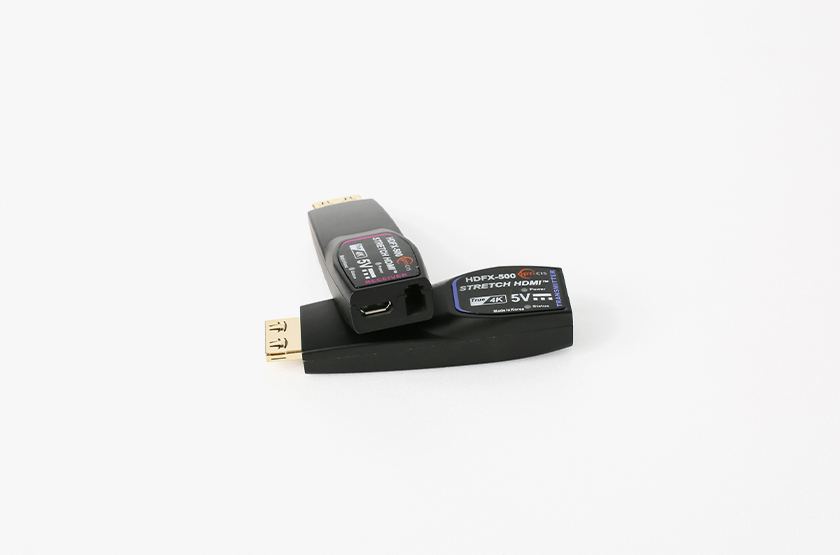

Opticis HDFX-500-TR HDMI 2.0 Optical Extender

The HDFX-500-TR is Opticis's HDMI 2.0 Optical Extender. It carries the signal up to 300 m (984 feet) over one LC multi-mode fiber, with no scaling and no compression in the path. Resolution support runs to 4K (4096x2160) at 60Hz.

Supports HDMI2.0 standards feature. Prevents accidental disconnection by using High-Retention HDMI connector. Operates by either USB Power(Both TX and RX) or DDC 5V from HDMI source (TX only). Supports 3D contents transmission.

Standards	Supports HDMI2.0 standards feature
Resolution	Extends up to 4K (4096x2160) at 60Hz, (RGB & YCbCr : 4:4:4)
Transmission Distance	Transmits HDMI 2.0 data up to 300m (984 feet) over one LC multi-mode fiber (OM3)
Connectors	Prevents accidental disconnection by using High-Retention HDMI connector
Power	Operates by either USB Power(Both TX and RX) or DDC 5V from HDMI source (TX only)
3D Support	Supports 3D contents transmission
HDCP	Complies with CEC, EDID and HDCP 2.2
Bandwidth	Supports HDR at 10 bit or 12 bit speeds respectively within its maximum bandwidth, 18Gbps
Part Number	HDFX-500-TR
