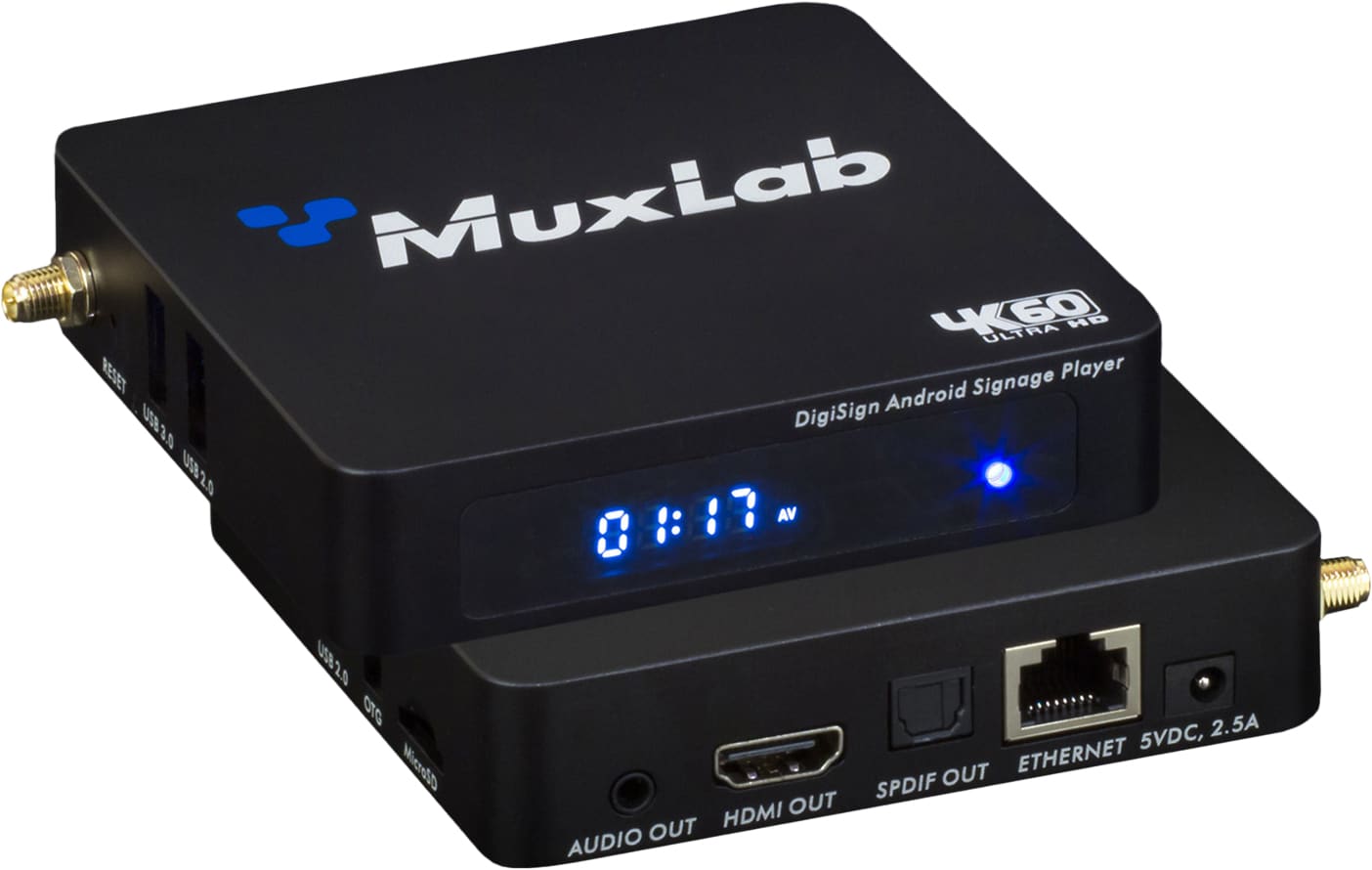

MuxLab 500890 HDMI over IP Receiver with Signage Player

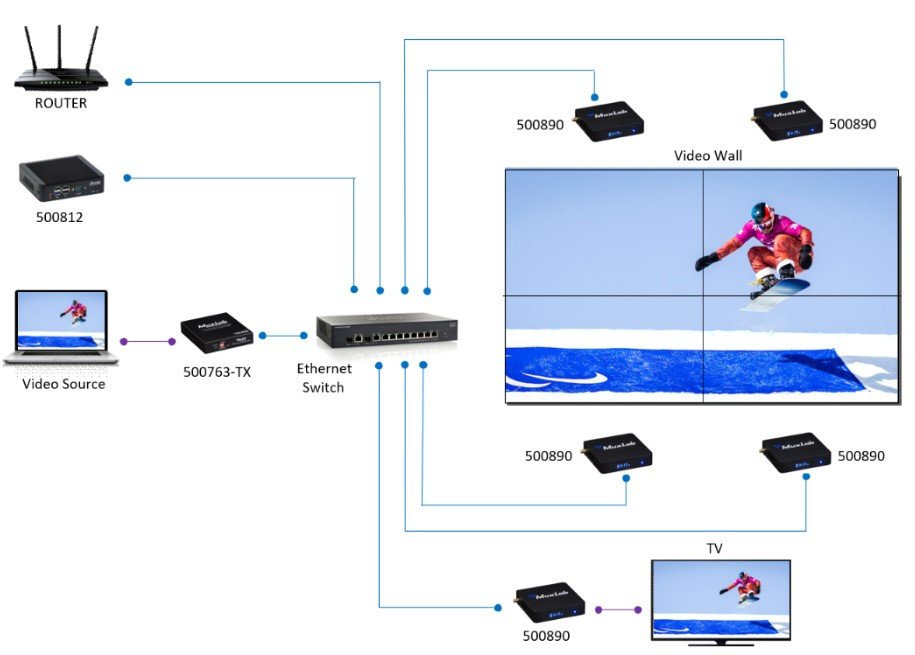

The 500890 combines an HDMI over IP receiver with a DigiSign signage player, handling H.264/H.265 video at resolutions up to 4K at 60Hz 4:4:4. Paired with a 500763-TX or 500764-TX transmitter it works as a normal AV over IP endpoint including video wall and multiview.

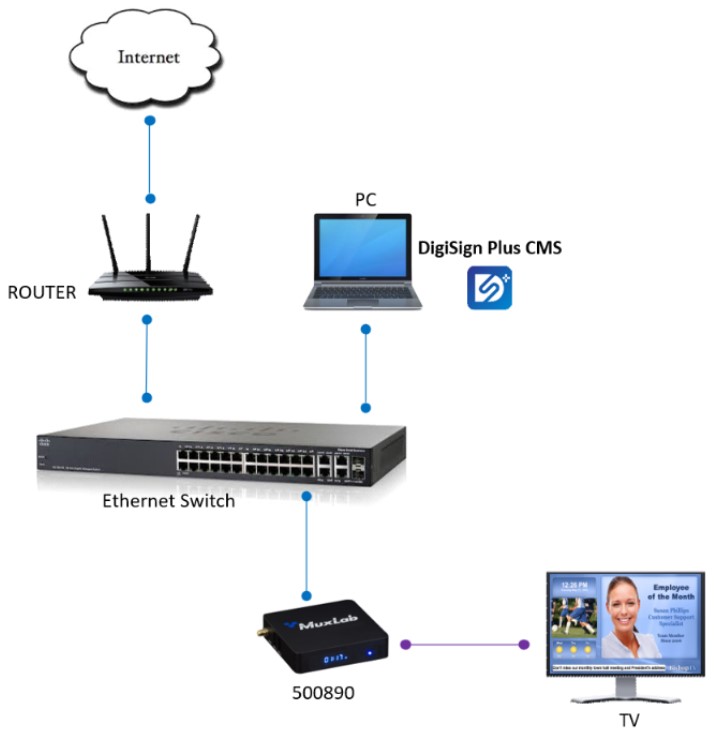

When there is no live feed to show it runs as a signage player instead, driving scheduled content on the same screen. Because the codec keeps bandwidth low, the same system spans sites rather than staying on one local switch.

Signal	Protocol/Standard
Power Consumption	12W
Power	Supply
Dimensions	3.9" x 3.8" x 0.9" (99mm x97mm x 24mm)
Weight	0.48 lbs (0.21kg) 500890 working as an HDMI over IP Receiver 500890 working as Signage Player
Video	Bandwidth Protocols Maximum Distance
Network	Bandwidth HDMI 2.0 HDMI 2.0 and HDCP 2.2 594MHz 25Mbps (typical)
Cat5e/6	330ft (100m) from Ethernet Switch. Unlimited over the Internet Specification Supports Multicast & HLS Includes a 5VDC/ 2.5A power adapter
