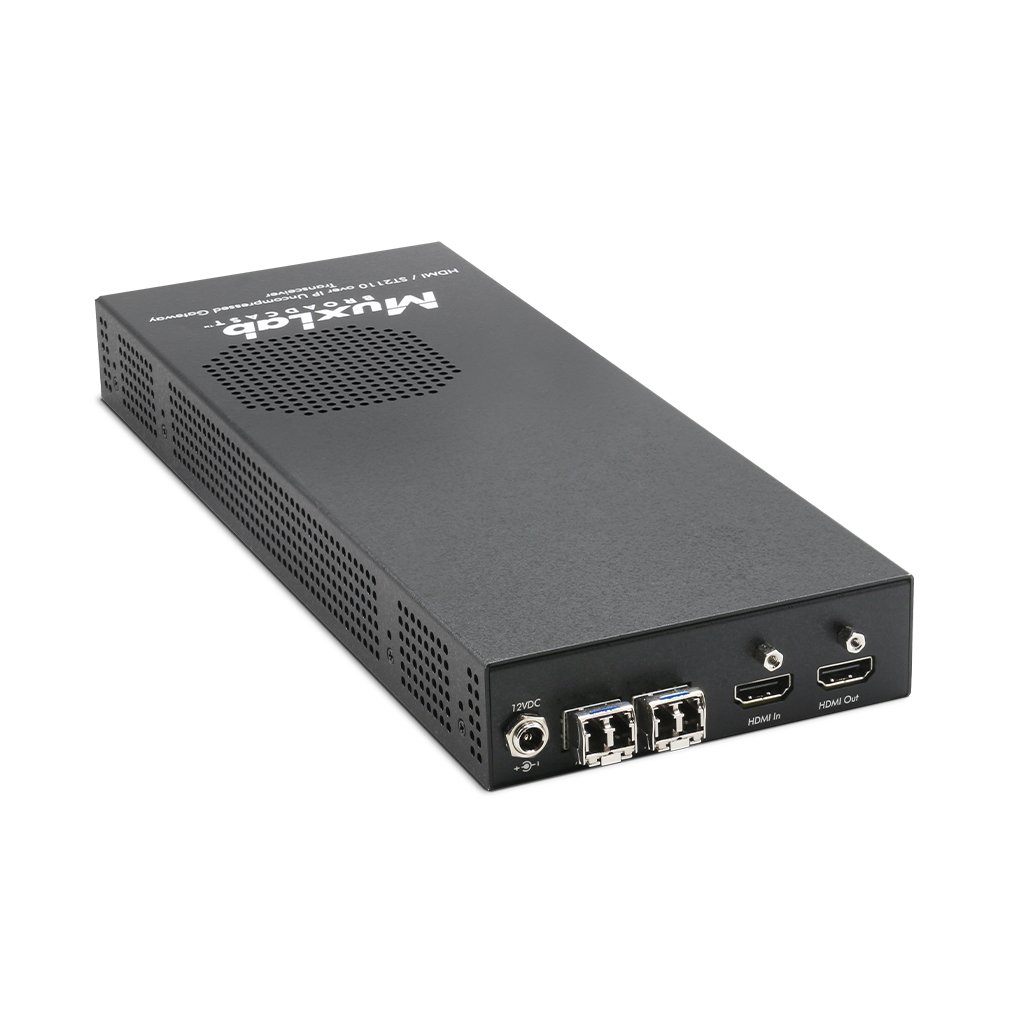

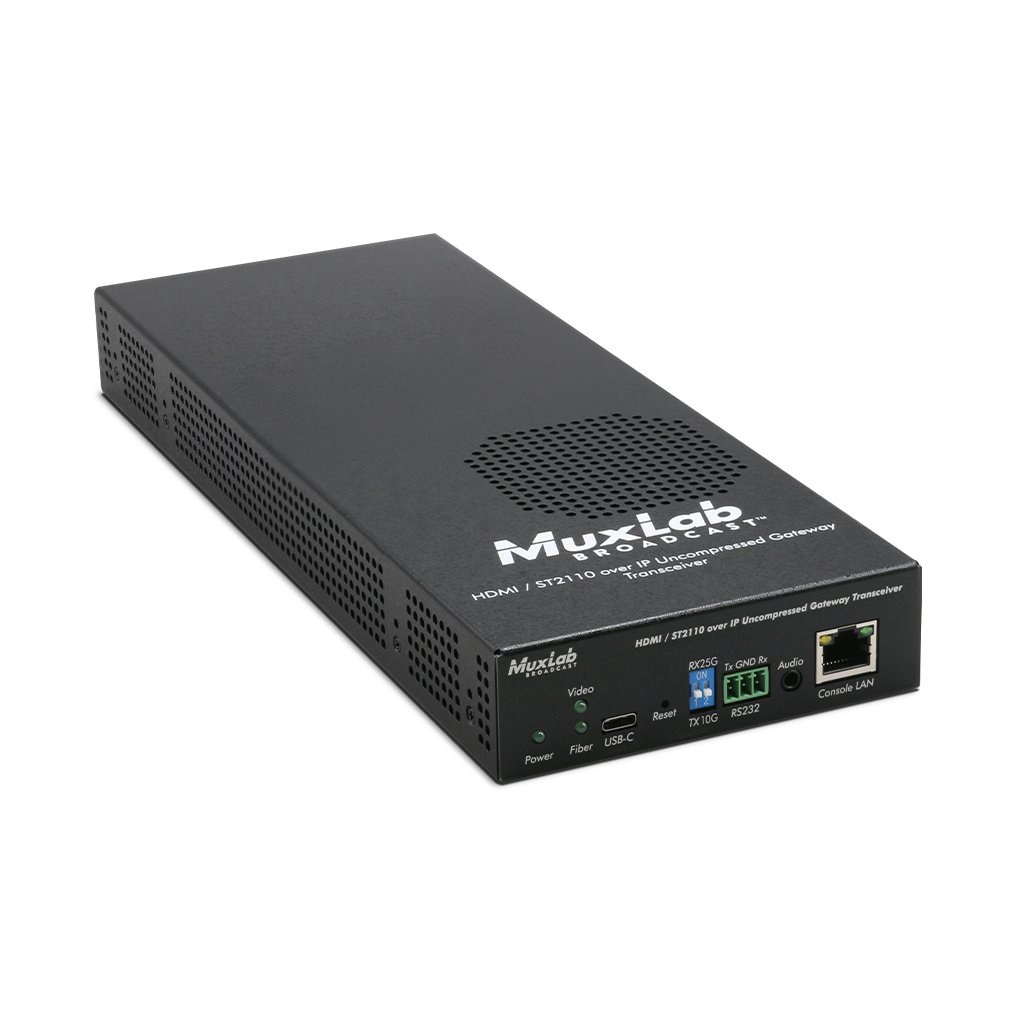

MuxLab 500794 HDMI 2.0/ST2110 over IP Gateway TRX

The 500794-2110 gateways HDMI 2.0 onto a SMPTE ST-2110 IP network uncompressed, matching the 500775's network performance and reach for facilities standardizing on HDMI sources rather than SDI.

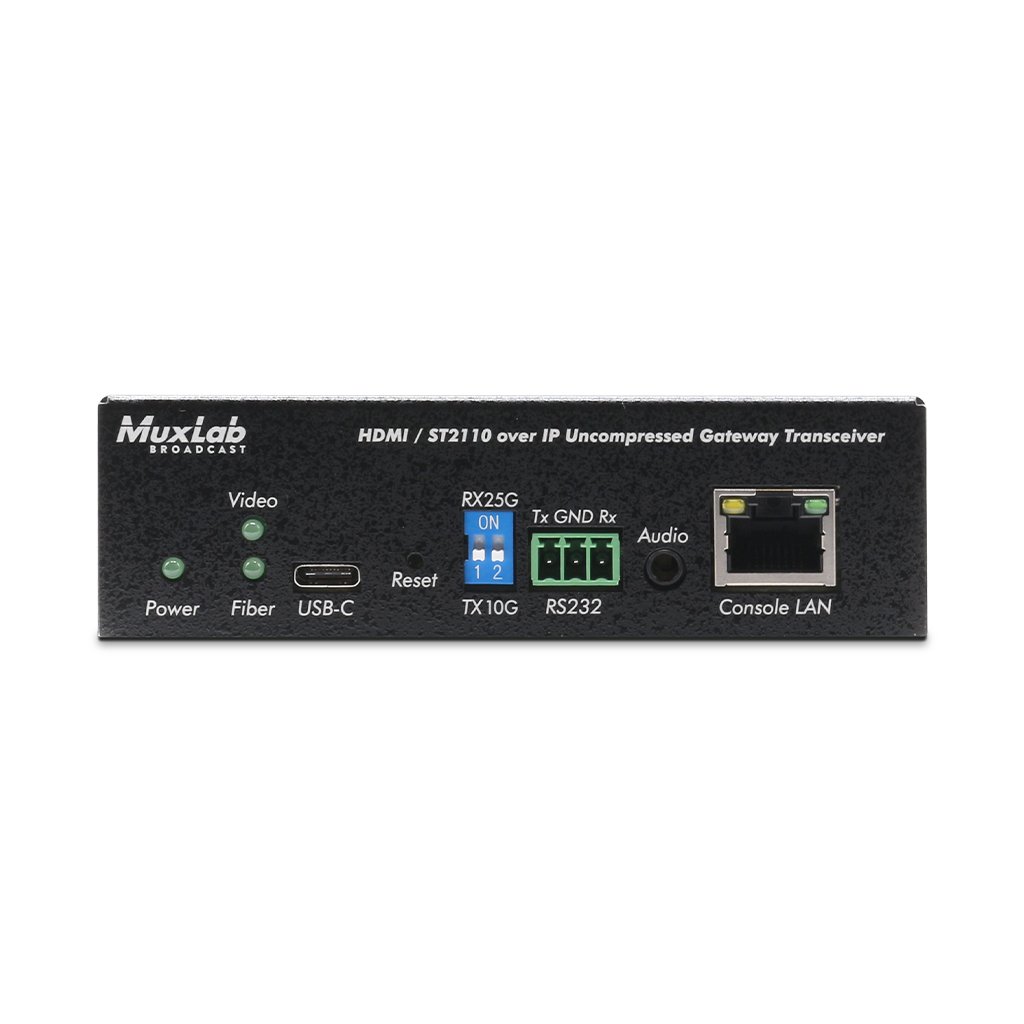

The same transceiver hardware configures as a transmitter or receiver, with RS232 and USB-C control, a 3.5mm audio monitor jack, and ST-2022-7 Class D redundancy across dual 25G/10G network paths.

Resolution	4K@60Hz over a 25G network; 4K@30Hz over a 10G network
Bandwidth	12Gbps (25G) or 6Gbps (10G) capacity
Audio	16 channels
Max. Distance	6.2 miles (10km) single-mode fiber; 320 ft (100m) multimode

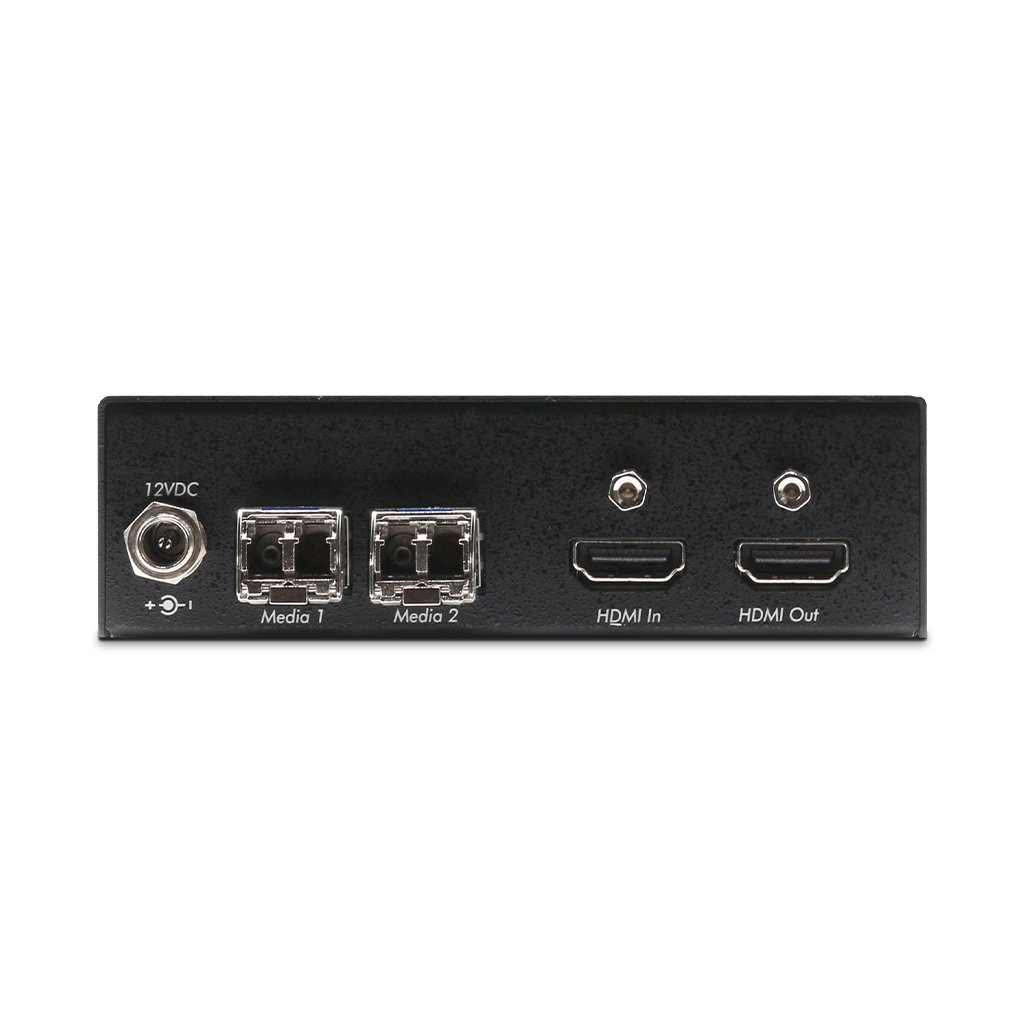

Connectors	Two 25G/10G Ethernet media ports, one 1G management port, RS232, USB-C, 3.5mm audio
Weight	1.340 kg
Standard	SMPTE ST-2110 uncompressed
Signal Format	Transceiver, configurable as transmitter or receiver
