MuxLab 500755 AUDIO / RS232 over IP PoE Transceiver

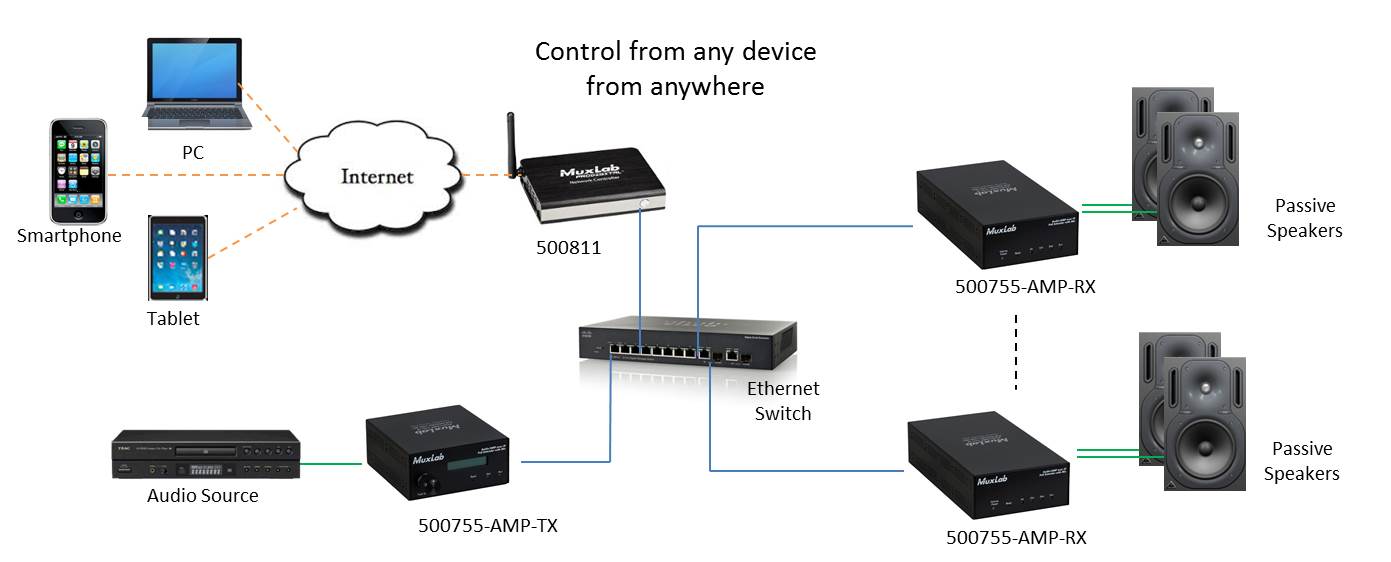

The 500755 extends 2-channel audio up to 330ft (100m) over Cat5e/6 point to point, and further over an existing Ethernet network. Connect several transceivers to the same LAN and the link becomes point-to-multipoint or multipoint-to-multipoint, with hundreds of units supported depending on available bandwidth.

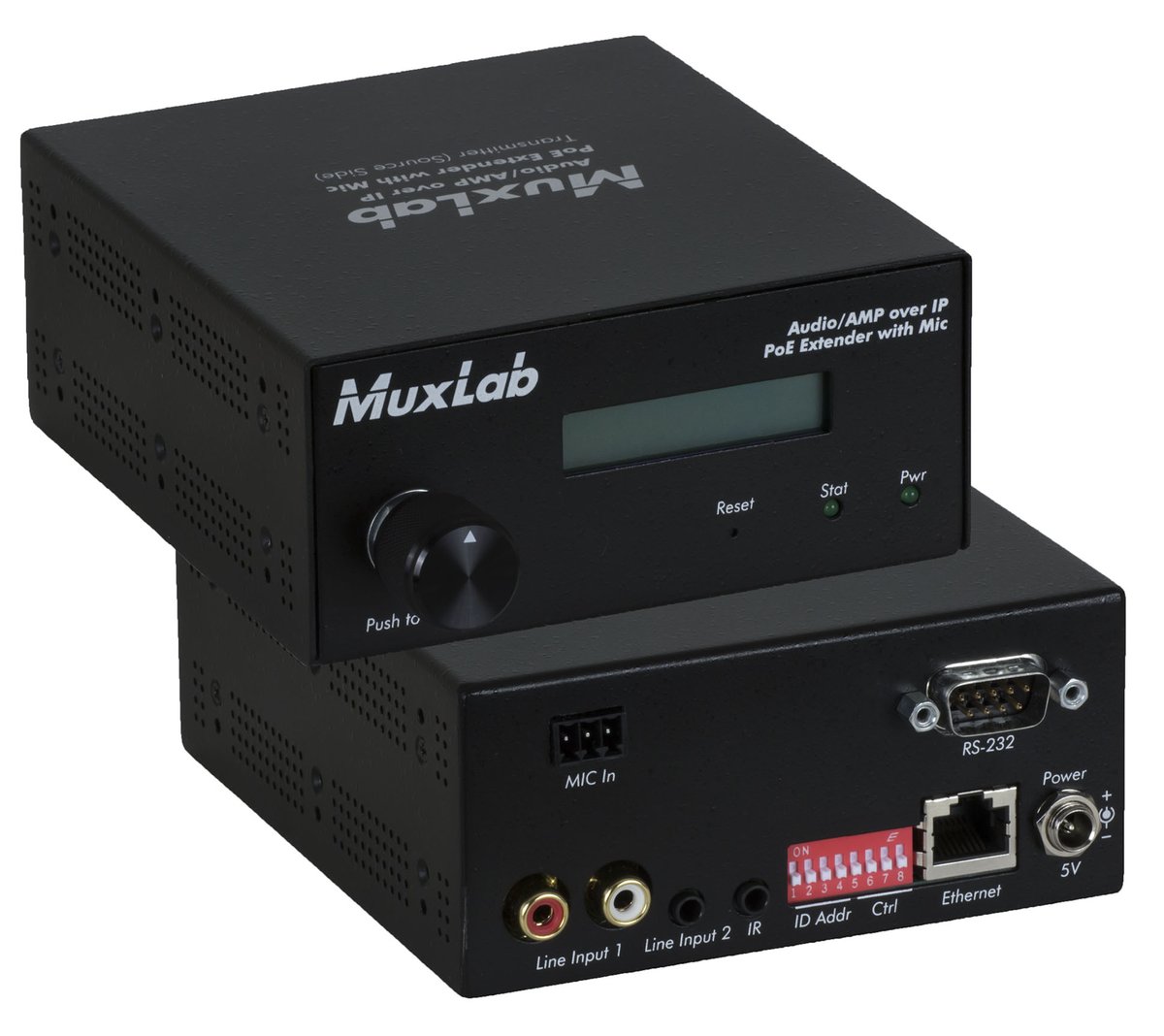

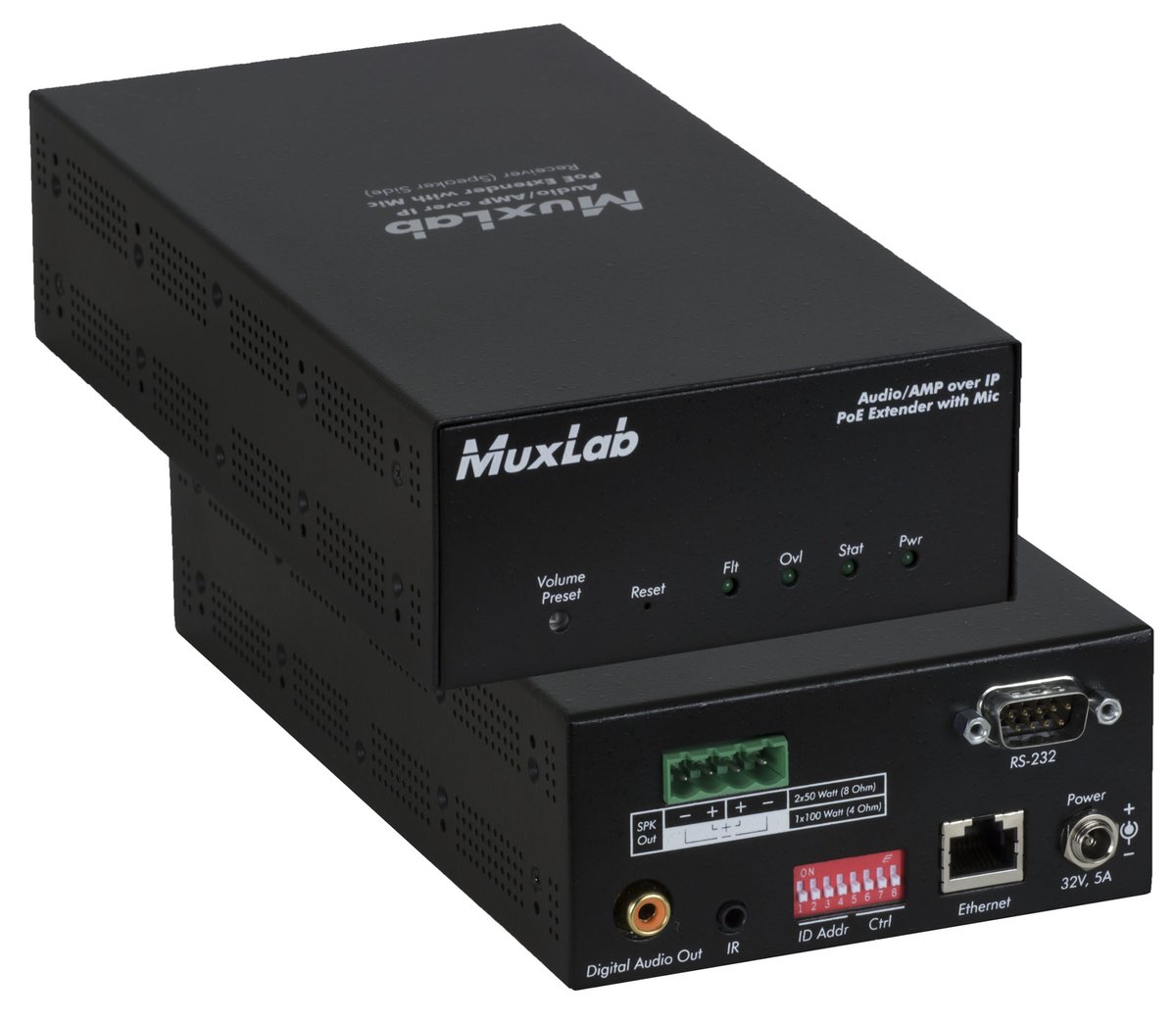

RS232 and IR travel alongside the audio, so control follows the sound to each zone. The unit takes PoE from a standard switch. Related parts in this family include the 70V audio converter for constant-voltage speaker lines and the transmitter and receiver versions with a built-in 50W-per-channel amplifier or microphone input.
