MuxLab 500816 8 Button IP PoE Control Panel

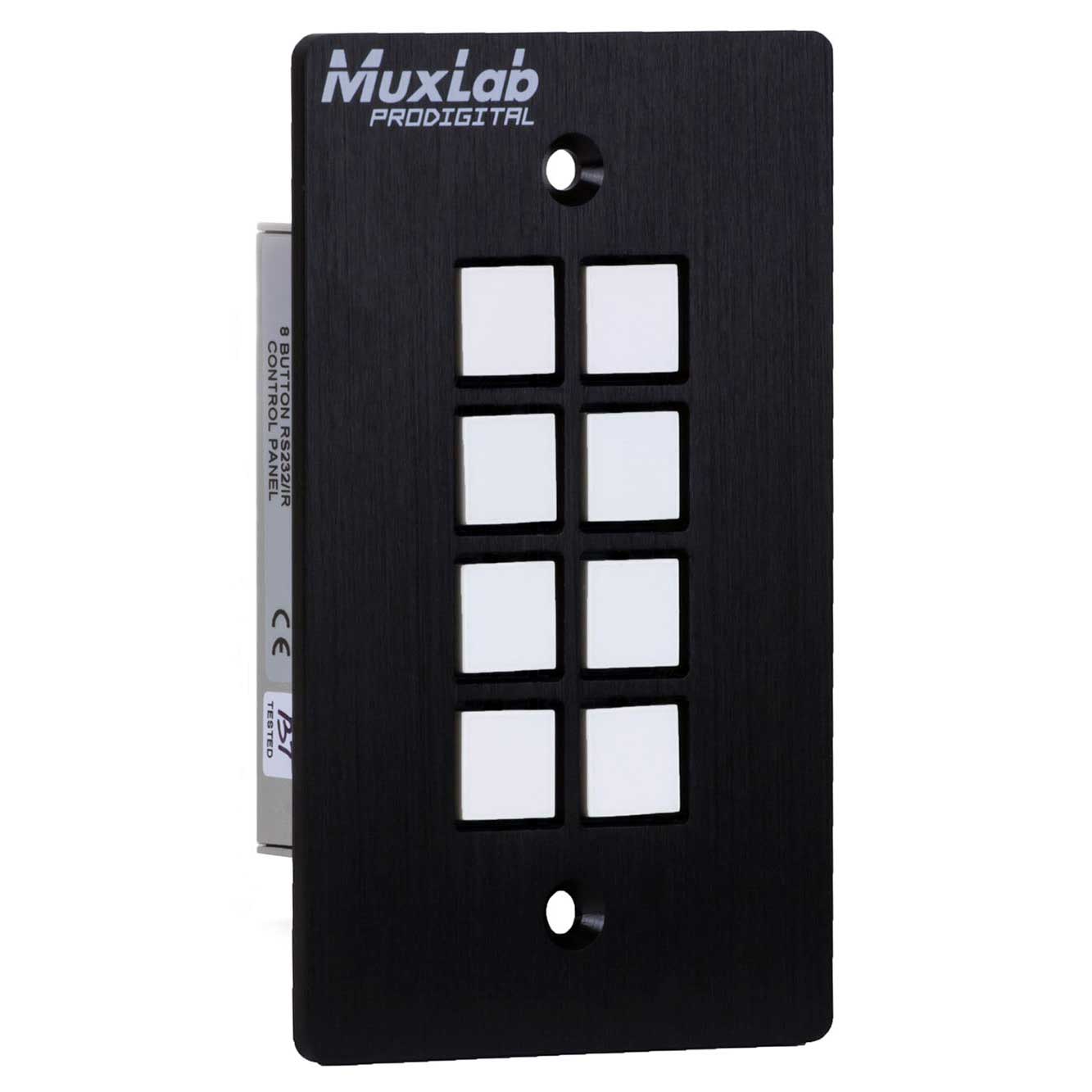

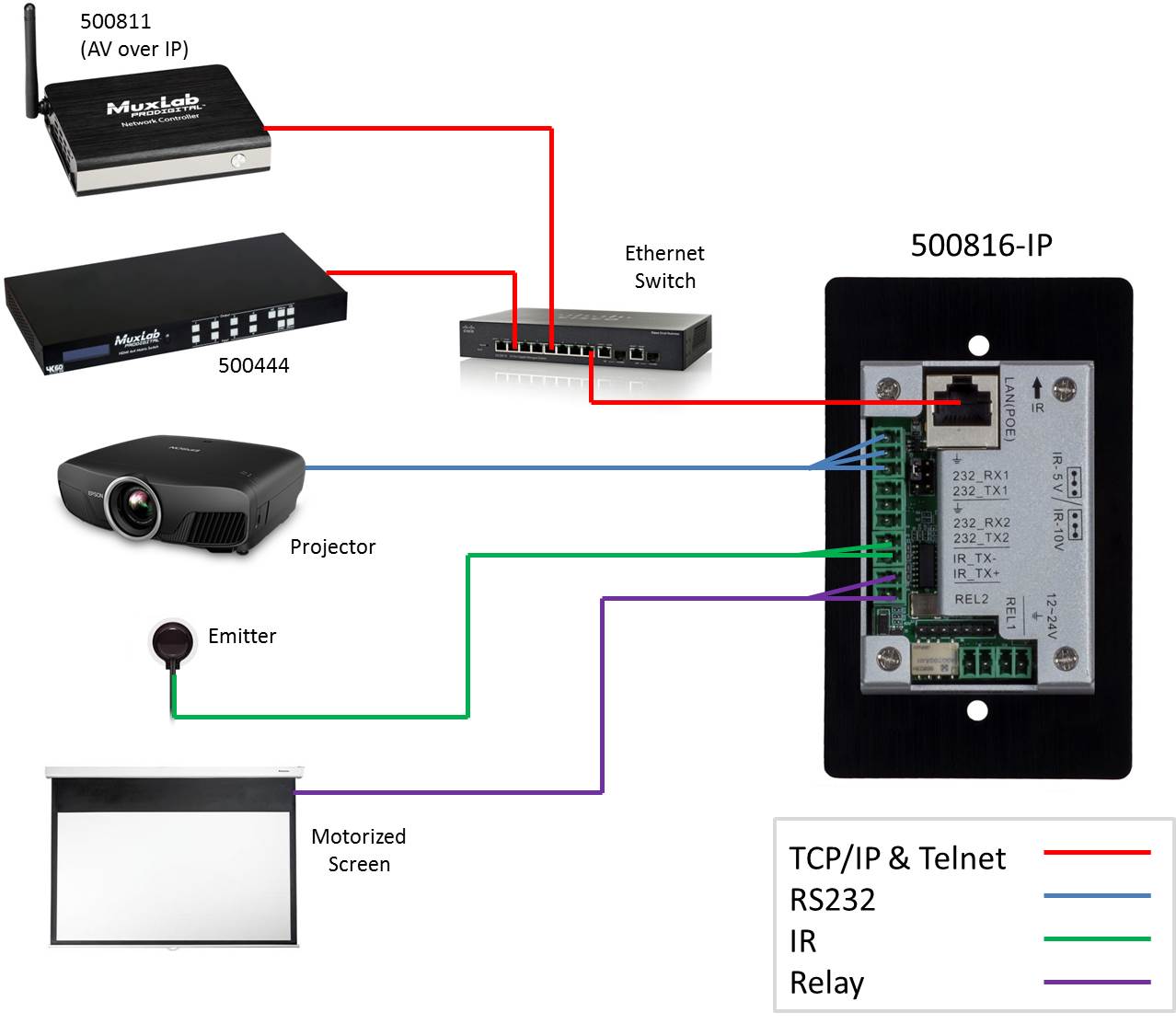

The 500816-IP-V2 is a wall or table-top control panel for MuxLab AV over IP devices, selected matrix switches, and third-party equipment. Each of the eight buttons is individually programmable, and control reaches end devices over TCP/IP, Telnet, RS232, IR, or relay.
Connectivity includes one Ethernet port for TCP/IP and Telnet, two RS232 ports, an infrared port, and relay outputs. Programming is done through a web interface, and the buttons are backlit with customisable labels so a room's controls read plainly to a guest.
| Output | Ports One (1) Ethernet port for TCP/IP Two (2) RS232 ports One (1) Infrared Emitter port Two (2) Low voltage Relay ports |
|---|---|
| Compatibility | Compatible with select MuxLab & third party products |
| Power Supply | One (1) 110-240VAC to 12VDC/1.0A power supply with US, UK & Euro Blade |
| Dimensions | 4.49" x 2.76" x 1.41" (114mm x 70mm x 36mm) |
| Weight | 0.75 lbs (0.34 kg) |
| Enclosure | Metal |
| Temperature | Operating: 0 deg to 40 deg C Storage: -20 deg to 70 deg C |
| Humidity | Up to 95% non-condensing |
