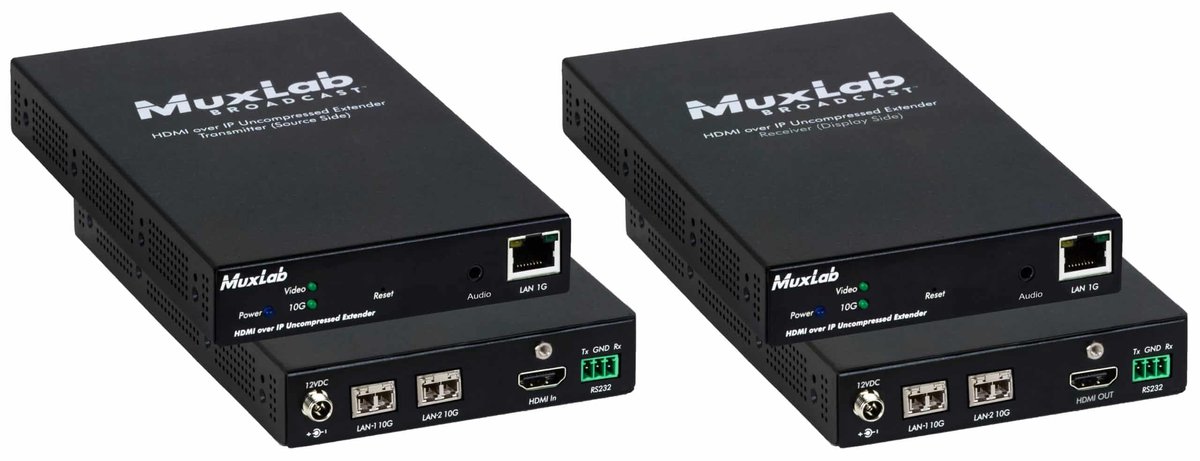

MuxLab 500774 HDMI 4K / ST2110 over IP Uncompressed Gateway Converter RX, MM

The 500774 gateway converts HDMI to and from SMPTE ST-2110 uncompressed IP video at up to 4K/30, with ST-2022-7 Class D redundancy for broadcast reliability. It is available as a receiver or transmitter, and on multimode fiber (MM) or copper Cat5e/6 (UTP) network interfaces.

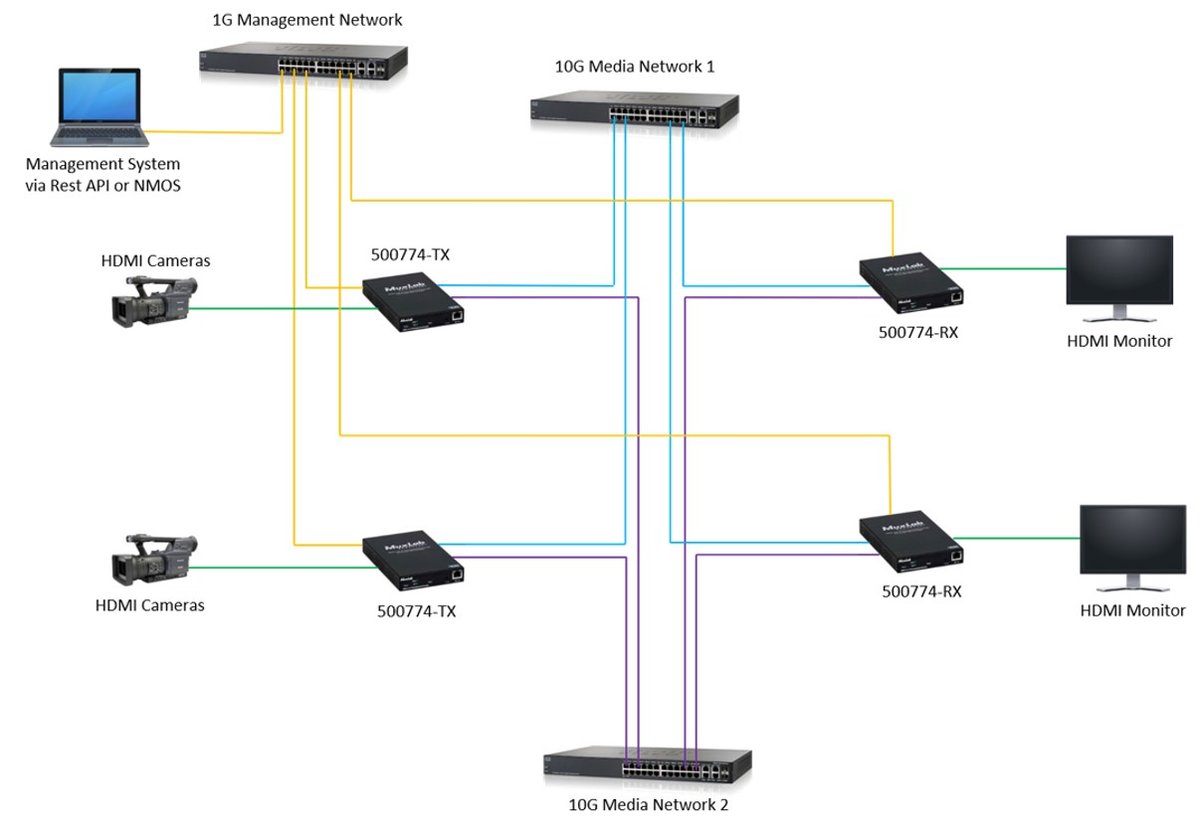

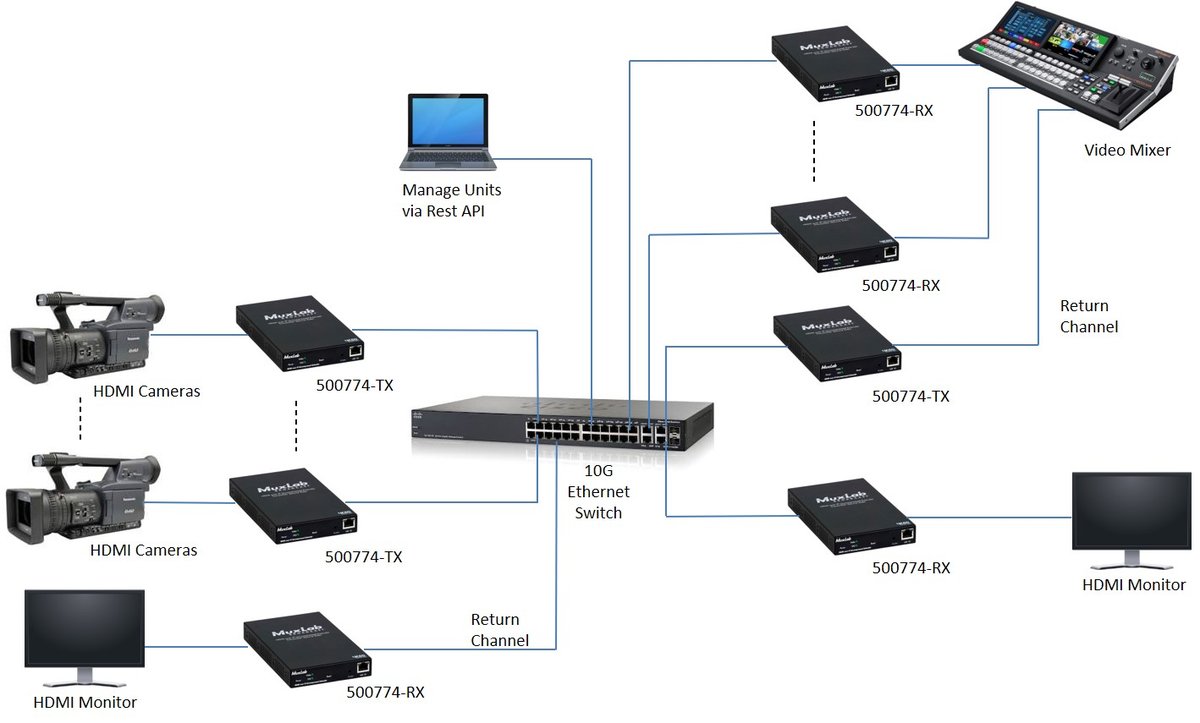

Two 10G Ethernet ports carry the primary and redundant network paths while a separate 1G port handles management traffic, keeping control plane and media plane apart the way a broadcast IP core expects.

Video Resolution	Up to 4K @ 30Hz (4K 4:4:4 8-bit and 4K 4:2:2 10-bit)
Bandwidth	Two 10G Ethernet ports plus one 1G Ethernet port
Max. Distance	Up to 1300 ft (400m) over duplex OM4 fiber (MM); UTP model runs on Cat5e/6
Dimensions	2.87H x 8.27W in (23.00 x 21.00 cm)
Weight	0.530 kg
Standard	SMPTE ST-2110, ST-2022-7 (Class D) redundancy
