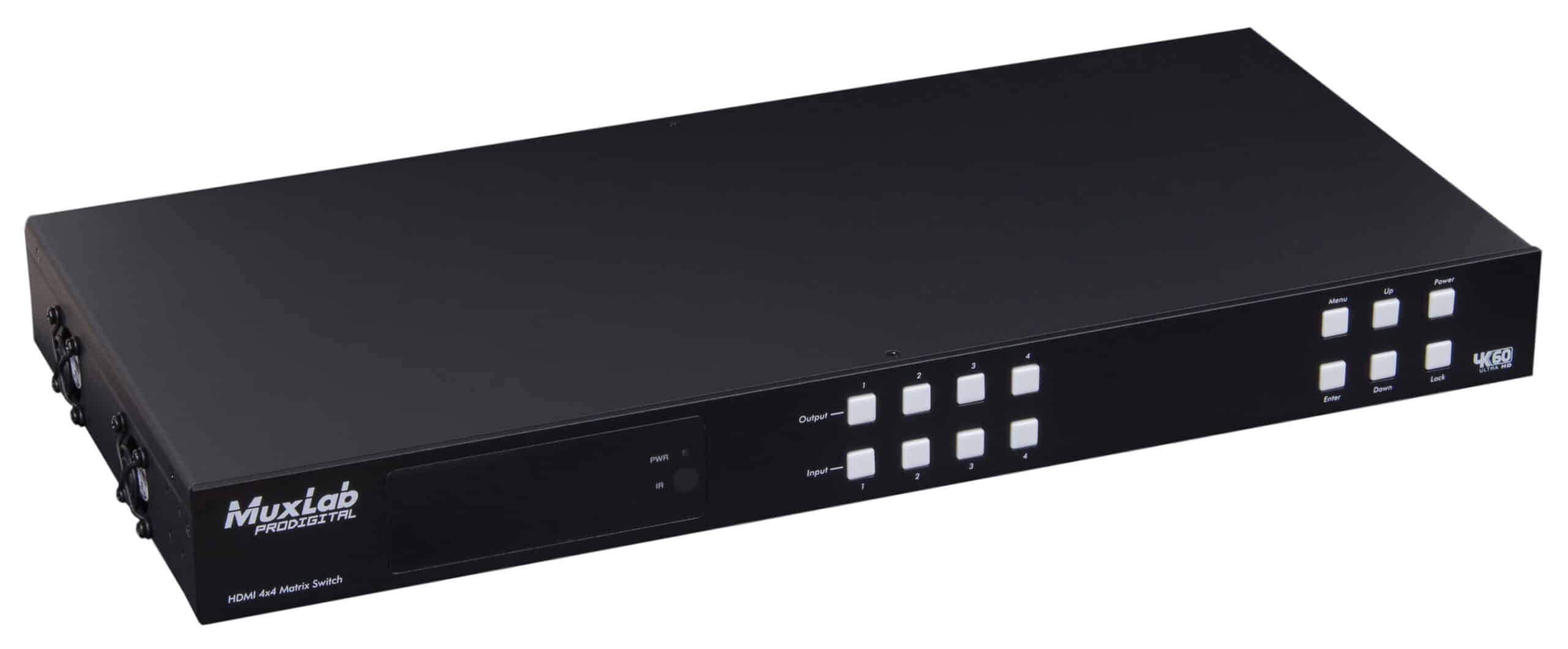

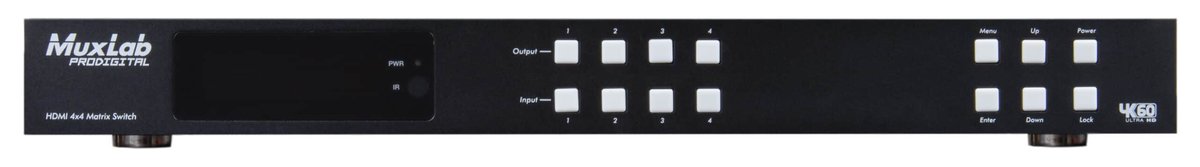

MuxLab 500412 HDMI 4X4 Matrix SWX Kit, HDBT, PoC, 4K/60

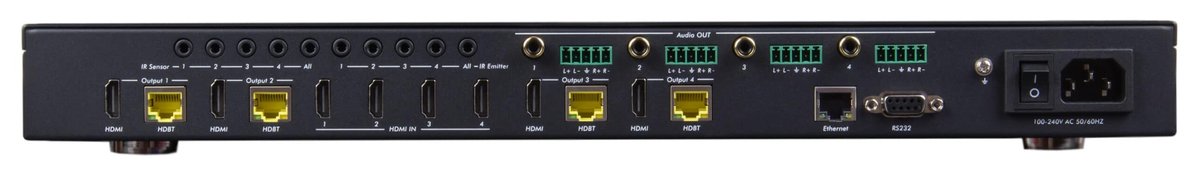

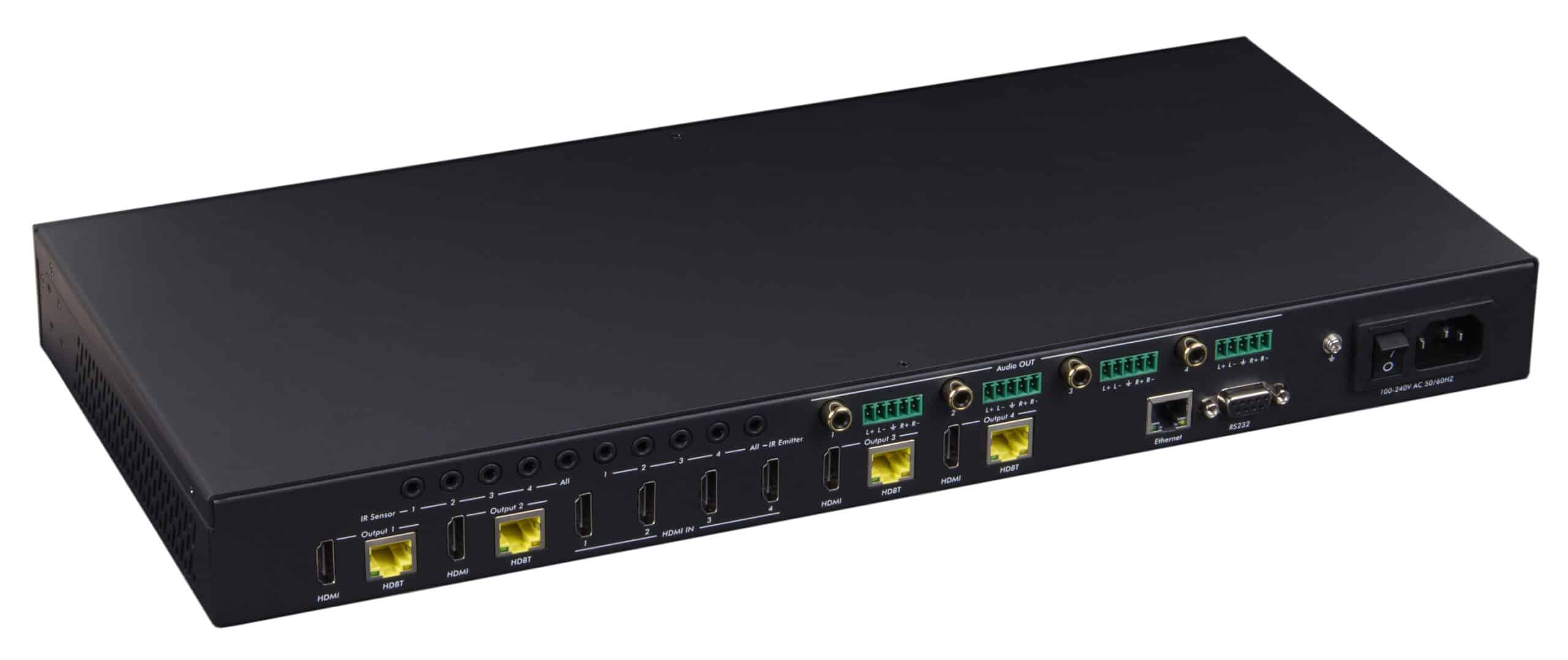

The 500412-V2 routes four HDMI sources to four displays and provides both four HDBaseT outputs for distance and four HDMI outputs for local screens. It carries HDMI 2.0b at 4K/60 4:4:4 and is HDCP 2.2 compliant, with HDBaseT reach of 150m at 1080p and 120m at 4K.

Four HDBaseT receivers are included and are powered by the matrix over 24VDC PoC, so no power supply is needed at the display end. Each output has a 4K to 1080p down-scaler, which lets a mixed estate of 4K and HD displays run off the same routing without one screen forcing everything down.

HDMI Compliance	HDMI 2.0b
HDCP	2.2 and HDCP 1.x 18Gbps Up to 4K2K@50/60Hz (4:4:4) RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 HDR10, HDR10+, Dolby Vision, HLG PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 Technical Specification
Color	Depth HDR Coax Audio Formats PCM 2.0CHAnalog Balanced Audio Formats 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0)
Power Supply	AC 100 - 240V 50/60Hz
Power Consumption	60W (Max)
Dimensions	(WxDxH) Matrix: 440mm x 200mm x 44.5mm Receiver: 140mm x 65mm x 18mm
Weight	Matrix: 3.1Kg, Receiver: 155g
Housing	Metal
