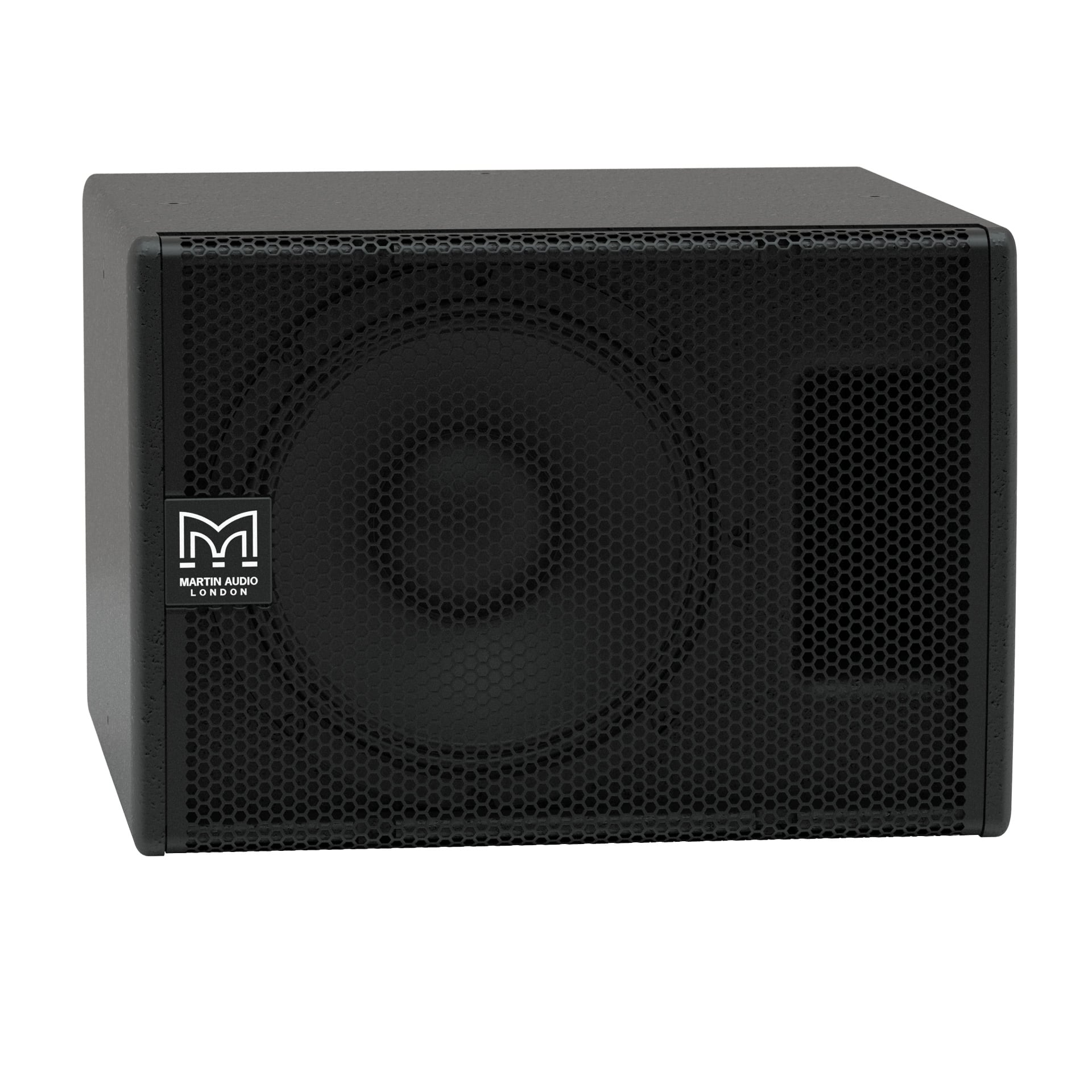

Martin Audio SX110 10" Passive Slimline Subwoofer
The SX110 is a slimline direct-radiating subwoofer built around a single 10" (250mm) long-excursion driver in a shallow plywood enclosure. Its low profile is the point: it slips under a bench, behind a bar or beside a compact top box to add weight without taking up floor space, which makes it a natural partner for the smaller CDD and Blackline models in retail, hospitality and AV rooms.
It handles 200W AES (800W peak) at 8 ohms and reaches 126dB peak, extending response down to 42Hz (-10dB). A large port keeps air noise low at level, and M8 flying inserts allow suspension where a floor position is not practical. The plywood cabinet uses two NL4 connectors for through-wiring and is finished in black, white or a custom RAL colour.
| Driver | 1 x 10" (250mm), 2" (50mm) voice coil, long excursion |
|---|---|
| Frequency Response | 50Hz-150Hz +/- 3dB, -10dB @ 42Hz |
| Power Handling | 200W AES, 800W peak |
| Nominal Impedance | 8 ohms |
| Max SPL | 120dB continuous, 126dB peak |
| Connectors | 2 x NL4 |
| Enclosure | Plywood with perforated steel grille, M8 flying inserts |

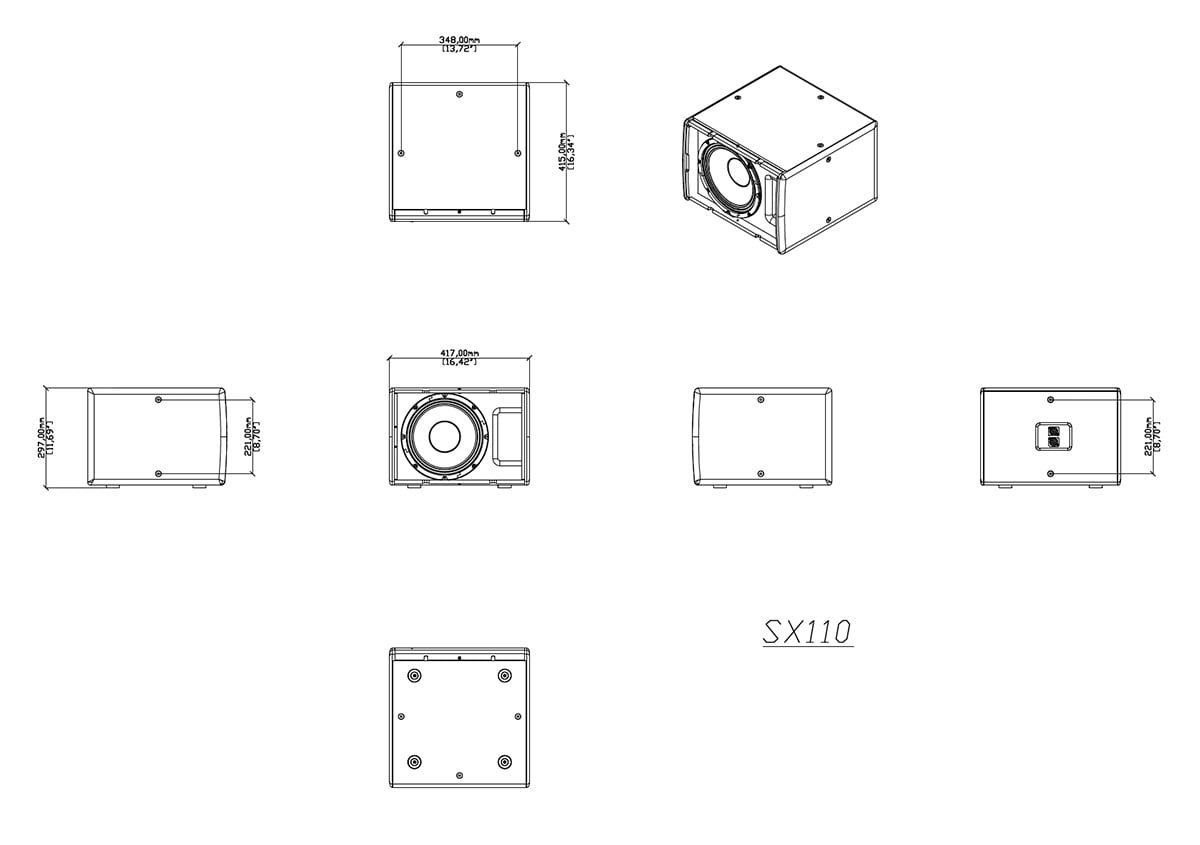

| Dimensions | 417 x 297 x 415 mm (W x H x D), 12 kg |
