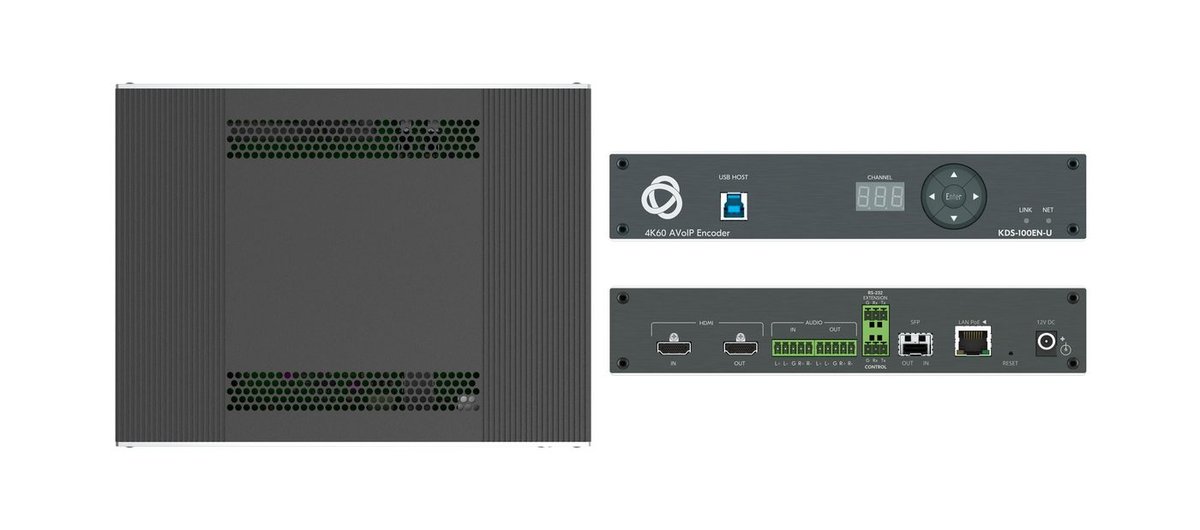

Kramer KDS-100EN-U Open-Standard 4K AVoIP Encoder with Ultra-Low Latency & Dual Streaming

The Kramer KDS-100EN-U is a 4K AVoIP encoder with KVM, streaming an HDMI source onto the network as open-standard H.264 or H.265 while carrying keyboard and mouse back to the host over IP.

It runs a primary 4K@30Hz stream and a secondary 1080p@60Hz stream at the same time, with latency around 40ms. The unit takes HDMI, RS-232, IR transmit and receive, a USB-B 2.0 host connection, and unbalanced stereo, and delivers everything on a single LAN+PoE output. Predefined deployment profiles speed up installation, and security meets HTTPS, 802.1x, and OWASP-10.

Inputs	1 HDMI 4K60 4:2:0; 1 RS-232; 1 IR Tx; 1 IR Rx; 1 USB-B 2.0 Host; Stereo (U)
Outputs	1 LAN+PoE
Function	Open-standard 4K AVoIP encoder with KVM
Codec	H.264 / H.265 open standard
KVM	Keyboard and mouse extension over IP
Dual Streaming	Primary 4K@30Hz plus secondary 1080p@60Hz simultaneously
Latency	Approximately 40 ms
Security	HTTPS, 802.1x, OWASP-10
