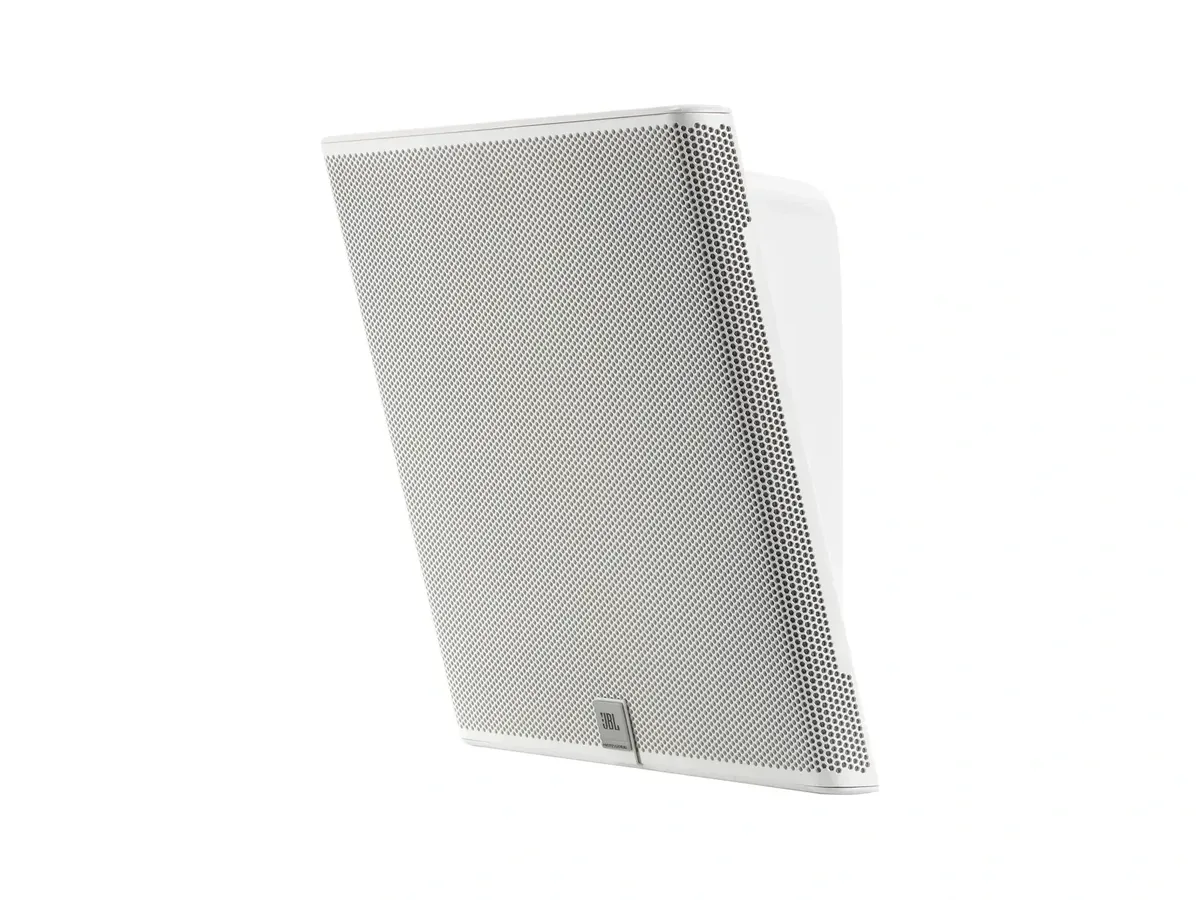

JBL SLP14/T Sleek, Low-Profile On-Wall Loudspeaker
The SLP14/T is a sleek, low-profile on-wall loudspeaker. Nominal coverage is 140 degrees H x 120 degrees V. Frequency range is 70 Hz - 20 kHz (on wall). JBL rates it at 100W Continuous Program (2 hrs) 50W (200W peak) Continous Pink Noise (2 hrs) 30W (120W peak) Continuous Pink Noise (100 hrs). Maximum SPL at 1 m is 108 dB peak (102 dB continuous, 2 hr) @ 1m. Nominal impedance is 8 (at 8 tap setting).
Transformer taps are 70V: 25 W, 12.5 W, 6.3 W, 3.2W 100V: 25 W, 12.5 W, 6.3 W. It measures 286mm W x 263mm H x H100mm D (11.3 x 10.4 x 3.9 in). Net weight is 2.8kg (6.2 lbs). In the box: Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice.
| Type | Sleek, Low-Profile On-Wall Loudspeaker |
|---|---|
| Frequency Range (-10dB) | 70 Hz - 20 kHz (on wall) |
| Frequency Response (+/-3 dB) | 80 Hz - 18 kHz (on wall) |
| Power Rating | 100W Continuous Program (2 hrs) 50W (200W peak) Continous Pink Noise (2 hrs) 30W (120W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity | 85 dB (60 Hz - 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 108 dB peak (102 dB continuous, 2 hr) @ 1m |
| Coverage Angle | 140 degrees H x 120 degrees V |
| Directivity Factor (Q) | 6.9 |
| Directivity Index (DI) | 8.4 dB |
