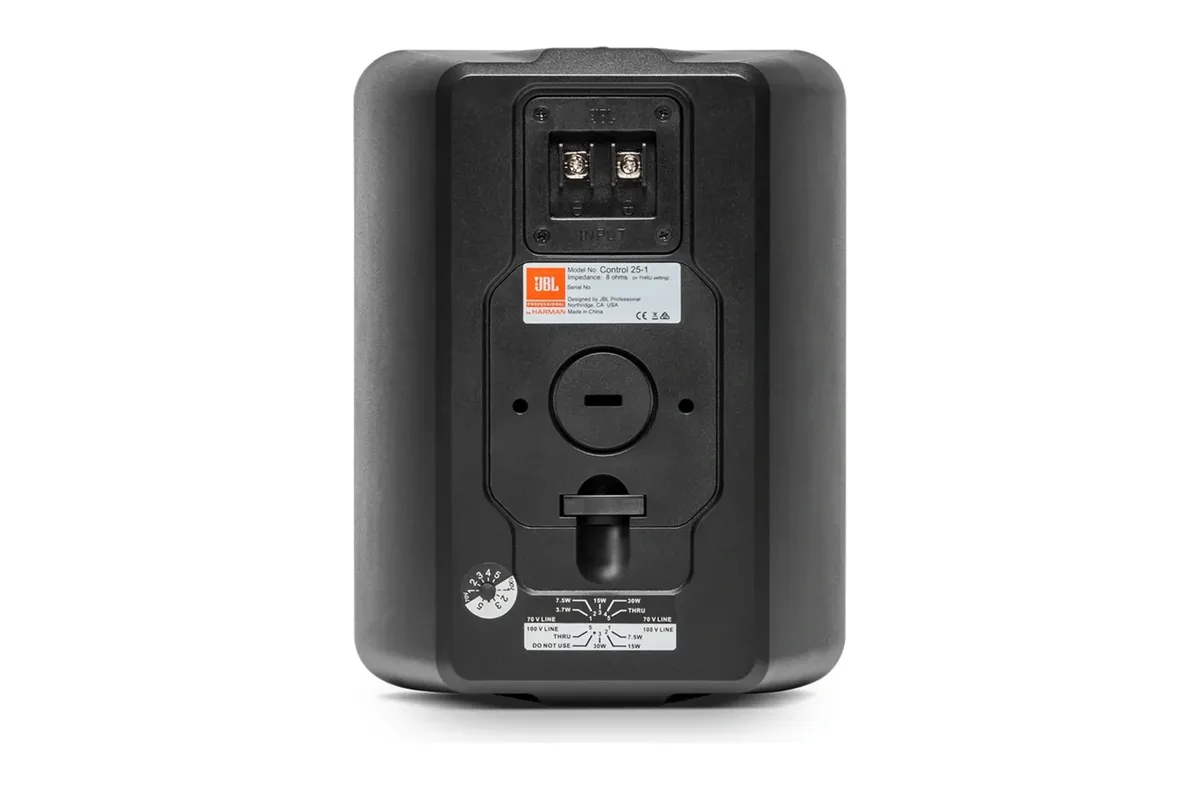

JBL Professional JBL Control 25-1 Two-way 5.25-inch surface-mount loudspeaker, indoor/outdoor

The Control 25-1 is the compact two-way surface-mount box that turns up in retail, restaurants, gyms and theme parks. A 135 mm woven-fibreglass woofer with a butyl rubber surround and a Weather-Edge frame gives 100 by 100 degree coverage and 110 dB continuous average. It runs at 8 ohms in through mode, or off a 70 or 100 V line via a tap switch.

The enclosure is high-impact polystyrene painted in UV-resistant paint, rated IP-44, and IP-55 when fitted with the optional MTC-25WMG-1 WeatherMax grille. The InvisiBall wall-mounting system is included - it aims the cabinet after it is on the wall, which saves a lot of guessing. JBL recommends a protective 60 Hz high-pass at 24 dB per octave. Price shown is per speaker; JBL pair-packs this model.

Type	Two-way 5.25-inch surface-mount loudspeaker, indoor/outdoor
Impedance	8 ohms (through setting)
Power rating	200 W continuous program; 100 W (400 W peak) continuous pink noise
Maximum SPL (1 m)	110 dB continuous average pink noise (116 dB peak)
Sensitivity	90 dB, 1 W / 1 m
Frequency range (-10 dB)	60 Hz - 20 kHz
Frequency response (+/-3 dB)	85 Hz - 17 kHz
Coverage angle	100 degrees H x 100 degrees V
Transformer taps	70 V: 30/15/7.5/3.7 W; 100 V: 30/15/7.5 W
Recommended high-pass	60 Hz, 24 dB/octave
Enclosure	High-impact polystyrene, UV-resistant paint; IP-44 (IP-55 with MTC-25WMG-1)
Mounting	InvisiBall wall-mounting system included
Dimensions (H x W x D)	243 x 188 x 145 mm (9.6 x 7.4 x 5.7 in)
Net weight (each)	3.4 kg (7.5 lb)
