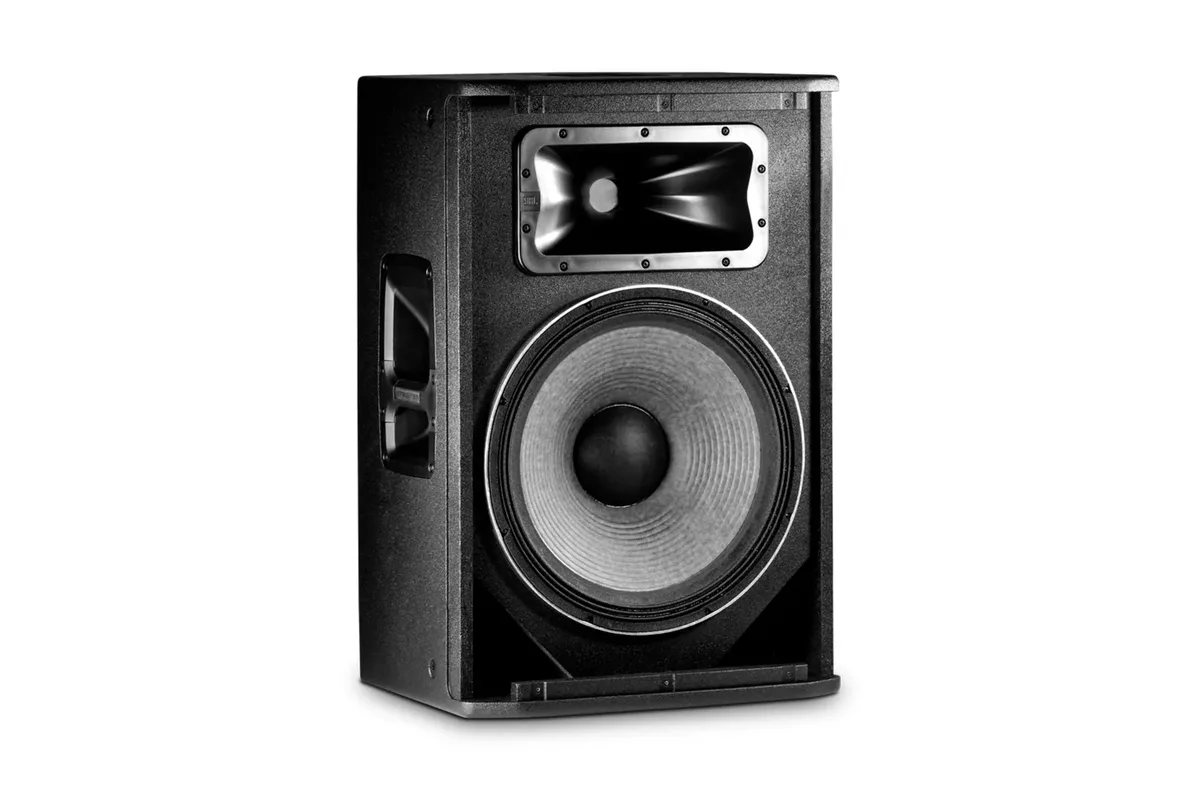

JBL Professional JBL SRX815P Powered 15-inch two-way bass-reflex loudspeaker

The SRX815P is the self-powered 15-inch model in the SRX800 line. A 2275F Differential Drive woofer and a 2432H neodymium compression driver run on 2,000 W peak of Crown amplification, for 137 dB with 90 by 50 degree coverage and low end to 36 Hz at -10 dB.

Amplification is Crown DriveCore Class D and the DSP is fully user-configurable: 20 parametric EQ filters, speaker delay and 50 preset slots, set from the rear LCD or over network control. The back panel is printed in glow-in-the-dark ink for dark stages. Input is a Neutrik combo jack with two XLR outputs for looping. The enclosure is 18 mm 11-ply Finnish birch in black DuraFlex with recessed handles, dual 36 mm pole sockets and twelve M10 points, at 63 lb.

Type	Powered 15-inch two-way bass-reflex loudspeaker
Amplifier design	Class D, 2000 W peak
Maximum SPL (1 m)	137 dB
Frequency range (-10 dB)	36 Hz - 21 kHz
Frequency response (+/-3 dB)	44 Hz - 20 kHz
Coverage pattern	90 x 50 degrees
LF driver	1 x JBL 2275F Differential Drive, 15-inch
HF driver	1 x JBL 2432H compression driver, neodymium, 76 mm voice coil
DSP	20 parametric EQ filters, speaker delay, 50 preset slots
Inputs / outputs	Neutrik quarter-inch / XLR combo input; 2 x XLR output
Enclosure	18 mm 11-ply Finnish birch plywood, black DuraFlex finish
Mounting	Dual 36 mm pole socket, 12 x M10 suspension points
Dimensions (H x W x D)	478 x 458 x 691 mm (18.82 x 18.03 x 27.20 in)
Net weight (each)	28.6 kg (63 lb)
