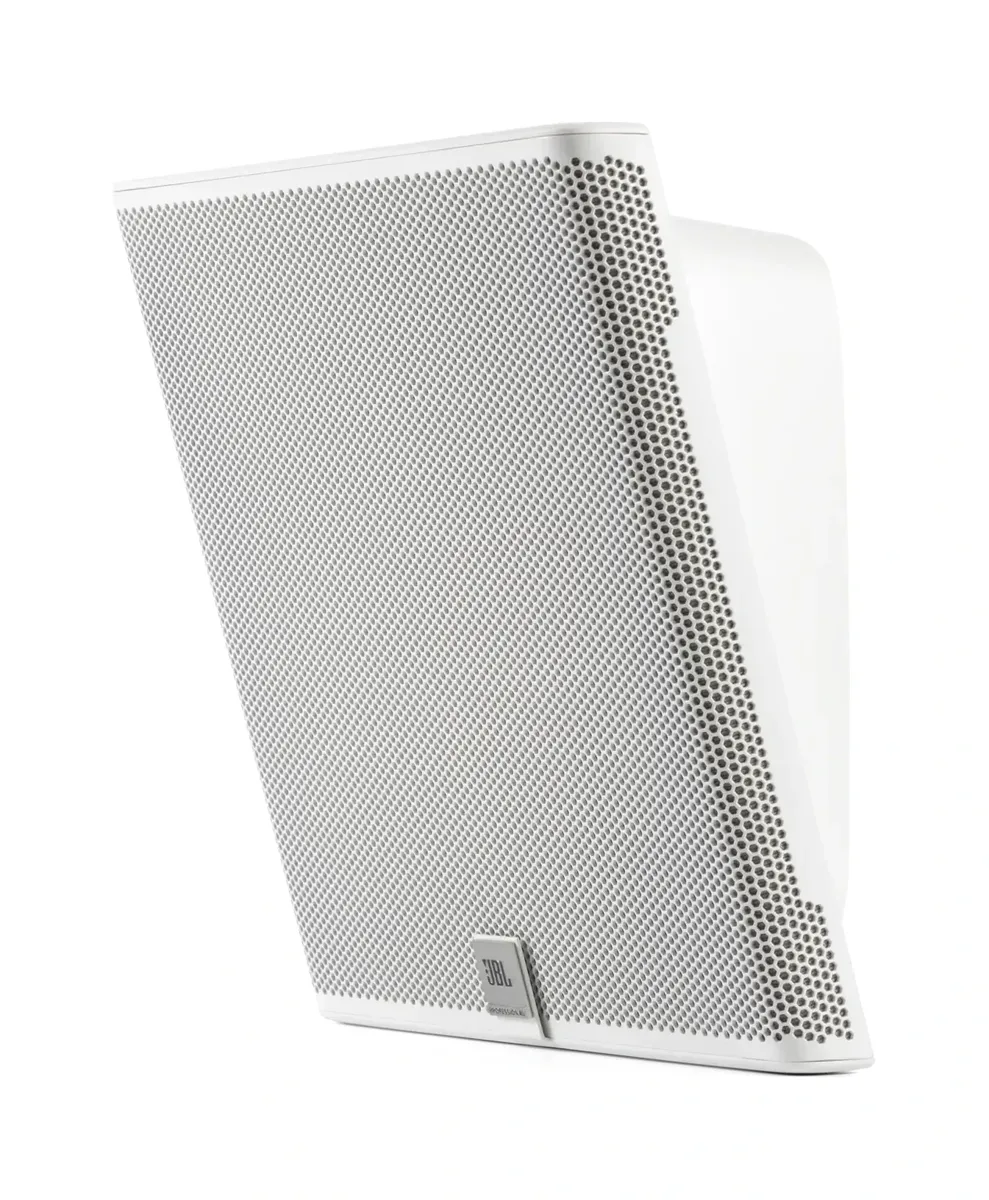

JBL SLP12/T Sleek, Low-Profile On-Wall Loudspeaker
The SLP12/T is a sleek, low-profile on-wall loudspeaker. Nominal coverage is 120 degrees H x 120 degrees V. Frequency range is 74 Hz - 20 kHz. JBL rates it at 80W Continuous Program (2 hrs) 40W (160W peak) Continous Pink Noise (2 hrs) 20W (80W peak) Continuous Pink Noise (100 hrs). Maximum SPL at 1 m is 106 dB peak (100 dB continuous, 2 hr) at 1m. Nominal impedance is 8 (at 8 tap setting).
Transformer taps are 70V: 15 W, 7.5 W, 3.8 W, 1.9W 100V: 15 W, 7.5W, 3.8W. It measures 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in). Net weight is 1.9 kg (4.2 lbs). In the box: Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. Ordering covers Black and White; pick the one you need above and the SKU and price follow your choice.
| Type | Sleek, Low-Profile On-Wall Loudspeaker |
|---|---|
| Frequency Range (-10dB) | 74 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 91 Hz - 18 kHz |
| Power Rating | 80W Continuous Program (2 hrs) 40W (160W peak) Continous Pink Noise (2 hrs) 20W (80W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB (80 Hz - 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 106 dB peak (100 dB continuous, 2 hr) at 1m |
| Coverage Angle | 120 degrees H x 120 degrees V |
| Directivity Factor (Q) | 7.5 |
| Directivity Index (DI) | 8.8 dB |
