EtherWAN IG5 SV Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port Gigabit (Optional 8 x PoE)

EtherWAN IG5 SV Series IEC 61850-3/IEEE 1613 Hardened Managed 24-port Gigabit (Optional 8 x PoE) is built for installations where connectivity is crucial. Port count and media are listed as 10/100/1000BASE-T(X) PoE: 8 ports (PoE models); 10/100/1000BASE-T(X): 0, 8, 16 or 24 ports; 100/1000BASE SFP: 0, 8, 16 or 24 ports; 1G/10G SFP+: 4 ports. Operating temperature is rated at -40 to 75 deg C (-40 to 167 deg F). The housing is metal, rated IP40.

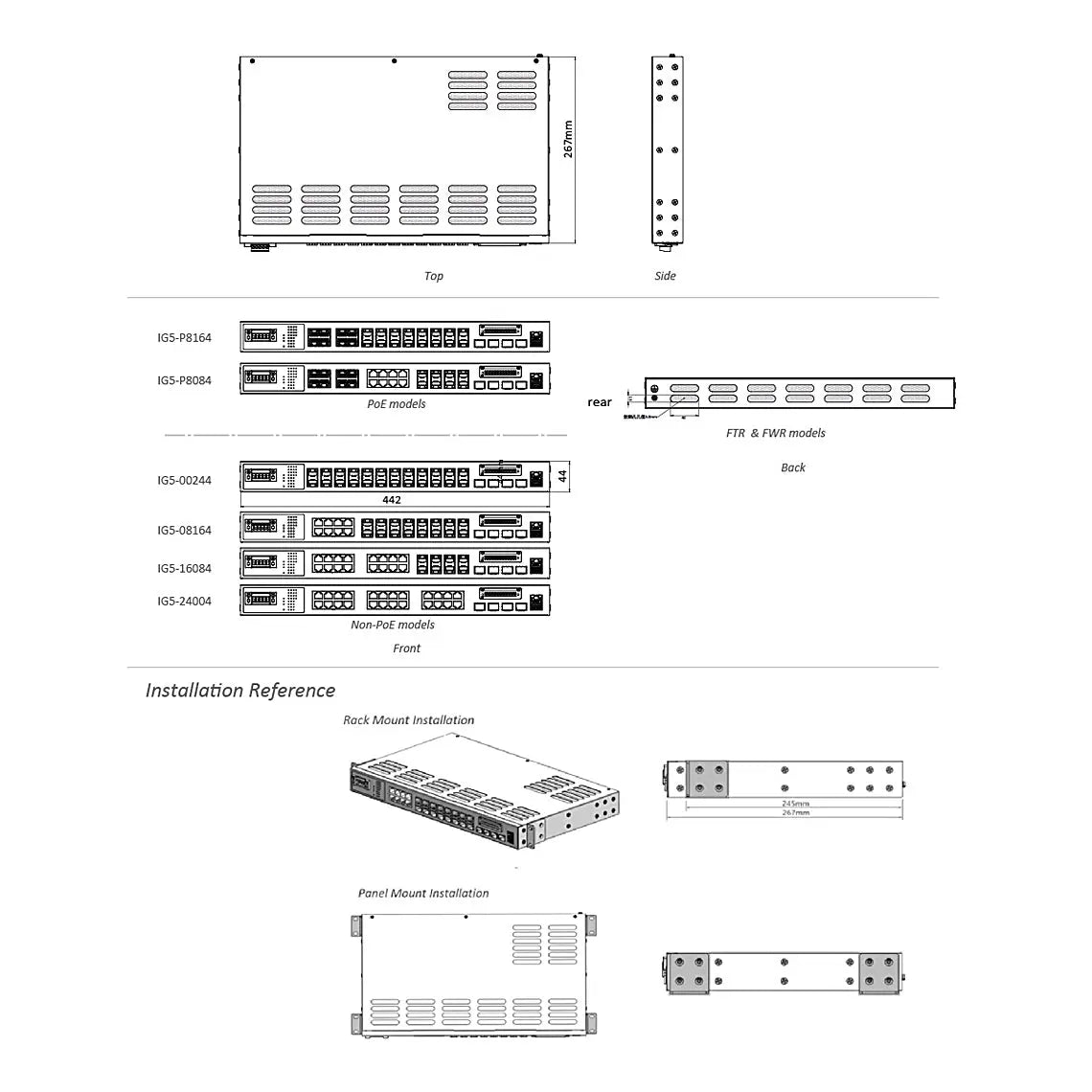

This page carries the 4 orderable part numbers in the family; pick the one you need from the selector and the price and SKU follow it. The models differ by the options listed on each variant. Installation is rack mounting. Power input: 24VDC to 48VDC (Nominal). Specifications above are taken from the EtherWAN datasheet for this family.
