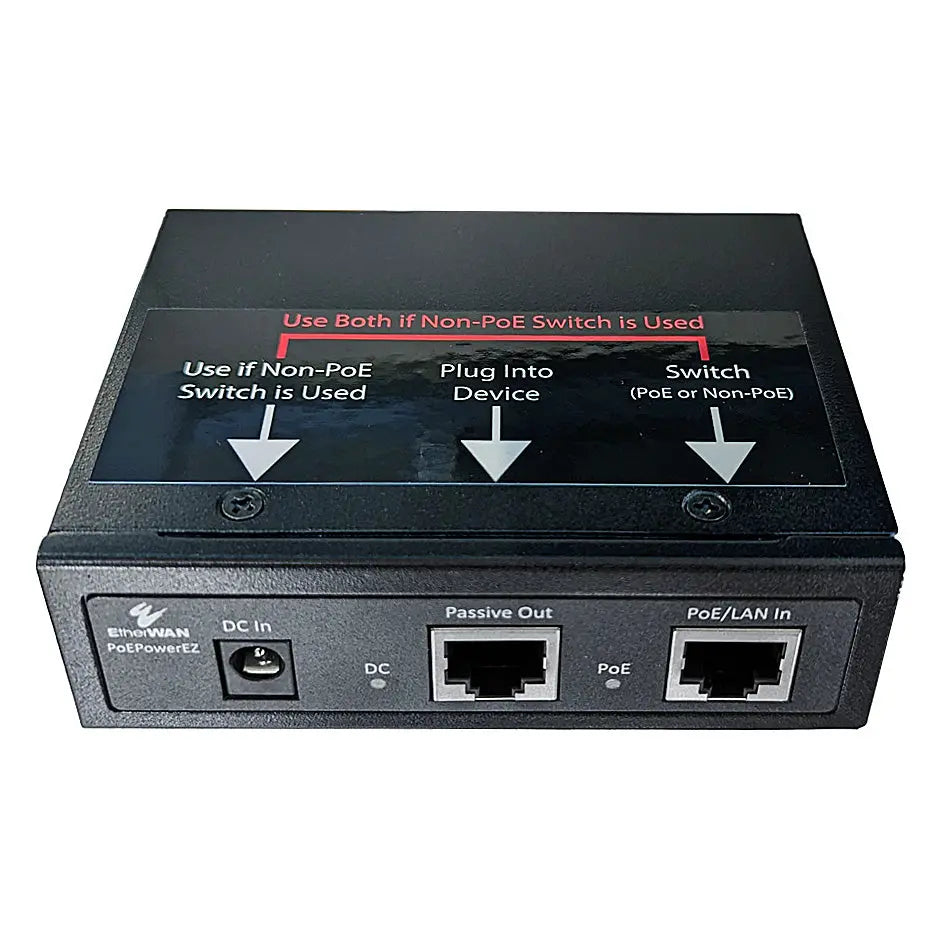

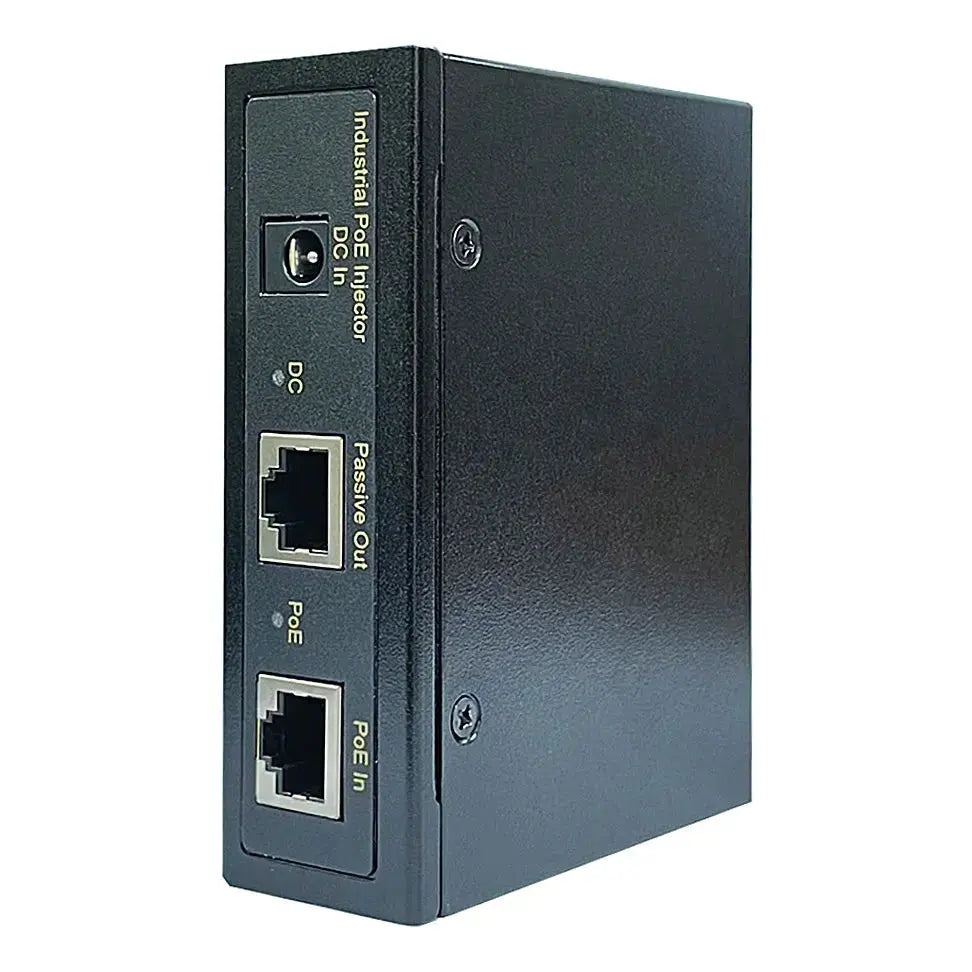

EtherWAN PoEPowerEZ Hardened Gigabit 802.3af/at Active to Passive PoE Converter & Passive Injector

EtherWAN PoEPowerEZ Hardened Gigabit 802.3af/at Active to Passive PoE Converter & Passive Injector puts power on the data pair for a device with no local outlet. Port count and media are listed as 1 x 10/100/1000BASE-T(X), data out; 1 x 10/100/1000BASE-T(X), PoE in. The housing is rugged metal, ip30 protection, rated IP30.

One orderable part number, PoEPowerEZ, listed at the current dealer price. Installation is type wall mounting. Power input: 1.44W @ 24 VDC full load, without PoE. Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet	1 x 10/100/1000BASE-T(X), data out \| 1 x 10/100/1000BASE-T(X), PoE in
Power Input	1.44W @ 24 VDC full load, without PoE
PoE Power Output	Maximum 24 Watts (24VDC, 1A)
Casing Material	Rugged Metal, IP30 Protection
IP Rating	IP30
Dimensions	103.5 x 32 x 81.5 mm
Installation	Type Wall mounting
Operating Temp	-40 to 167 deg F (-40 to 75 deg C)
