EtherWAN EPHX-48-240 Industrial DIN-Rail Power Supply 42-56VDC 240W

EtherWAN EPHX-48-240 Industrial DIN-Rail Power Supply is a switch-mode AC-to-DC converter with an output adjustable from 42V to 56VDC via a front-panel potentiometer, letting an installer dial in extra headroom to compensate for a long cable run. It carries the safety certifications and Class 2 designation for industrial ITE loads.

It runs from -25 to 70 deg C, up to 93% efficient with under 0.3W of no-load draw, and snaps onto a 45mm-wide DIN rail. Built-in protection covers short-circuit, overload, over-voltage and over-temperature conditions. Specifications above are taken from the EtherWAN/Phoenix Contact datasheet for this product.

Input Voltage	100-240VAC
Output	42-56VDC adjustable / 240W
Operating Temperature	-25 to 70 deg C (-13 to 158 deg F)
Efficiency	Up to 93%, under 0.3W no-load draw
Protections	Short-circuit, overload, over-voltage, over-temperature

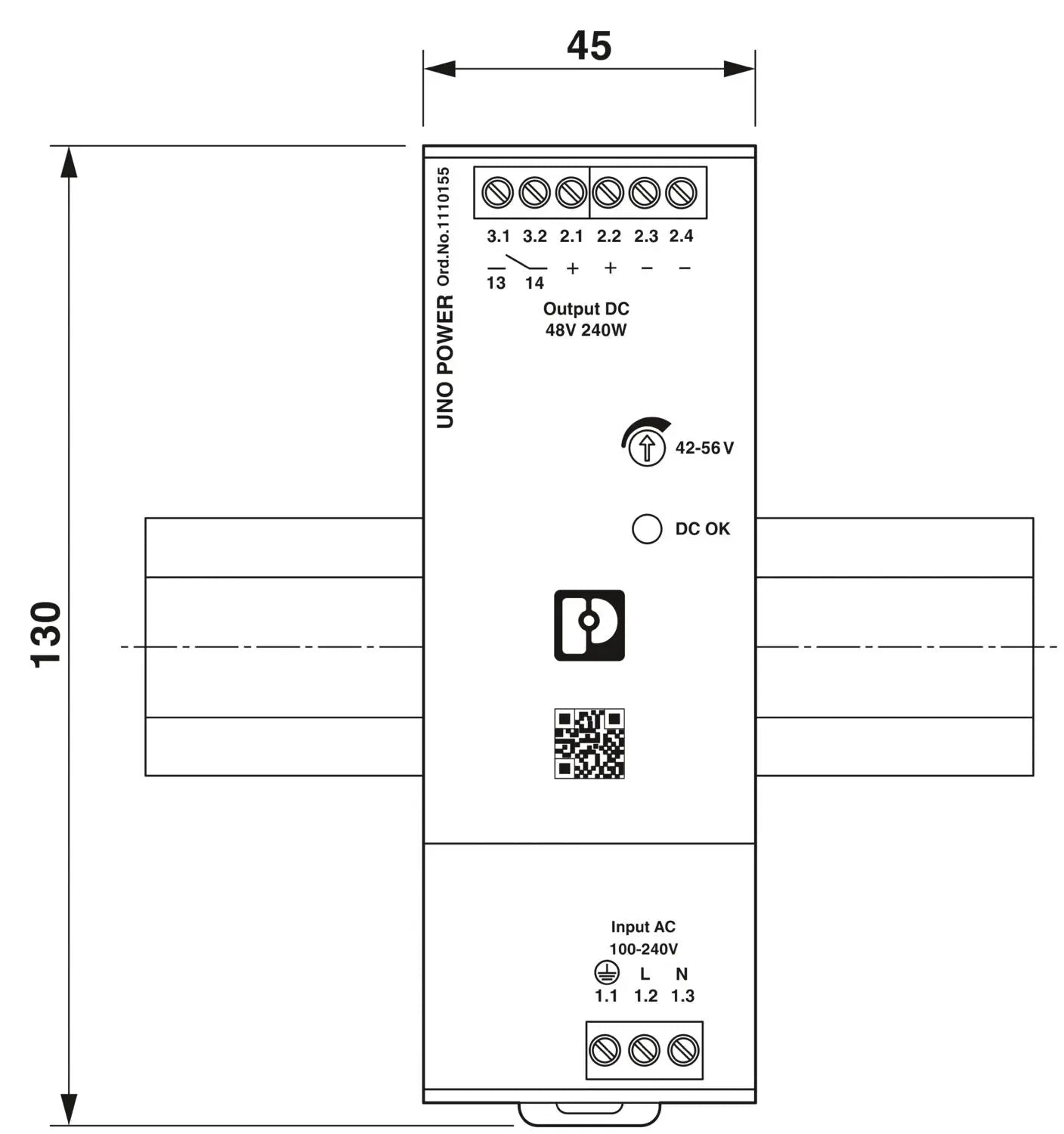

Dimensions	45mm (W) x 130mm (H) x 129mm (D) \| 1.77" x 5.12" x 5.08"
Installation	DIN-rail mounting
