EtherWAN INJ30AT Hardened Gigabit PoE Injector

EtherWAN INJ30AT Hardened Gigabit PoE Injector puts power on the data pair for a device with no local outlet. Port count and media are listed as 1 x 10/100/1000BASE-T(X), connection to network; 1 x 10/100/1000BASE-T(X), PoE connection to device. Operating temperature is rated at -40 to 167 deg F (-40 to 75 deg C). The housing is aluminum, rated IP30.

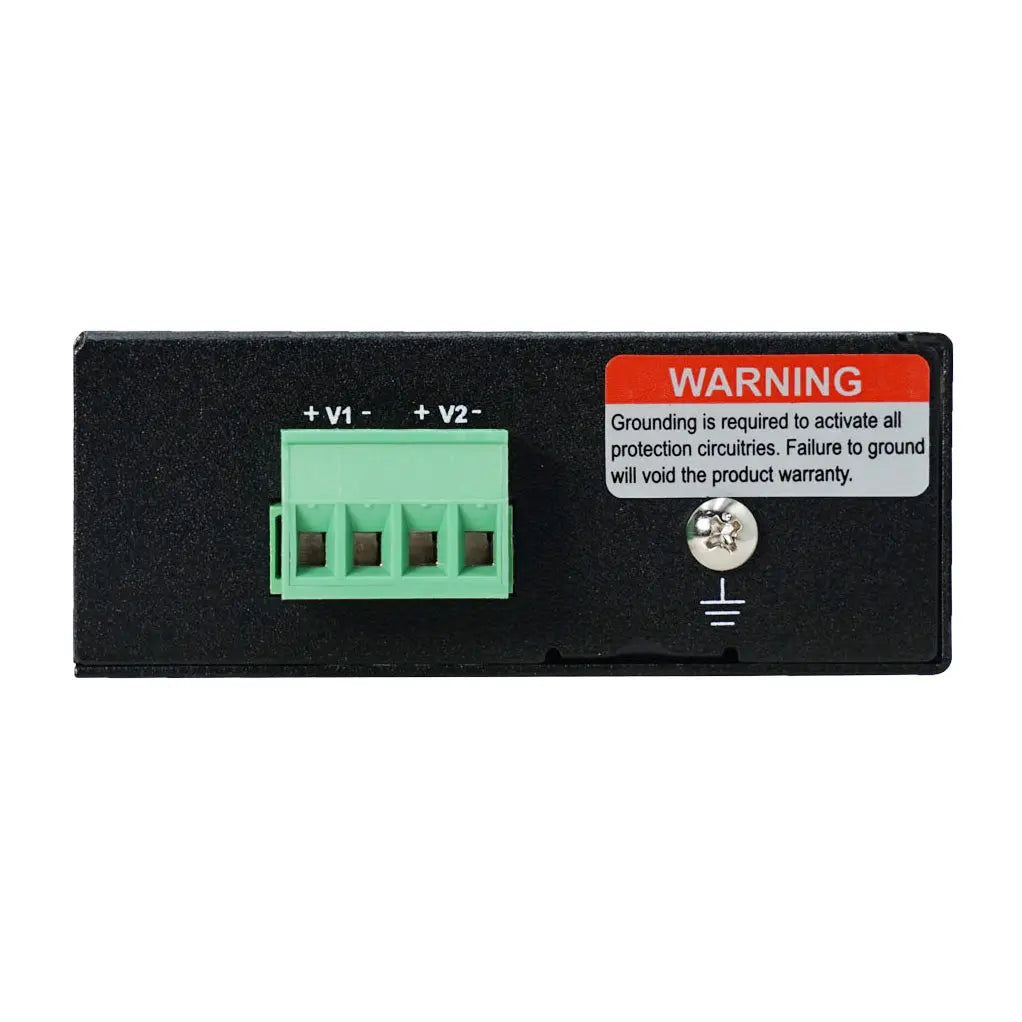

One orderable part number, INJ30AT, listed at the current dealer price. Installation is din-rail or wall mounting. Power input: 24-56VDC Redundant (Terminal block). Specifications above are taken from the EtherWAN datasheet for this family.

Ethernet	1 x 10/100/1000BASE-T(X), connection to network \| 1 x 10/100/1000BASE-T(X), PoE connection to device
Power Consumption	1W max @ 48VDC, without PoE
PoE Power Output	30W @ 56VDC input
Casing Material	Aluminum
IP Rating	IP30
Dimensions	1.26" x 3.21" x 4.07"(W x D x H) \| 32 x 81.5 x 103.5mm
Weight	1.5lbs (0.68kg)
Installation Type	DIN-rail or wall mounting
